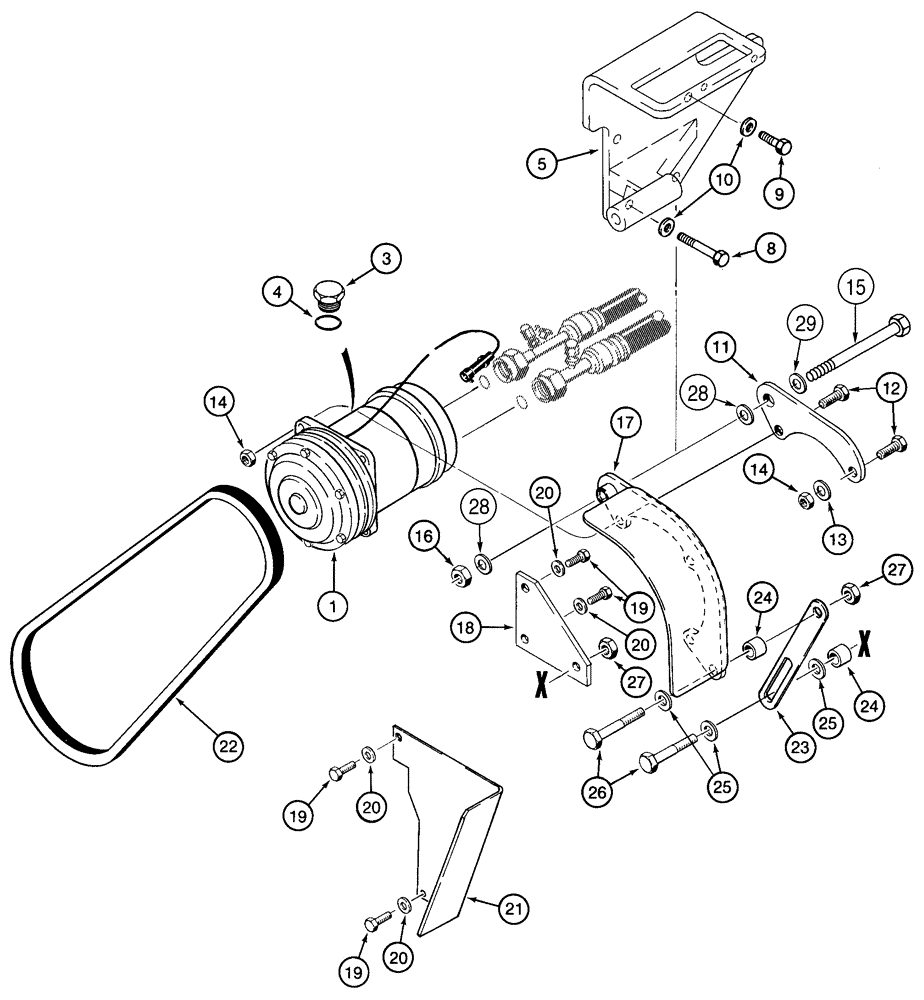

Запчасти Case 921C (09-67) - AIR CONDITIONING - COMPRESSOR MOUNTING (09) - CHASSIS

All Models JEE0126216-

1шт.

1990760C2

COMPRESSOR

Air Conditioning, Incl. 1 - 4

1шт.

86983967R

REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley

921C S/N JEE0155000 & BEFORE (1/99), Reman for new P/N 1990760C2

1шт.

86983967C

CORE-COMPRESSOR

921C S/N JEE0155000 & BEFORE (1/99), Reman for new P/N 1990760C2

1шт.

1990760C2C

CORE-COMPRESSOR

Return Number, AIR COMPRESSOR - for N.A. Only

1шт.

1

NSS

NOT SOLD SEPARAT

Compressor, Component Parts Not Serviced Separately

1шт.

2

138886A2

CLUTCH

Compressor, Not Shown

1шт.

3

A49667

PLUG

1шт.

4

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

5

431738A1

BRACKET

Compressor Mounting

1шт.

8

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

9

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

10

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

4шт.

11

90-3554T1

SUPPORT

1шт.

12

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

13

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

14

829-2310

FLANGE NUT,M10 x 1.5, Flg, Cl 10

5шт.

15

827-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

1шт.

16

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

17

431735A1

BRACKET

1шт.

18

90-7590T1

LARGE PLATE

PLATE, LARGE

1шт.

19

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

20

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

21

431834A1

GUARD

1шт.

22

1250587C1

V-BELT,0.50" W

Compressor Drive

1шт.

23

90-7587T1

ADJUSTING PLATE

1шт.

24

431737A1

SPACER

27/64 x 43/64 x 45/64 in

2шт.

25

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

26

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

27

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

28

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

29

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

1шт.

Note: See your authorized Cummins dealer for the air conditioning drive pulley

1шт.

Nota : Consulter le concessionnaire Cummins pour la poulie menante de climatisation.

1шт.

Nota: Consultar con su concesionario autorizada Cummins para la polea de transmisión del aire acondicionado.

1шт.
