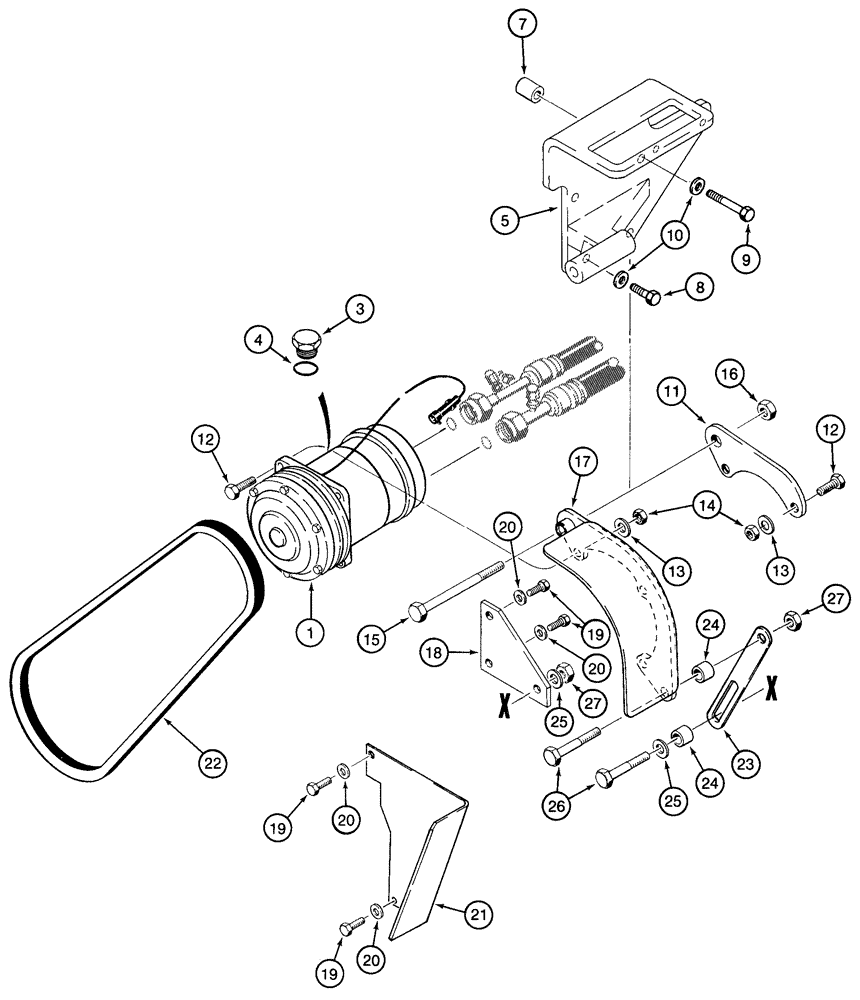

Запчасти Case 921C (09-66) - AIR CONDITIONING - COMPRESSOR MOUNTING (09) - CHASSIS

All Models -JEE0126215

1шт.

1990760C1

COMPRESSOR

Air Conditioning, Incl. 1 - 4, No Longer Used, Order 1990760C2

1шт.

86983967R

REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley

921C S/N JEE0155000 & BEFORE (1/99), Reman for new P/N 1990760C1

1шт.

86983967C

CORE-COMPRESSOR

Return Number

1шт.

1990760C2

COMPRESSOR

Air Conditioning, Incl. 1 - 4, Replaces 1990760C1

1шт.

86983967R

REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley

921C S/N JEE0155000 & BEFORE (1/99), Reman for new P/N 1990760C2

1шт.

86983967C

CORE-COMPRESSOR

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Compressor, Component Parts Not Serviced Separately

1шт.

2

138886A1

CLUTCH

Compressor, Not Shown, Used With 1990760C1

1шт.

2

138886A2

CLUTCH

Compressor, Not Shown, Used With 1990760C2

1шт.

3

A49667

PLUG

1шт.

4

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

5

90-8444T1

SUPPORT

Compressor Mounting

1шт.

7

90-7586T1

SPACER

27/64 x 43/64 x 45/64 in, Replaces 90-7181T1

2шт.

8

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

9

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

10

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

11

90-3554T1

SUPPORT

1шт.

12

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

5шт.

13

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

5шт.

14

825-1410

NUT,M10, Cl 8

5шт.

15

827-12140

BOLT,Hex, M12 x 1.75 x 140mm, Cl 10.9

M12 x 140; 10.9

1шт.

16

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

17

90-7589T2

SUPPORT

1шт.

18

90-7590T1

LARGE PLATE

PLATE, LARGE

1шт.

19

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

20

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

21

90-7311T1

PROTECTOR

1шт.

22

1250587C1

V-BELT,0.50" W

Compressor Drive

1шт.

23

90-7587T1

ADJUSTING PLATE

1шт.

24

90-7586T1

SPACER

27/64 x 43/64 x 45/64 in

2шт.

25

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

26

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

2шт.

27

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

Note: See your authorized Cummins dealer for the air conditioning drive pulley

1шт.

Nota : Consulter le concessionnaire Cummins pour la poulie menante de climatisation.

1шт.

Nota: Consultar con su concesionario autorizada Cummins para la polea de transmisión del aire acondicionado.

1шт.
