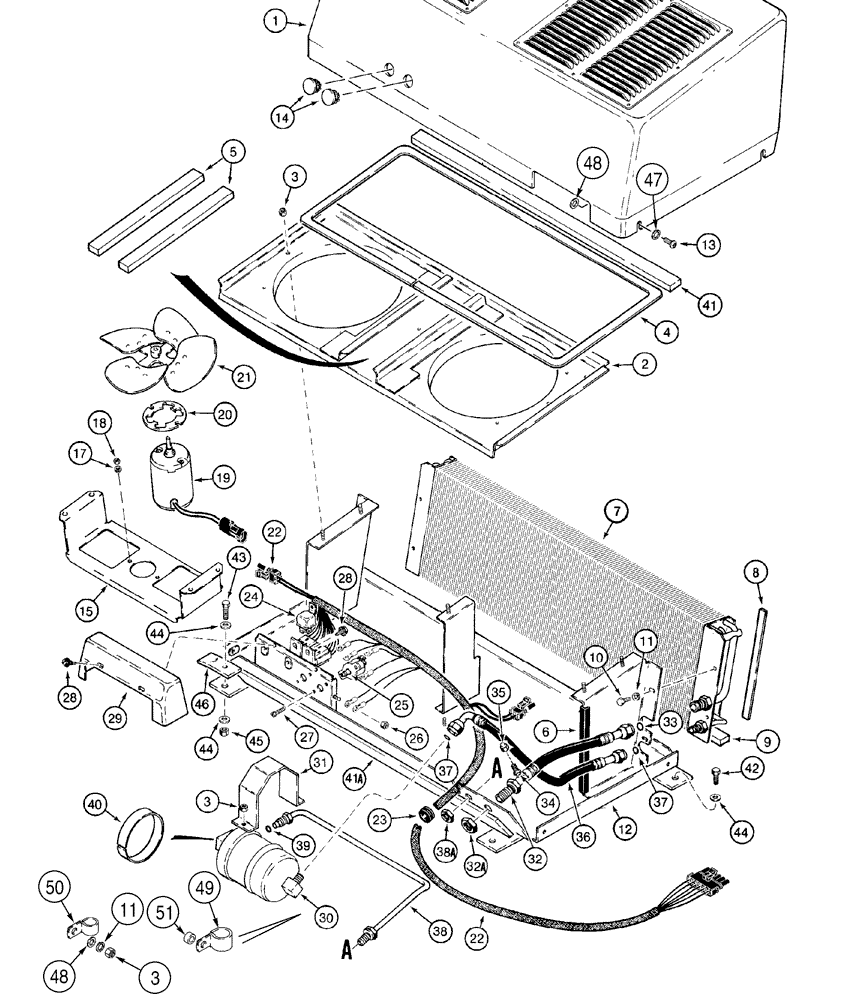

Запчасти Case 921C (09-65) - AIR CONDITIONING - CONDENSER (09) - CHASSIS

178301A2

CONDENSER

Assembly, Air Conditioning, Consists Of 1 - 41A, Replaces 178301A1, See Figure 09-63

1шт.

1

178303A1

COVER ASSY

Condenser

1шт.

2

1974863C2

PROTECTOR

1шт.

3

425-104

NUT,1/4"-20, Cl 5

16шт.

4

1977898C1

SEAL

2032 mm (80 in), Shroud Perimeter, Cut From 198573C1

1шт.

5

1977899C1

SEAL

1045 mm (41-1/8 in), Shroud Baffle, Cut From 198573C1

2шт.

6

1327979C1

MOLDING

152 mm (6 in), Cut From 1330108CX

1шт.

7

97213C2

CONDENSER

Air Conditioning

1шт.

8

1977901C1

SEAL

227 mm (9 in), Condenser Flange, Cut From 198573C1

2шт.

9

1977900C1

SEAL

787 (31 in), Lower Condenser, Cut From 1977902CX

1шт.

10

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

4шт.

11

492-11025

LOCK WASHER,1/4"

5шт.

12

407354A1

BASE

Support

1шт.

13

463-1258

SCREW,Hex Hd, 1/4"-20 x 1/2"

4шт.

14

205-104

HOLE PLUG BUTTON,1"

2шт.

15

137511A1

GUARD

2шт.

17

492-11010

LOCK WASHER,#10

4шт.

18

225-14210

NUT,#10-32

4шт.

19

1977427C2

MOTOR, ELECTRIC

24V

2шт.

19

1977427C2R

REMAN-ELECTRIC MOTOR

921C, SN JEE0155000 & Before

2шт.

19

1977427C2C

CORE-ELECTRIC MOTOR

Return Number

2шт.

20

138897A1

SPACER

2шт.

21

1977731C1

FAN

2шт.

22

137333A1

HARNESS

Condenser

1шт.

23

248-1243

GROMMET,1/2" ID x 13/16" Groove Dia, Diag Cut

3шт.

24

A186288

RELAY

24V

2шт.

25

A187825

RELAY

10A

2шт.

26

225-14210

NUT,#10-32

1шт.

27

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

4шт.

28

459-1108

SCREW,Slotted Pan Hd, #10-32 x 1/2"

4шт.

29

1977847C1

COVER

Relay

1шт.

30

1990758C2

RECEIVER-DRYER

1шт.

31

1974861C1

SUPPORT

1шт.

32

407353A1

HOSE ASSY.

399 mm (15-3/4 in), Supply, Attaches To Compressor Hose, Incl. 32A - 34

1шт.

32a

NSS

NOT SOLD SEPARAT

Nut, Special

1шт.

33

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

34

1250594C2

CORE

Replaces 1250594C1

1шт.

35

178460A1

PLUG

1шт.

36

1954627C3

HOSE

500 mm (19-3/4 in), Condenser To Receiver-Drier, Incl. 37

1шт.

37

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

38

407352A1

TUBE

Return, Incl. 38A, 39

1шт.

38a

425-1510

JAM NUT,Jam, 5/8"-18, G5

1шт.

39

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

40

180623C1

SEAL

271 mm (10-11/16 in), Receiver-Drier, Cut From 198530C1

1шт.

41

1977900C1

SEAL

787 (31 in), Condenser Cover, Cut From 1977902C1

1шт.

41a

NSS

NOT SOLD SEPARAT

Seal, Foam, Cut From 407356A1

1шт.

42

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

43

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

44

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

6шт.

45

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

46

L125787

LARGE PLATE

PLATE, LARGE Condenser Cover To Hood, If Used

2шт.

47

493-41026

LOCK WASHER,Ext Tooth, 1/4"

4шт.

48

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

5шт.

49

407359A1

CLAMP

1/2

1шт.

50

407360A1

CLAMP

3/8

1шт.

51

407358A1

SPACER

3/4

1шт.
