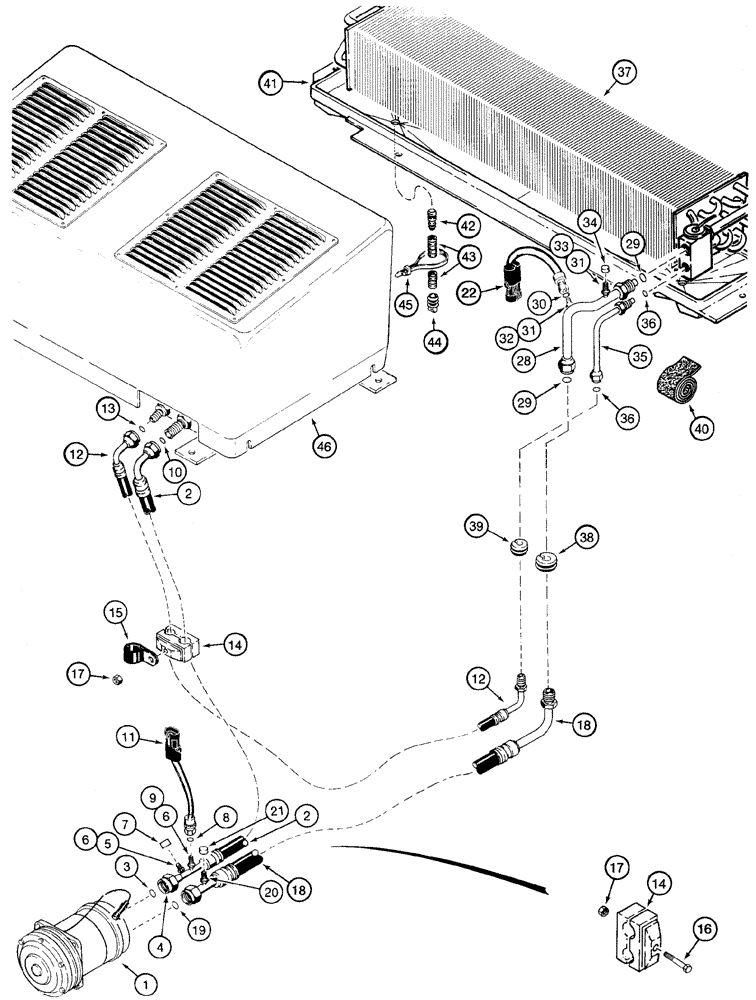

Запчасти Case 921C (09-62) - AIR CONDITIONING (09) - CHASSIS

Compressor to Condenser and Evaporator Core

1шт.

Models With Engine No. 186424A3

1шт.

1

1990760C1

COMPRESSOR

Air Conditioning, Component Parts Not Serviced Separately, See Figure 09-66, No Longer Used, Order 1990760C2

1шт.

86983967R

REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley

921C S/N JEE0155000 & BEFORE (1/99), Reman for new P/N 1990760C1

1шт.

86983967C

CORE-COMPRESSOR

Return Number

1шт.

1

1990760C2

COMPRESSOR

Air Conditioning, Component Parts Not Serviced Separately, See Figure 09-66, Replaces 1990760C1

1шт.

86983967R

REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley

921C S/N JEE0155000 & BEFORE (1/99), Reman for new P/N 1990760C2

1шт.

86983967C

CORE-COMPRESSOR

Return Number

1шт.

2

332311A1

HOSE ASSY.

1735 mm (68-5/16 in), Supply, Compressor To Condenser, Incl. 3 - 10

1шт.

3

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16, At Compressor Outlet Port

1шт.

4

NSS

NOT SOLD SEPARAT

Nut

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting

1шт.

6

1250594C1

CORE

2шт.

7

122554A1

CAP

1шт.

8

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

9

122081A1

FITTING,M10 x 1.25 x 26.43mm L

1шт.

10

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16, At Condenser Inlet Port

1шт.

11

232948A1

SWITCH, A/C HIGH PRE

1шт.

12

233051A1

HOSE ASSY.

2150 mm (84-3/4 in), Return, Condenser To Evaporator Core, Incl. 13

1шт.

13

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

14

L115095

CLAMP

Double

3шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

16

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

2шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

18

233052A1

HOSE ASSY.

2280 mm (89-3/4 in), Evaporator Core To Compressor Inlet Port, Incl. 19 - 21

1шт.

19

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16, At Compressor Inlet Port

1шт.

20

1250594C1

CORE

1шт.

21

122553A1

CAP

1шт.

22

122579A1

SWITCH, A/C LOW PRES

Low

1шт.

28

104399A1

TUBE

Upper, Incl. 29 - 34

1шт.

29

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

30

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

31

1250594C2

CORE

Replaces 1250594C1

2шт.

32

NSS

NOT SOLD SEPARAT

Fitting

1шт.

33

NSS

NOT SOLD SEPARAT

Fitting

1шт.

34

122553A1

CAP

1шт.

35

104400A1

TUBE,0.375" OD, 115, 53 mm Length

Lower, Incl. 36

1шт.

36

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

37

233424A1

HEATER

Heating and Air Conditioning, See Figure 09-60

1шт.

38

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

Upper Tube

1шт.

39

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

Lower tube

1шт.

40

83822C1

TAPE

610 mm (24 in), Air Conditioning Core Tubes, Valve, And Hoses, Cut From 1954475C1

1шт.

41

1339577C3

PAN

Condensation, See Figure 09-60, Drain Hose To Housing

1шт.

42

1250522C3

FITTING

2шт.

43

1977334C1

HOSE

610 mm (24-1/8 in), Drain, From Condensation Pan, Cut From 198091C1

2шт.

44

109239C2

CHECK VALVE

2шт.

45

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

4шт.

46

178301A1

ASSEMBLY

Condenser, See Figure 09-63, No Longer Used, Order 178301A2

1шт.

46

178301A2

CONDENSER

Assembly, See Figure 09-65, Replaces 178301A1

1шт.
