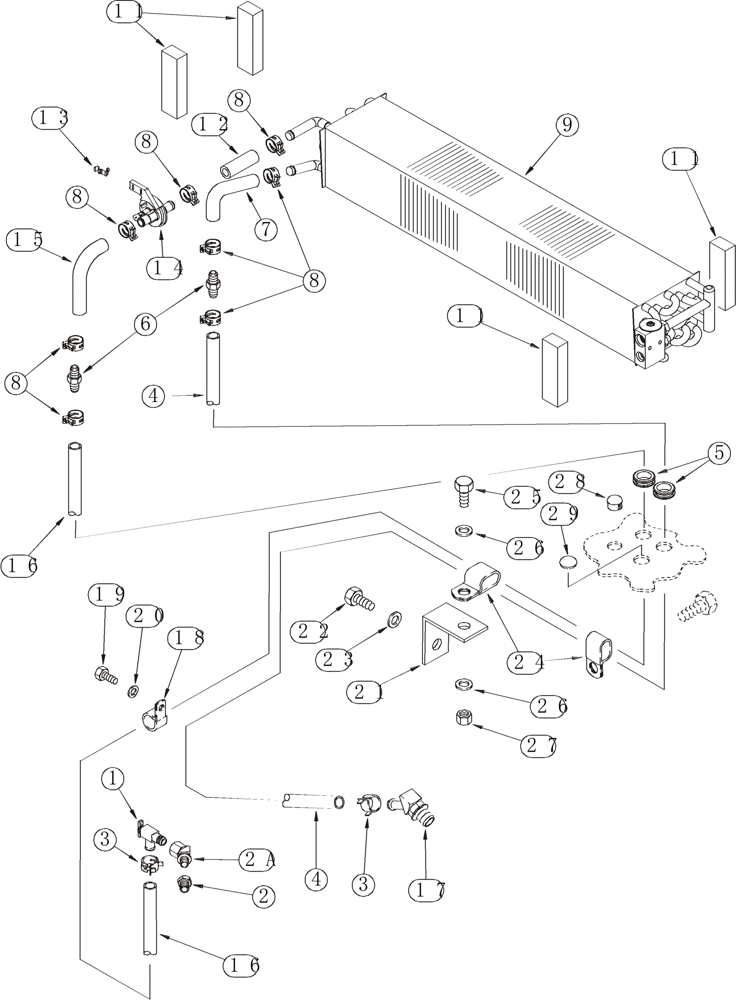

Запчасти Case 921C (09-61) - HEATING SYSTEM (09) - CHASSIS

1

301803R1

SHUT-OFF VALVE

1шт.

2

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

1шт.

2a

217-1087

ELBOW,45 Degree, 3/8"-18 Female x 3/8"-18 Male

Europe Only

1шт.

3

1954736C1

HOSE CLAMP,#24

2шт.

4

1327782C2

LARGE HOSE,15.50 mm ID x 3302.00 mm

HOSE,LARGE Supply, With white stripe, Cut from 97252CX

1шт.

5

L116914

GROMMET

Heater Hoses

2шт.

6

1301342C1

FITTING

2шт.

7

233213A1

HEATER HOSE,15.00 mm ID x 160.00 mm

Supply, Special

1шт.

8

1954736C1

HOSE CLAMP,#24

8шт.

9

233424A1

HEATER

Assembly, Heating and Air Conditioning, See Figure 09-60, 6 - 9

1шт.

10

234325A1

HEATER

Models With Heater Only, Not Shown

1шт.

11

1340075C2

SEAL

130 mm (5-1/8 in), Core End, Cut From 1999750C1

4шт.

12

R54967

HEATER HOSE,15.50 mm ID x 70.00 mm

Return, Cut from 97252CX

1шт.

13

1954626C1

SPRING CLIP

Heater Cable Retaining

1шт.

14

1331087C1

HEATER VALVE

1шт.

15

233224A1

HEATER HOSE,15.00 mm ID x 174.00 mm

Return, Special

1шт.

16

1327781C2

HOSE,15.50 mm ID x 2921.00 mm

Return, Cut from 97252CX

1шт.

17

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

18

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

19

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

21

L129444

SUPPORT

1шт.

22

627-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd

1шт.

23

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

24

L111928

CLAMP

Double Tube

2шт.

25

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

27

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

28

353-411

PLUG,Dome, 1.000" hole, Nylon

If used

1шт.

29

192280

HOLE PLUG BUTTON,1 1/4"

1-1/4 ID, If Used

1шт.

26

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.
