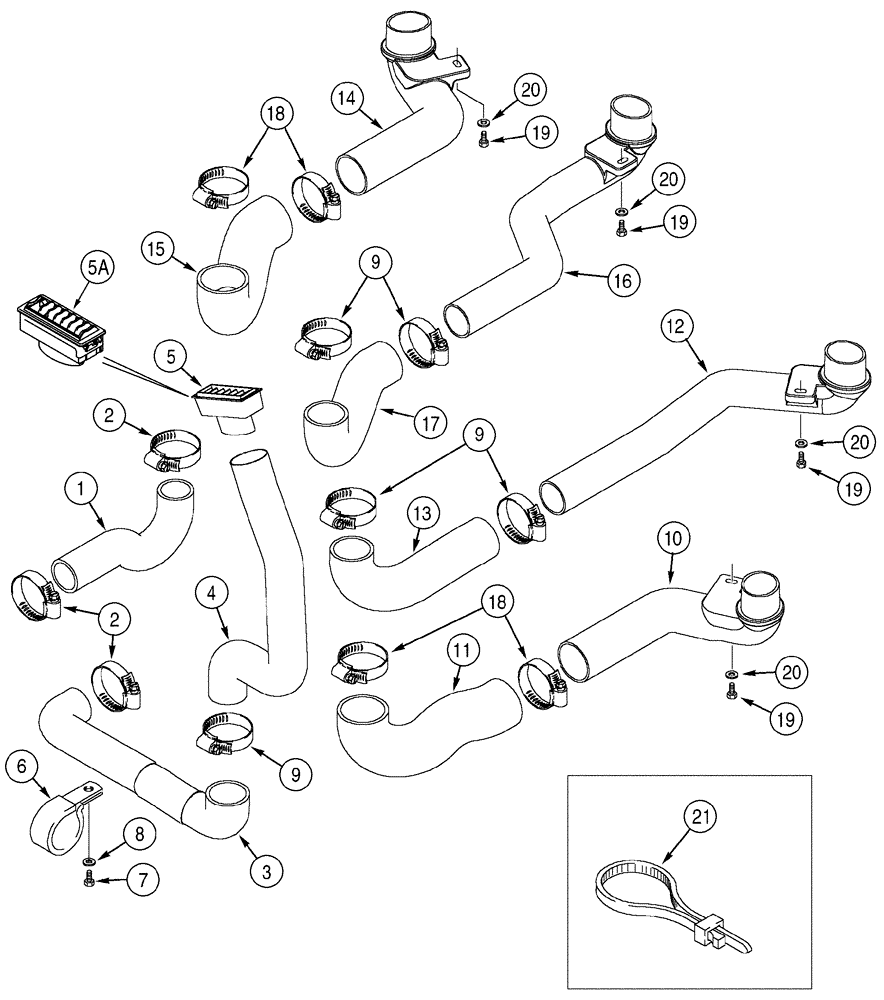

Запчасти Case 921C (09-59) - CAB - HEATER AND AIR CONDITIONING DUCTS (09) - CHASSIS

1

275648A1

AIR DUCT

Center Rear, At Floor

1шт.

2

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

2-1/16 - 3

3шт.

3

275646A1

AIR DUCT

Right Hand Rear, Lower

1шт.

4

275655A1

AIR DUCT

Right Hand Rear, Upper

1шт.

5

1971238C1

VENT

Rear Window, If Used

1шт.

5a

365189A1

VENT

Rear Window, Gray, If Used

1шт.

5a

399229A1

DIFFUSER

Rear Window, Tan, If Used

1шт.

6

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

1шт.

7

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

9

214-1444

HOSE CLAMP,58.6mm - 82.5mm

5шт.

10

257880A1

AIR DUCT

Front Outer, Right Hand

1шт.

11

226561A1

AIR DUCT

Front Outer, Right Hand, At Floor

1шт.

12

257879A1

AIR DUCT

Front Inner, Right Hand

1шт.

13

275494A1

AIR DUCT

Front Inner, Right Hand, At Floor

1шт.

14

257877A1

DUCT

Front Outer, Left Hand, No Longer Used, Order 383688A1

1шт.

14

383688A1

AIR DUCT

Front Outer, Left Hand, Replaces 257877A1

1шт.

15

226563A1

AIR DUCT

Front Outer, Left Hand, At Floor

1шт.

16

257876A1

DUCT

Front Inner, Left Hand

1шт.

17

275493A1

DUCT

Front Inner, Left Hand, At Floor

1шт.

18

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

4шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

19

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.
