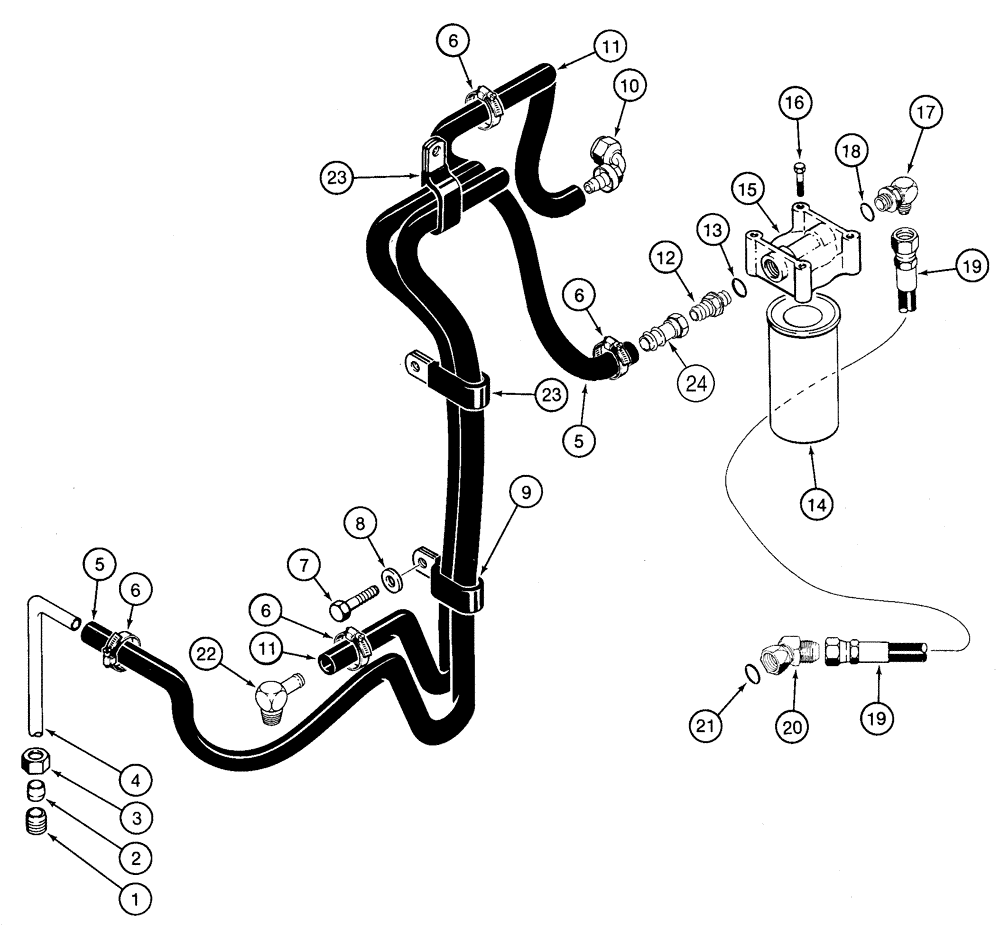

Запчасти Case 921C (03-03) - FUEL LINES - FILTER, FUEL (03) - FUEL SYSTEM

All Models -JEE0126215

1шт.

222-649

FITTING,5/8"-24 x 1/2" NPT, Comp

1/2 tube OD x 1/2 PT, Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

222-656

SLEEVE

1/2 tube OD

1шт.

3

222-666

NUT,5/8"-24, 45 Degree Fl, Comp

1/2 tube OD x 11/16

1шт.

4

L128379

FUEL TUBE,12.7 mm OD x 575, 64 mm L

1шт.

5

104082A1

FUEL HOSE,12.70 mm ID x 1610.00 mm , SAE 30R2

Fuel Supply

1шт.

6

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

7

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

9

L101181

CLAMP,0.75" D Clamping pipes x 2

Double

1шт.

10

L129053

ELBOW

1шт.

11

L128885

FUEL HOSE

1170 mm (46-1/8 in), Fuel Return

1шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Incl. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

90-3941T1

SEPARATOR

Fuel

1шт.

15

103796A1

SUPPORT

1шт.

16

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

17

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or, Incl.18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

103794A1

FUEL HOSE,15.90 mm ID x 394.00 mm

Fuel Injector to Fuel Filter

1шт.

20

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

Incl. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

217-335

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

1/2 stem x PT

1шт.

23

L101181

CLAMP,0.75" D Clamping pipes x 2

Double, Use Existing Hardware

2шт.

24

31-3129

ADAPTER

7/8

1шт.
