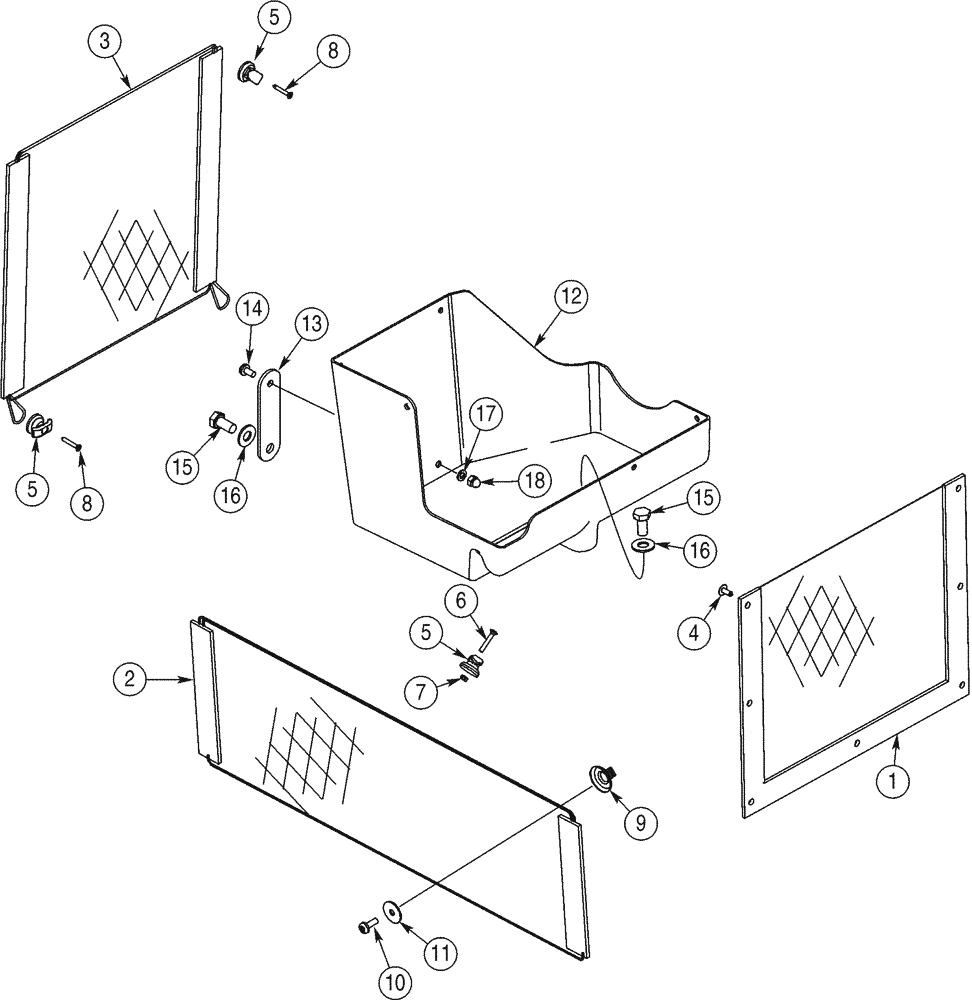

Запчасти Case 921C (09-57) - CAB - STORAGE COMPARTMENTS (09) - CHASSIS

All Models JEE0126216-

1шт.

1

433303A1

NET

Storage, Right Hand

1шт.

2

433309A1

NET

Storage, Cab Rear

1шт.

3

440034A1

NET

Storage, Cab Door

1шт.

4

369929A1

FASTENER

7шт.

5

443437A1

HOOK

7шт.

6

842-1425

SCREW,Phillips Drive, Oval HD, M4 x 25mm, Cl 4.8

3шт.

7

824-1404

NUT,M4, Cl 5

3шт.

8

265-17316

SELF-TAP SCREW,Phillips Drive, Oval HD, #6 - 20 x 1"

4шт.

9

359037A1

HOOK

4шт.

10

297850A1

SCREW,Cross Pan Hd, M6 x 16

4шт.

11

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

12

433230A1

TRAY

1шт.

13

445354A1

STRAP

Tray

1шт.

14

1270742C1

PREV TORQUE BOLT,Cross Rec Pan Hd, M6 x 1 x 12mm

1шт.

15

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

17

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

M6

1шт.

18

834-502

CROWN NUT,Crown, M6, Cl8

1шт.

16

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.
