Запчасти Case 921C (09-50) - COVERS - CONSOLE AND WRIST SUPPORT (09) - CHASSIS

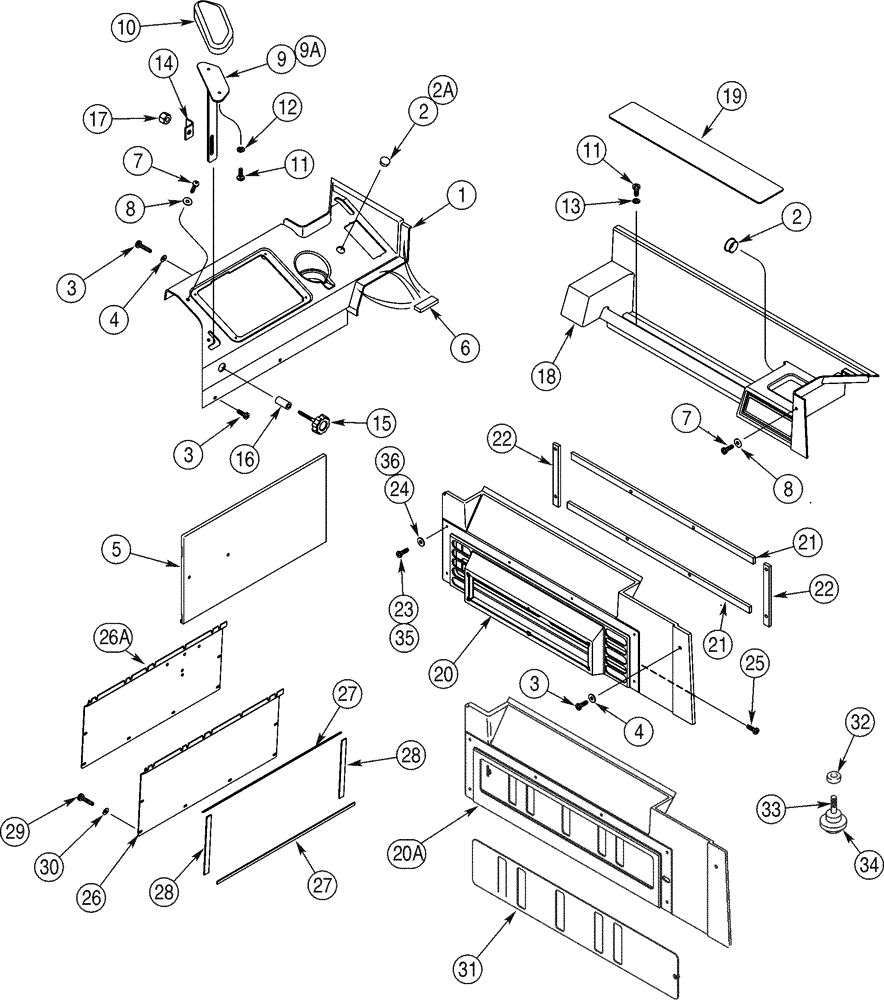

Схема запчастей Case 921C - (09-50) - COVERS - CONSOLE AND WRIST SUPPORT (09) - CHASSIS
2a
4
30
2
29
5
24
2
7
26a
3
1
11
15
27
21
23
12
22
35
31
10
8
14
20
27
6
4
13
32
3
28
25
20a
8
11
26
18
22
17
36
16
19
21
28
3
9
33
9a
34
7

Артикул

Название

Примечание

Количество

Cab Models

1шт.

1

256122A2

CONSOLE

Control, Gray, Replaces 256122A1

1шт.

1

399187A1

COVER

Control, Tan

1шт.

2

353-410

PLUG,Dome, .875" hole, Nylon

1-2шт.

2a

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

3

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

Special, Replaces 239111A1

5шт.

4

1990502C1

WASHER

1/4 x 13/16 x 1/16 in, Replaces 239186A1

3шт.

5

257460A2

PADDING

Console, Gray

1шт.

5

399191A1

PAD

Console, Tan

1шт.

6

327332A1

SEAL

56 mm (2-1/4 in)

3шт.

7

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

Special, Replaces 297851A1

3шт.

8

1990502C1

WASHER

1/4 x 13/16 x 1/16 in, Replaces 239186A1

3шт.

9

221102A2

SUPPORT

Wrist, Replaces 221102A1, If Used

1шт.

9a

408275A1

SUPPORT

Wrist, If Used

1шт.

10

221103A1

PAD

Wrist Support

1шт.

11

297850A1

SCREW,Cross Pan Hd, M6 x 16

Special

4шт.

12

892-11006

LOCK WASHER,M6

2шт.

13

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

M6

2шт.

14

221125A2

RETAINER

Wrist Support, Replaces 221125A1

1шт.

15

221251A1

KNOB

Adjusting

1шт.

16

221126A1

SPACER

No Longer Available, Order L126936

1шт.

16

L126936

SPACER

Replaces 221126A1

1шт.

17

231-1445

NUT,5/16"-18, GB

1шт.

18

257459A1

BRACKET

Rear Storage, Gray

1шт.

18

399192A1

CONSOLE

Rear Storage, Tan

1шт.

19

257461A1

PAD

1шт.

20

257462A4

PAD

Filter Recirculation, Replaces 257462A3, If Used

1шт.

20a

367505A1

PLASTIC

Filter Recirculation, Gray, If Used

1шт.

20a

399188A1

COVER

Filter Recirculation, Tan, If Used

1шт.

21

327131A1

FOAM INSULATION,20mm W x 685.1mm L x 8.5mm Thk

Blower Box, Top

2шт.

22

327132A1

FOAM INSULATION,20mm W x 196mm L x 8.5mm Thk

Blower Box, Side

2шт.

23

239108A1

SCREW,Cross Pan Hd, M4 x 25mm

Special, used with 20

6шт.

24

239186A1

WASHER

4,3 x 12 x 0,8 mm, Used With 20

6шт.

25

760-14113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

If Used

2шт.

26

361332A1

PANEL

Access, Replaces 324532A1, No Longer Available, Order 380766A1

1шт.

26a

380766A1

PANEL

Access, Replaces 361332A1

1шт.

27

187787C1

SEALING STRIP

600 mm (23-5/8 in), Access Panel, Top, Cut From 180624C1

2шт.

28

187782C1

SEALING STRIP

Access Panel, Side, Replaces 239814A1

2шт.

29

297850A1

SCREW,Cross Pan Hd, M6 x 16

Special, Replaces 239225A1

6шт.

30

1990502C1

WASHER

1/4 x 13/16 x 1/16 in, Replaces 239186A1

6шт.

31

367817A1

PLATE

Louver, Used With 20A

1шт.

32

374646A1

SPACER

Used With 20A

1шт.

33

60-4135T1

STUD,1/4" - 20 x 1-7/16"

Used With 20A

1шт.

34

60-4136T1

KNOB

Used With 20A

1шт.

35

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

Used with 20A

6шт.

36

195-81029

WASHER,#10

(7/32 x 7/16 x 1/16"), Used with 20A

6шт.

Выбрано товаров: 46
