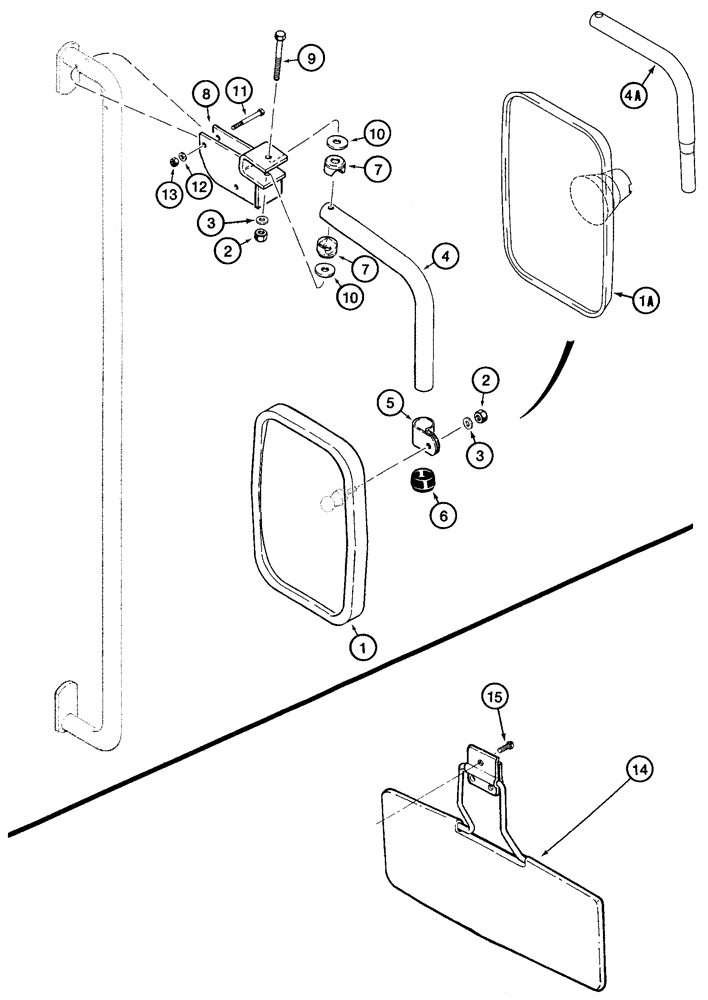

Запчасти Case 921C (09-47) - SUNVISOR - MIRROR, REAR VIEW (09) - CHASSIS

North America and Europe

1шт.

Outer Mirrors

1шт.

1

1283403C1

MIRROR

North America Only

2шт.

1a

248541A1

MIRROR

Europe Only

2шт.

2

326364A1

NUT

M10

2-4шт.

3

326365A1

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 20 x 2 mm

2-4шт.

4

1977805C1

ARM

Mirror Mounting, North America Only

2шт.

4a

194617A1

TUBE,25.4 mm OD

Mirror Mounting, Europe Only

2шт.

5

1977834C1

MOUNTING CLIP

Full, North America Only

2шт.

6

1977833C1

CAP

Plastic, North America Only

2шт.

7

1977831C1

MOUNTING CLIP

Half

4шт.

8

198061A1

SUPPORT

Mirror Mounting

2шт.

9

326362A1

BOLT

M10 x 60

2шт.

10

1977832C1

WASHER

Brass

4шт.

11

326361A1

BOLT,Hex, M6 x 1 x 50mm, Cl 10.9

M6 x 50

4шт.

12

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

M6

4шт.

13

326363A1

NUT

M6

4шт.

Sun Visor

1шт.

14

E47027

VISOR, SUN

1шт.

15

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

3шт.
