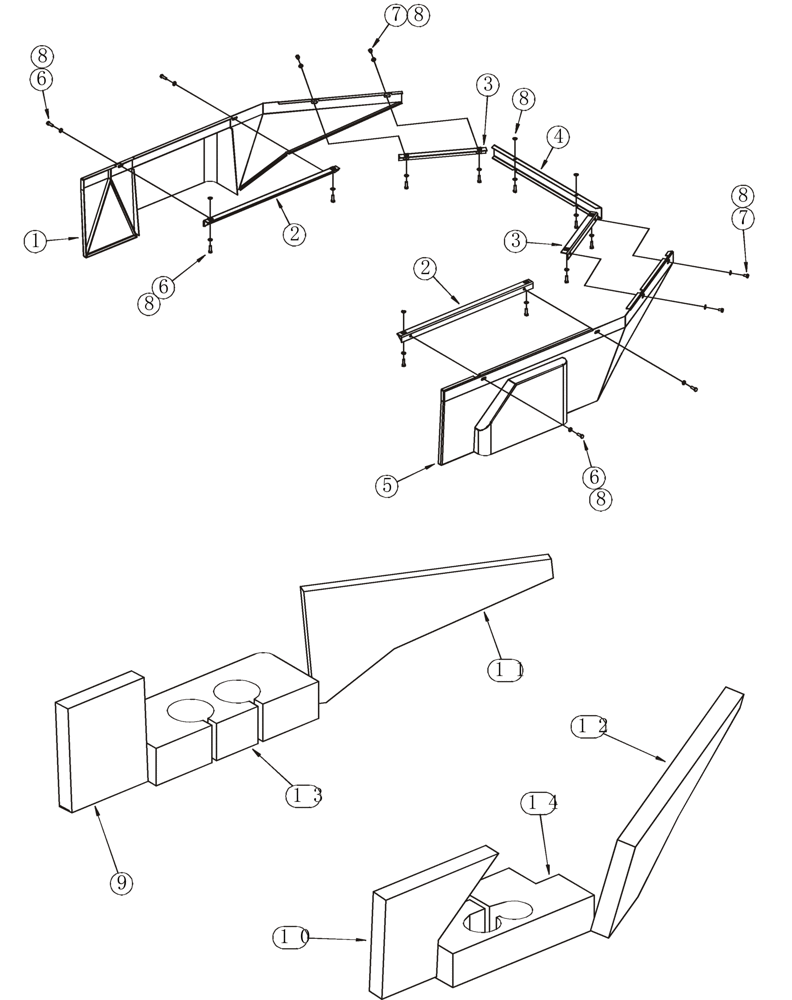

Запчасти Case 921C (09-46) - COVERS - CAB AND CANOPY, LOWER (09) - CHASSIS

North America and Europe

1шт.

1

104733A1

GUARD ASSY.

Left Hand

1шт.

2

255566A1

ANGLE BAR

Left Hand Rear, Right Hand Rear

2шт.

3

255567A1

ANGLE BAR

Left Hand Front, Right Hand Front

2шт.

4

L129571

ANGLE BAR

Center

1шт.

5

310981A1

SKIRT

Right Hand

1шт.

6

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

14шт.

7

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

8

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mmø

22шт.

Europe Only

1шт.

9

228424A1

INSULATOR

Left Hand Rear

1шт.

10

329108A1

FOAM INSULATION

Right Hand Rear

1шт.

11

228428A2

INSULATOR

Left Hand Fron

1шт.

12

329064A1

FOAM INSULATION

Right Hand

1шт.

13

336888A1

INSULATOR

Hydraulic Filter

1шт.

14

336932A1

FOAM INSULATION

Transmission Filter

1шт.
