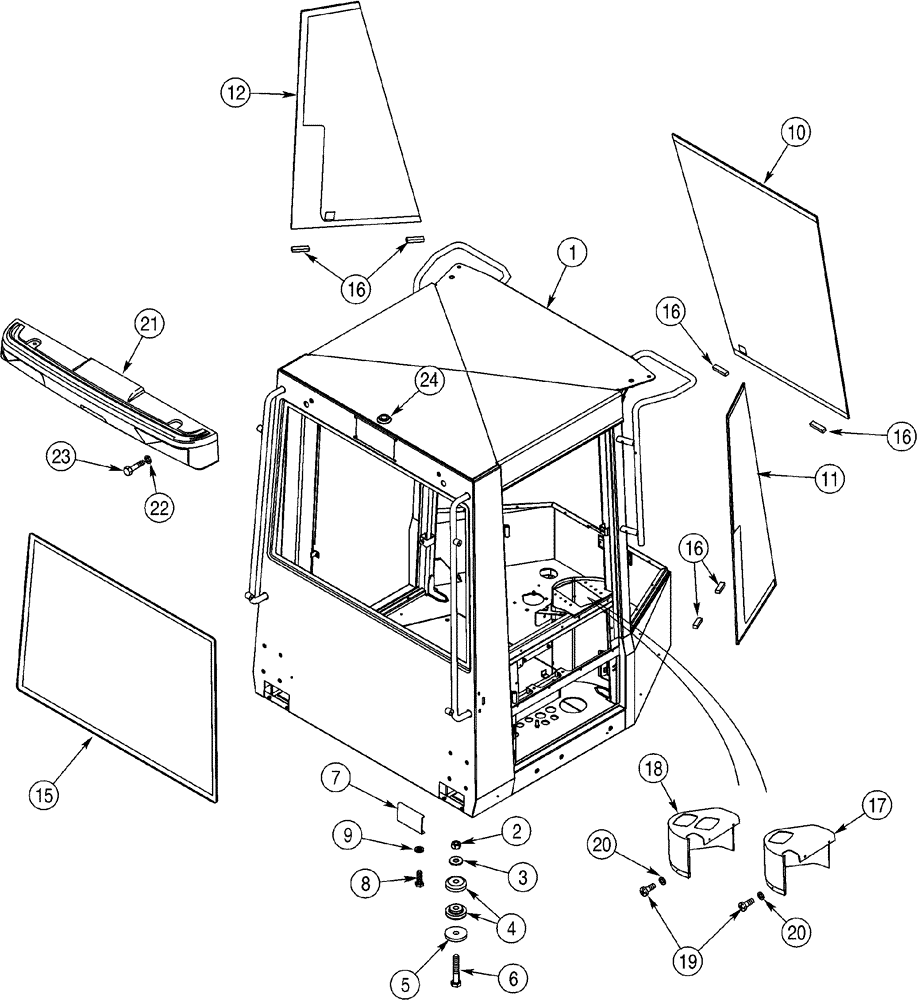

Запчасти Case 921C (09-45) - CAB - MOUNTING AND GLASS (09) - CHASSIS

336959A1

CAB

Service, No Longer Available, Order 418417A1, 418410A1

1шт.

418417A1

CAB

Service, N.A. Only

1шт.

418410A1

CAB

Service, Europe Only

1шт.

1

198982A5

Replaces 198982A2, 198982A3, 198982A4

1шт.

2

329-1014

NUT,7/8"-9, G8

4шт.

3

396-41094

WASHER,23.82mm ID x 57.15mm OD x 5.56mm Thk

4шт.

4

R54331

HITCH DAMPER

Cab Support

8шт.

5

1332154C1

WASHER,23mm ID x 95.3mm OD x 12.7mm Thk

Special

4шт.

6

326-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

4шт.

7

241301A2

COVER

Access, Replaces 241301A1

2шт.

8

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

9

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

Replaces 895-11006

4шт.

10

367889A1

GLASS

Cab Front, Center, Requires Items 13 And 14 For Installation, Replaces 326951A1, N.A. Only

1шт.

10

326951A1

CAB GLASS ASSY

Cab Front, Center, Requires Items 13 And 14 For Installation, Europe Only

1шт.

11

198053A1

GLASS

Cab Front, Right Hand, Requires Items 13 And 14 For Installation

1шт.

12

198052A1

GLASS

Cab Front, Left Hand, Requires Items 13 And 14 For Installation

1шт.

13

114327A1

TAPE

Special, Not Shown

2шт.

14

114328A1

SEALANT

Used With Item 13 Tape, Not Shown

1шт.

15

198054A1

GLASS

Cab Rear Window

1шт.

16

97268C1

SPACER

Glass Installation

6шт.

17

279308A1

COVER

Remote Control Lever, If Used

1шт.

18

220213A1

COVER

Remote Control Lever, If Used

1шт.

19

239111A1

SCREW,Cross Pan Hd, M4 x 18mm

4шт.

20

239186A1

WASHER

4,3 x 12 x 0,8 mm

4шт.

21

310762A1

SUPPORT

Rear Light, Tan

1шт.

21

321576A2

RETAINER

Rear Light, Gray

1шт.

22

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

23

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

24

217-476

DRAIN PLUG,Sq Soc, 1" - 11-1/2, NTPF

1шт.

Note: See Figure 09-54 for right hand cab window glass and Figure 09-55 for left hand cab door window glass

1шт.

Nota : Voir la page 9 -54 pour la vitre de fenêtre de portière droite et la page 9 -55 pour la vitre de fenêtre de portière gauche.

1шт.

Nota: Ver páginas 9-54 para el cristal de la ventana derecha de la cabina y las páginas 9-55 para el cristal de la ventana de la puerta izquierda de la cabina.

1шт.
