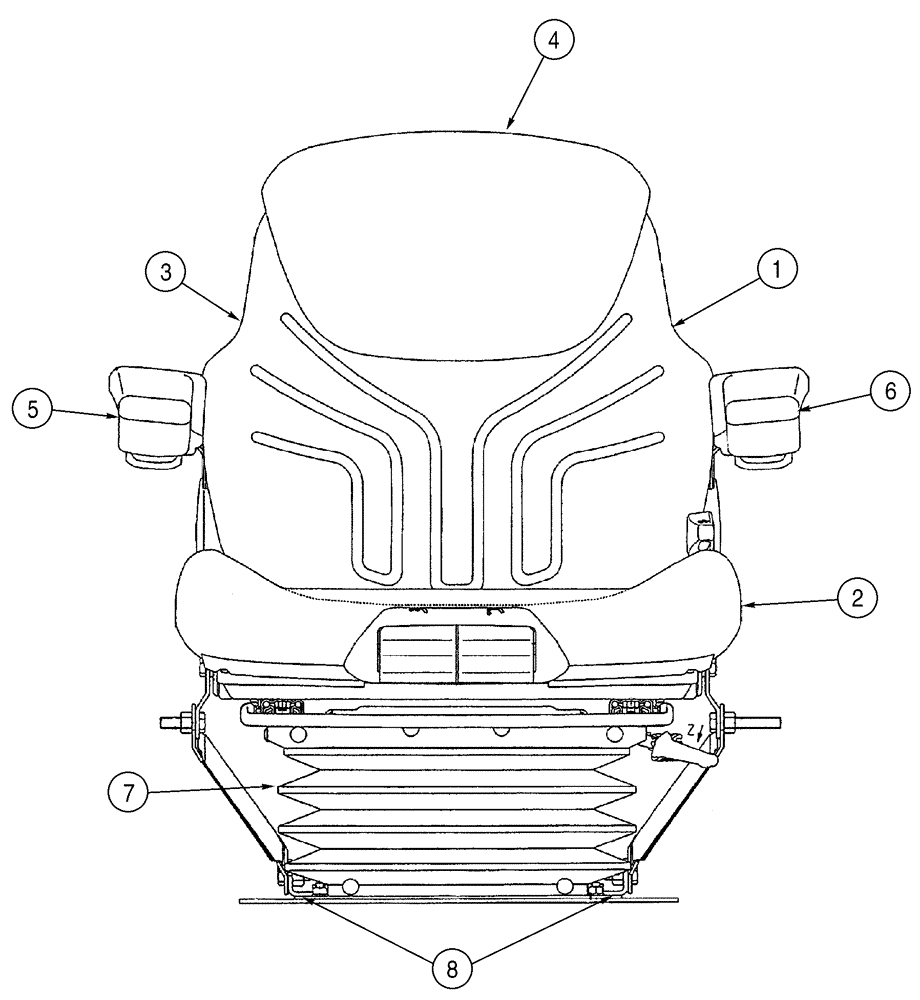

Запчасти Case 921C (09-44) - SEAT ASSY, AIR SUSPENSION (09) - CHASSIS

369847A1

SEAT

Cloth, Gray, Air Suspension, Incl. 1 - 27, Replaces 328476A1

1шт.

399259A1

DRIVER SEAT

Cloth, Tan, Air Suspension, Incl. 1 - 27

1шт.

1

345724A1

CUSHION

See Figure 09-42, REF 1, 2

1шт.

2

345725A1

CUSHION

See Figure 09-42, REF 3, 4

1шт.

3

345764A1

BACKREST

Backrest, See Figure 09-42, REF 5 - 7

1шт.

4

345727A1

SEAT HEADREST

1шт.

5

398152A1

ARMREST

Right Hand, Component Parts Not Available at Time of Printing

1шт.

6

398151A1

ARMREST

Left Hand, Component Parts Not Available at Time of Printing

1шт.

7

398149A1

COVER

Component Parts Not Available at Time of Printing

1шт.

8

345783A1

RAIL ASSY.

Seat Slide Rails, See Page(s) 09-42, REF 45

1шт.

9

345767A1

SUPPORT

Lumbar Support, Not Illustrated, See Figure 09-42, REF 31 - 40

1шт.

10

345747A1

FRAME

Not Illustrated, See Figure 09-42, REF 41 - 41B

1шт.

11

345785A1

KIT

Tether Belt, Not Illustrated, See Figure 09-42, REF 44

1шт.

12

345778A1

REPAIR KIT

Hardware, Backrest Adjustment, Not Illustrated, See Figure 09-42, REF 9 - 19

1шт.

13

300521A1

REPAIR KIT

Not Illustrated, See Figure 09-43

1шт.

14

345109A1

KIT

Arm, Not Illustrated, See Figure 9-43, REF 27 - 37

1шт.

15

345131A1

STOP

Stop, Not Illustrated, See Figure 09-43, REF 22 - 25

1шт.

16

345114A1

REPAIR KIT

Air Spring, Not Illustrated, See Figure 09-43, REF 38 - 43

1шт.

17

345125A1

AIR COMPRESSOR KIT

Not Illustrated, See Figure 09-43, REF 44 - 51

1шт.

18

398142A1

LEVER

Not Illustrated, Component Parts Not Available at Time of Printing

1шт.

19

254782A1

KIT

Air Hose, Incl. 20, 21, Not Illustrated, Component Parts Not Available at Time of Printing

1шт.

20

3225292R1

PLUG

12шт.

21

60-4895T1

CLAMP

2шт.

22

398150A1

SHOCK ABSORBER

Shock Absorber, Not Illustrated, Component Parts Not Available at Time of Printing

1шт.

23

398148A1

BASE

Not Illustrated, Component Parts Not Available at Time of Printing

1шт.

24

398143A1

CABLE

Not Illustrated

1шт.

25

398146A1

CABLE

Not Illustrated

1шт.

26

398546A1

SUSPENSION

Upper, Not Illustrated

1шт.

27

398147A1

SUSPENSION

24V, Not Illustrated

1шт.
