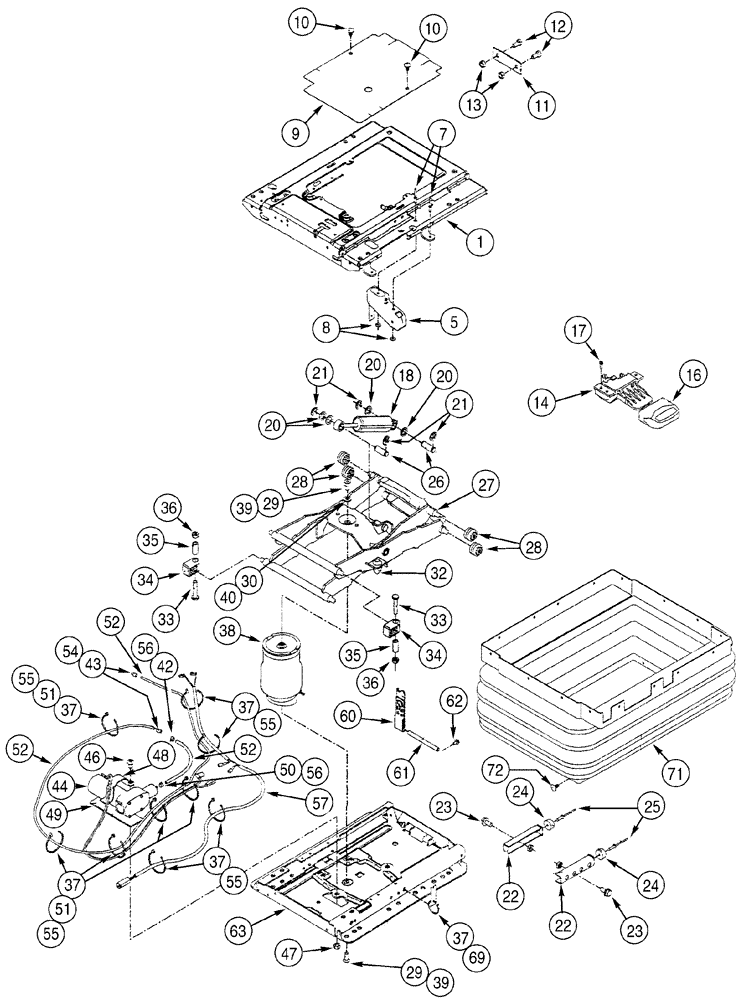

Запчасти Case 921C (09-43) - SEAT ASSY, AIR SUSPENSION (09) - CHASSIS

Suspension Assy

1шт.

328476A1

SEAT

Cloth, Air Suspension, Incl. 347213A1, 345130A1, 1 - 72

1шт.

347213A1

SEAT

Cloth, Upper Seat Assembly, Not Illustrated, See Figure 09-42

1шт.

345133A1

BASE

Mounting Plate, Incl. Hardware, Not Illustrated

1шт.

345130A1

SEAT

Incl. 1 - 72

1шт.

1

345101A1

SET OF PARTS

Upper, Incl. 2 - 8

1шт.

2

345100A1

PLUG

Not Illustrated

18шт.

3

345103A1

WASHER

Not Illustrated

1шт.

4

345113A1

ROLLER

Not Illustrated

2шт.

345104A1

CONTROL LEVER

Incl. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

Lever

1шт.

6

345100A1

PLUG

Not Illustrated

4шт.

7

345102A1

RIVET

2шт.

8

345103A1

WASHER

2шт.

9

345099A1

COVER

Incl. 10

1шт.

10

345100A1

PLUG

2шт.

11

345108A1

PLATE

1шт.

12

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

2шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

345107A1

LEVER

Height Control, Incl. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

Lever

1шт.

15

345100A1

PLUG

Not Illustrated

4шт.

16

345106A1

HANDLE

1шт.

17

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

3шт.

300520A1

SHOCK ABSORBER

Shock Absorber, Incl. 18 - 25

1шт.

18

NSS

NOT SOLD SEPARAT

Shock Absorber

1шт.

19

345100A1

PLUG

Not Illustrated

8шт.

20

3402553R1

WASHER,M13

4шт.

21

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

345131A1

STOP

Stop, Incl. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

Angle

2шт.

23

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

24

60-3231T1

BUMPER

2шт.

25

345132A1

RIVET

2шт.

26

345098A1

PIN

2шт.

345109A1

KIT

Arm, Incl. 27 - 37

1шт.

27

NSS

NOT SOLD SEPARAT

Arm

1шт.

28

345113A1

ROLLER

4шт.

29

345112A1

SCREW,M8 x 20mm L

2шт.

30

934058R1

WASHER,8.4mm ID x 15mm OD x 1.6mm Thk

1шт.

31

345100A1

PLUG

Not Illustrated

22шт.

32

60-3242T1

BUMPER

2шт.

33

345111A1

BOLT

4шт.

34

345110A1

GUIDE

4шт.

35

345095A1

TUBE

4шт.

36

60-4845T1

NUT

4шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

9шт.

345114A1

REPAIR KIT

Air Spring, Incl. 38 - 43

1шт.

38

NSS

NOT SOLD SEPARAT

Spring

1шт.

39

345112A1

SCREW,M8 x 20mm L

2шт.

40

934058R1

WASHER,8.4mm ID x 15mm OD x 1.6mm Thk

1шт.

41

345100A1

PLUG

Not Illustrated

8шт.

42

60-4895T1

CLAMP

1шт.

43

345118A1

ADAPTER

2шт.

345125A1

AIR COMPRESSOR KIT

Incl. 44 - 51

1шт.

44

NSS

NOT SOLD SEPARAT

Compressor

1шт.

45

345100A1

PLUG

Not Illustrated

12шт.

46

864-8012

HEX SOC SCREW,M8 x 12mm, Cl 8.8

1шт.

47

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

48

345120A1

SUPPORT

1шт.

49

345121A1

PLATE

1шт.

50

60-4895T1

CLAMP

1шт.

51

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

5шт.

345122A1

SET OF PARTS

Air Hose, Incl. 52 - 56

1шт.

52

NSS

NOT SOLD SEPARAT

Hose

1шт.

53

345100A1

PLUG

Not Illustrated

12шт.

54

345118A1

ADAPTER

2шт.

55

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

8шт.

56

60-4895T1

CLAMP

2шт.

345123A1

KIT

Harness, Incl. 57 - 59

1шт.

57

NSS

NOT SOLD SEPARAT

Harness

1шт.

58

345100A1

PLUG

Not Illustrated

12шт.

59

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in, Not Illustrated

10шт.

60

345115A1

STRAP

1шт.

61

345116A1

PIN

1шт.

62

345117A1

SCREW

1шт.

345126A1

SET OF PARTS

Incl. 63 - 70

1шт.

63

NSS

NOT SOLD SEPARAT

Plate

1шт.

64

345100A1

PLUG

Not Illustrated

6шт.

65

60-4845T1

NUT

Not Illustrated

3шт.

66

345110A1

GUIDE

Not Illustrated

2шт.

67

345112A1

SCREW,M8 x 20mm L

Not Illustrated

1шт.

68

345113A1

ROLLER

Not Illustrated

2шт.

69

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

6шт.

70

864-8012

HEX SOC SCREW,M8 x 12mm, Cl 8.8

Not Illustrated

1шт.

71

345128A1

BELLOWS

Incl. 72

1шт.

72

345100A1

PLUG

22шт.

300521A1

REPAIR KIT

Incl. 10, 22, 28 - 30, 32, 34, 35, 37, 39, 55, 69, 72

1шт.
