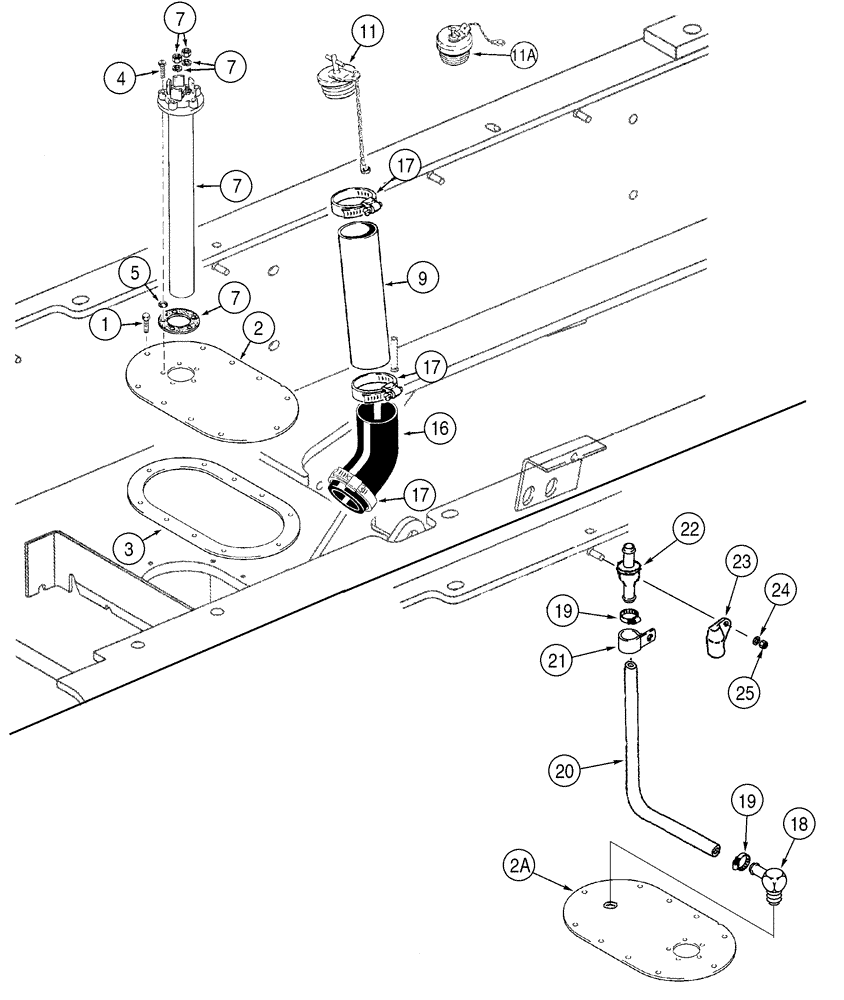

Запчасти Case 921C (03-01) - FUEL TANK FILLER - SENDER (03) - FUEL SYSTEM

All Models -JEE0126215

1шт.

1

L108414

BOLT

10шт.

2

L125423

LARGE PLATE

PLATE, LARGE Tank Access, If Used

1шт.

2a

349265A1

LARGE PLATE

PLATE, LARGE Tank Access, If Used

1шт.

3

100734A1

GASKET,4.6mm Thk

1шт.

4

463-11020

SCREW,Hex Hd, #10-24 x 1 1/4"

5шт.

5

L115306

WASHER

Sealing

5шт.

7

328871A1

FUEL GAUGE

Fuel Level

1шт.

9

226685A1

FUEL TUBE,88.9 mm Diameter, 200 mm Length

Fuel Filler

1шт.

11

L74929

FILLER CAP

No Longer Available, Order 178592A1

1шт.

11a

178592A1

PLUG

Filler Cap, Replaces L74929

1шт.

16

L127180

FUEL HOSE

177 mm (7 in)

1шт.

17

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

3шт.

18

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

19

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

20

31-2280

FUEL HOSE

1626 mm (64 in), Cut From 32-012

1шт.

21

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Mounts to radiator shroud, Use existing hardware

1шт.

22

T103750

BREATHER

1шт.

23

186814A1

CAP

Mount To Radiator Guard

1шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

25

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.
