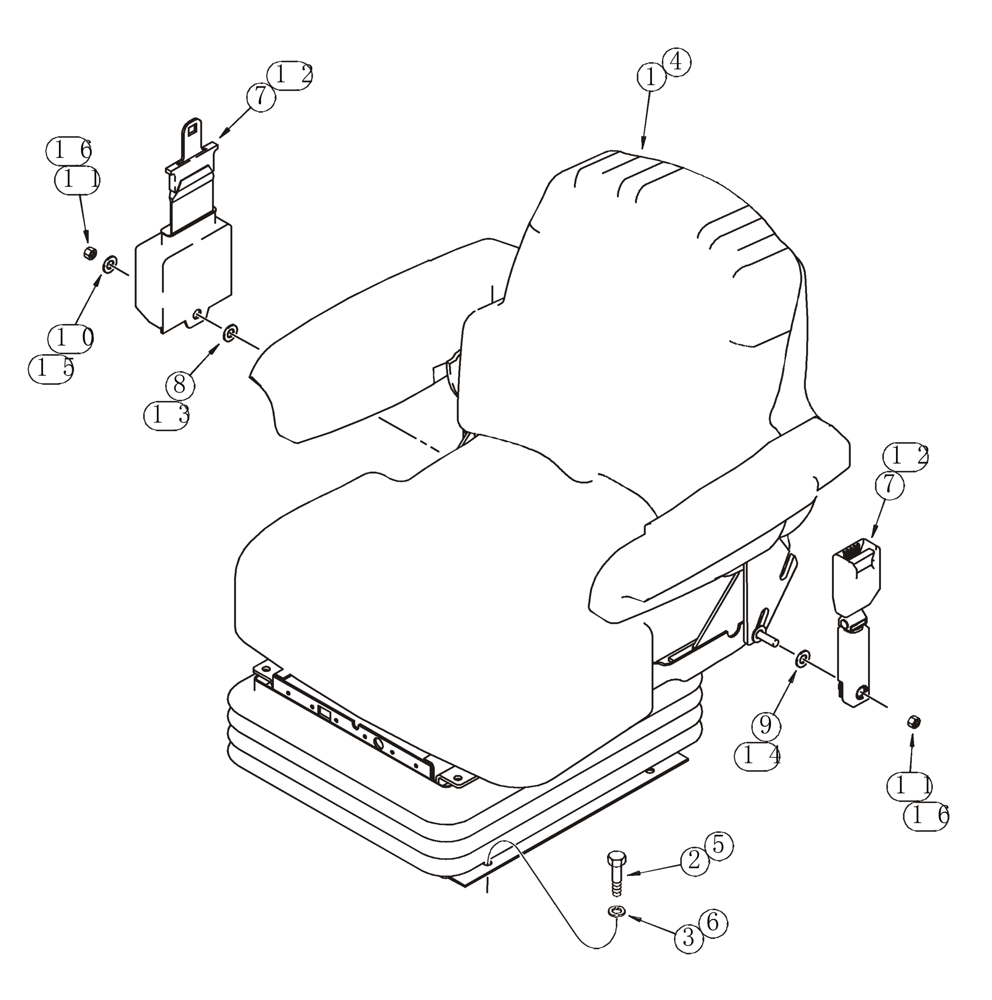

Запчасти Case 921C (09-38) - SEAT - MOUNTING (09) - CHASSIS

Mechanical Suspension Seat

1шт.

1

328474A1

SEAT ASSY.

Vinyl, Gray, See Page(s) 9-99

1шт.

1

399261A1

DRIVER SEAT

Vinyl, Tan, See Page(s) 9-99

1шт.

1

328475A1

SEAT

Cloth, Gray, See Figure 09-40

1шт.

1

399257A1

DRIVER SEAT

Cloth, Tan, See Figure 09-40

1шт.

2

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

Replaces 814-10040

4шт.

Air Suspension Seat

1шт.

4

328476A1

SEAT

Cloth, See Figure 09-42, No Longer Available, Order 369847A1

1шт.

4

369847A1

SEAT

Cloth, Gray, See Figure 09-44, Replaces 328476A1

1шт.

4

399259A1

DRIVER SEAT

Cloth, Tan, See Figure 09-44

1шт.

5

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

Replaces 814-10040

4шт.

North America Only

1шт.

51 mm (2 Inch) Wide Retractable Seat Belt

1шт.

7

249116A1

SAFETY BELT ,50.80 mm W

If Equipped, Includes 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Washer

1шт.

9

NSS

NOT SOLD SEPARAT

Washer

1шт.

10

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16")

1шт.

11

231-2447

LOCK NUT,7/16"-14, GB

2шт.

76 mm (3 Inch) Wide Retractable Seat Belt

1шт.

12

249117A1

SAFETY BELT ,76.20 mm W

If Equipped, Includes 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Washer

1шт.

14

NSS

NOT SOLD SEPARAT

Washer

1шт.

15

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16")

1шт.

16

231-2447

LOCK NUT,7/16"-14, GB

2шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
