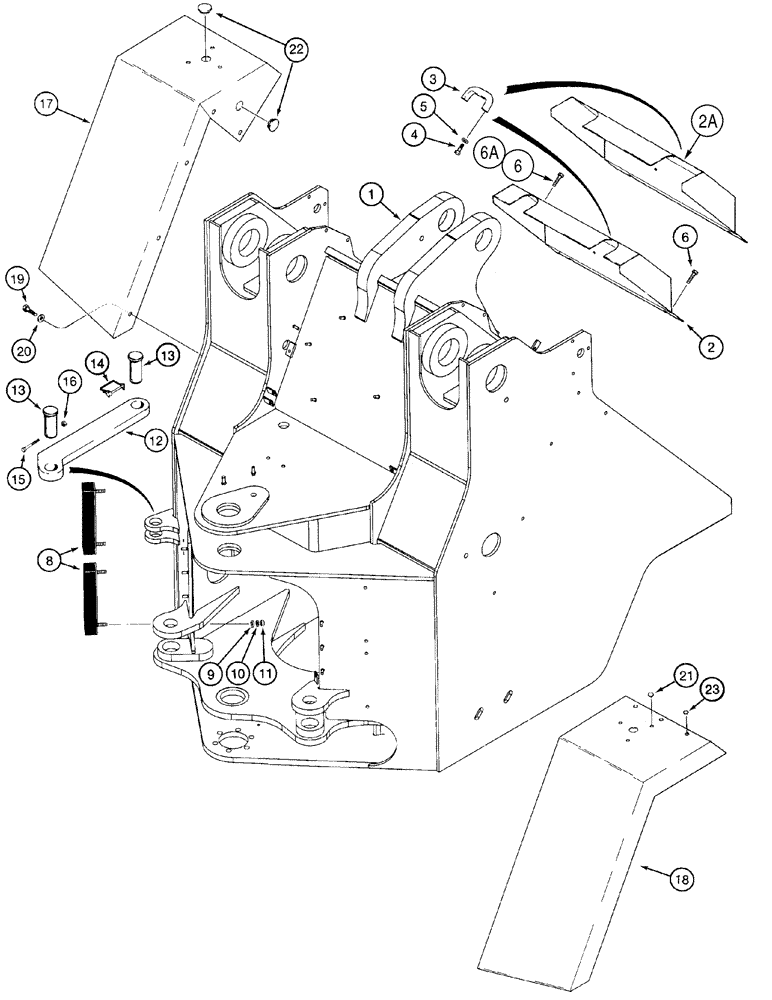

Запчасти Case 921C (09-36) - FRAME, FRONT - FENDERS (09) - CHASSIS

North America Only

1шт.

1

196700A1

CHASSIS

Front Chassis, No Longer Used, Order 360769A1

1шт.

1

360769A1

CHASSIS

Front Chassis, Replaces 196700A1

1шт.

2

L130046

COVER

Access, Front Frame, Used With 2-Spool Valve

1шт.

2a

L130045

COVER

Access, Front Frame, Used With 3 and 4-Spool Valve

1шт.

3

A23725

HANDLE

Access Cover

1шт.

4

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

2шт.

5

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

6

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

(Replaces 844-10040)

2-4шт.

6a

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3/8 x 3/4; 8, If Used

2шт.

8

L108504

BUMPER

Rubber

4шт.

9

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

8шт.

10

492-11038

LOCK WASHER,3/8"

8шт.

11

425-106

NUT,3/8"-16, Cl 5

8шт.

12

L129248

BAR

Transport and Service

1шт.

13

L129254

LOCK PIN

If Used

2шт.

13

353272A1

PIN

If Used

2шт.

14

L129282

LINCH PIN

1шт.

15

426-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 8

1/4 x 2-1/4; 8

1шт.

16

231-1444

NUT,1/4"-20, GB

1шт.

17

L128978

FENDER

Left Hand Front

1шт.

18

L128979

FENDER

Right Hand Front

1шт.

19

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

10шт.

20

496-21053

WASHER,17/32" x 1 1/16" x .134"

10шт.

21

353-405

PLUG,Dome, .562" hole, Nylon

9/16, If Used

6шт.

22

353-414

PLUG,Dome, 1.375" Hole, Nylon

If used

4шт.

23

353-403

PLUG,Dome, .437" hole, Nylon

If Used

3шт.
