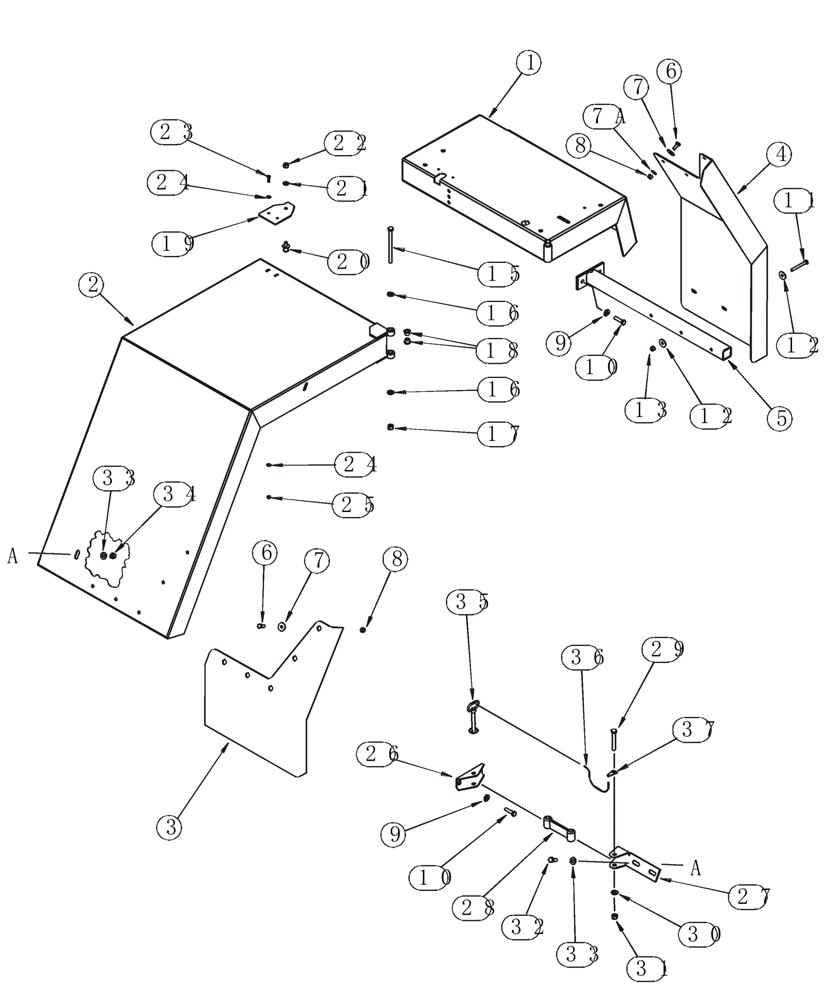

Запчасти Case 921C (09-35) - FENDERS, REAR (09) - CHASSIS

Europe Only

1шт.

German T.U.V. Models

1шт.

1

322774A2

FENDER

Right Hand Rear, Replaces 322774A1

1шт.

1

327188A2

FENDER

Left Hand Rear, Not Shown, Replaces 327188A1

1шт.

2

322537A2

FENDER

Rear Extension, Right Hand, Replaces 322537A1

1шт.

2

327192A2

FENDER

Rear Extension, Left Hand, Not Shown, Replaces 327192A1

1шт.

3

129002A1

SKIRT

Left Rear, Not Shown

1шт.

3

129003A1

SKIRT

Right Rear

1шт.

4

328975A2

FENDER

Right Hand Front, Replaces 328975A1

1шт.

4

328958A2

FENDER

Left Hand Front, Not Shown, Replaces 328958A1

1шт.

5

329128A2

SUPPORT

Front Fender, Replaces 329128A1

2шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

20шт.

7

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

20шт.

7a

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16")

10шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

20шт.

9

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

8шт.

10

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

8шт.

11

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

6шт.

12

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

12шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

15

426-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 8

2шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

17

231-1448

NUT,1/2"-13, GB

2шт.

18

60-4337T1

FLANGED BEARING

4шт.

19

311062A2

LARGE PLATE

PLATE, LARGE Replaces 311062A1

2шт.

20

R51754

STRIKER

2шт.

21

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16")

2шт.

22

231-1447

NUT,7/16"-14, GB

2шт.

23

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

24

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

8шт.

25

832-10406

NUT,M6 x 1, Cl 8

Tether

4шт.

26

E137436

SUPPORT

Fender

2шт.

27

314624A2

SUPPORT

Fender, Right Hand, Replaces 314624A1

1шт.

27

314623A2

SUPPORT

Fender, Left Hand, Not Shown, Replaces 314623A1

1шт.

28

E137437

TRUSS ROD

2шт.

29

426-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

2шт.

30

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

31

231-1448

NUT,1/2"-13, GB

2шт.

32

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

33

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

8шт.

34

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

35

120342A1

ANCHOR

Retaining

2шт.

36

L303000

CHAIN (CE)

12 in

2шт.

37

L300295

RETAINER

2шт.
