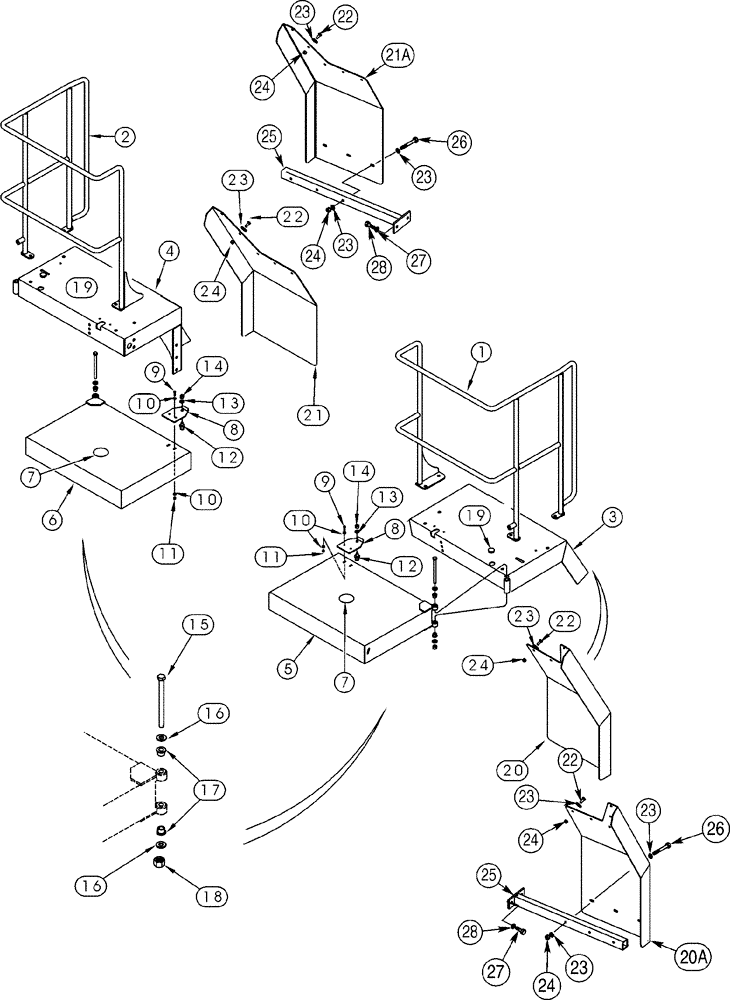

Запчасти Case 921C (09-34) - FENDERS, REAR - MUD (09) - CHASSIS

North America and Europe

1шт.

1

296726A2

GUARD ASSY.

Fender, Right Hand, Replaces 296726A1

1шт.

2

295442A2

GUARD ASSY.

Fender, Left Hand, Replaces 295442A1

1шт.

3

322774A2

FENDER

Rear Wide, Right Hand, Replaces 322774A1

1шт.

4

327188A2

FENDER

Rear Wide, Left Hand, Replaces 327188A1

1шт.

5

326478A2

FENDER

Mud Fender, Right Hand, Replaces 326478A1

1шт.

6

327240A2

FENDER

Mud Fender, Left Hand, Replaces 327240A1

1шт.

7

E134402

DECAL

No Step

2шт.

8

311062A2

LARGE PLATE

PLATE, LARGE Replaces 311062A1

2шт.

9

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

10

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

8шт.

11

832-10406

NUT,M6 x 1, Cl 8

4шт.

12

R51754

STRIKER

2шт.

13

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16")

2шт.

14

231-1447

NUT,7/16"-14, GB

2шт.

15

426-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 8

2шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

17

60-4337T1

FLANGED BEARING

4шт.

18

231-1448

NUT,1/2"-13, GB

2шт.

19

353-422

PLUG,Dome, 1.250" hole, Nylon

2шт.

20

129002A1

SKIRT

Lower Right Hand, If Used

1шт.

20a

328975A2

FENDER

Lower Right Hand, If Used, Replaces 328975A1

1шт.

21

129003A1

SKIRT

Lower Left Hand, If Used

1шт.

21a

328958A2

FENDER

Lower Left Hand, If Used, Replaces 328958A1

1шт.

22

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

10шт.

23

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

10-22шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

10-16шт.

25

329128A2

SUPPORT

Fender, Used With 20A, 21A, Replaces 329128A1

2шт.

26

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

6шт.

27

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

28

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.
