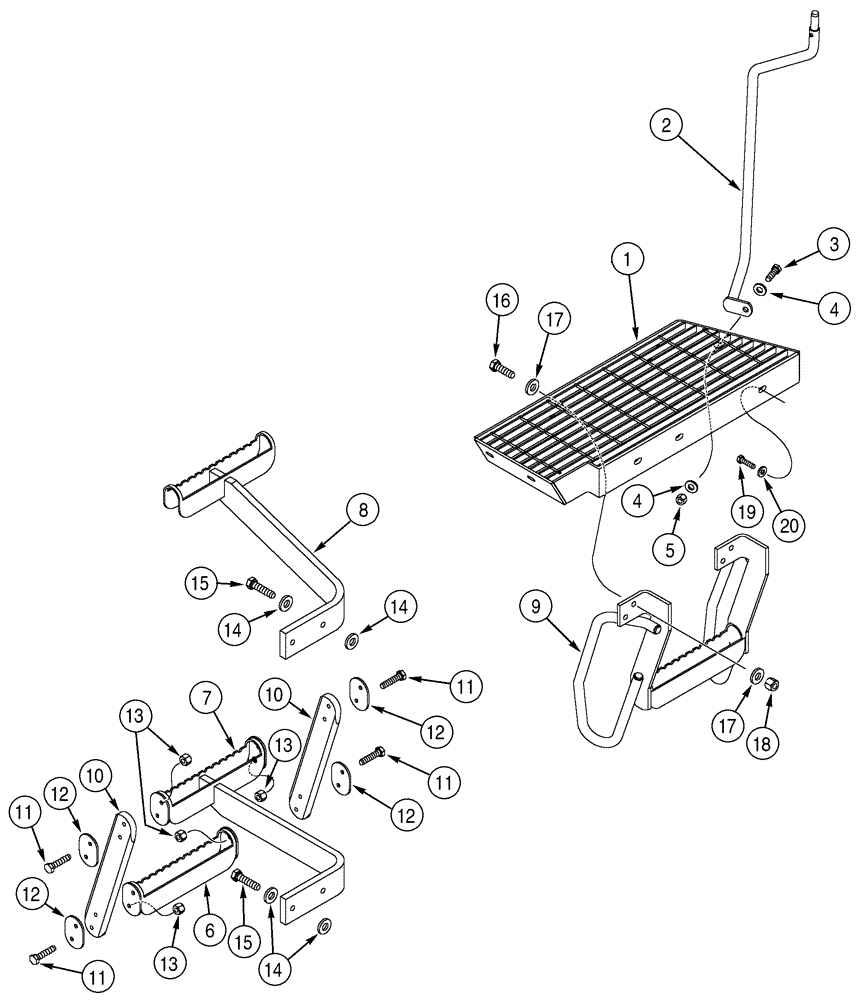

Запчасти Case 921C (09-33) - FENDERS, REAR - STEPS (09) - CHASSIS

Wide Fenders

1шт.

Left Hand

1шт.

North America and Europe

1шт.

1

311072A2

STEP

Operator's Compartment, Left Hand, Replaces 311072A1

1шт.

2

259968A2

HANDLE

Assist, Right Hand, Replaces 259968A1

1шт.

3

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

5

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

6

311075A2

STEP

Rear Frame, Bottom, Replaces 311075A1

1шт.

7

311074A2

STEP

Rear Frame, Lower, Replaces 311074A1

1шт.

8

311076A2

STEP

Rear Frame, Center, Replaces 311076A1

1шт.

9

311073A2

STEP

Rear Frame, Top, Replaces 311073A1

1шт.

10

108751A1

SUPPORT

Hanger

2шт.

11

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.

12

311069A1

LARGE PLATE

PLATE, LARGE Support

4шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

14

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

15

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

16

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

17

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

8шт.

18

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

19

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

3шт.

20

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

3шт.
