(09-29) - STEPS, REAR CHASSIS - TRAY, BATTERY

Запчасти Case 921C (09-29) - STEPS, REAR CHASSIS - TRAY, BATTERY (09) - CHASSIS

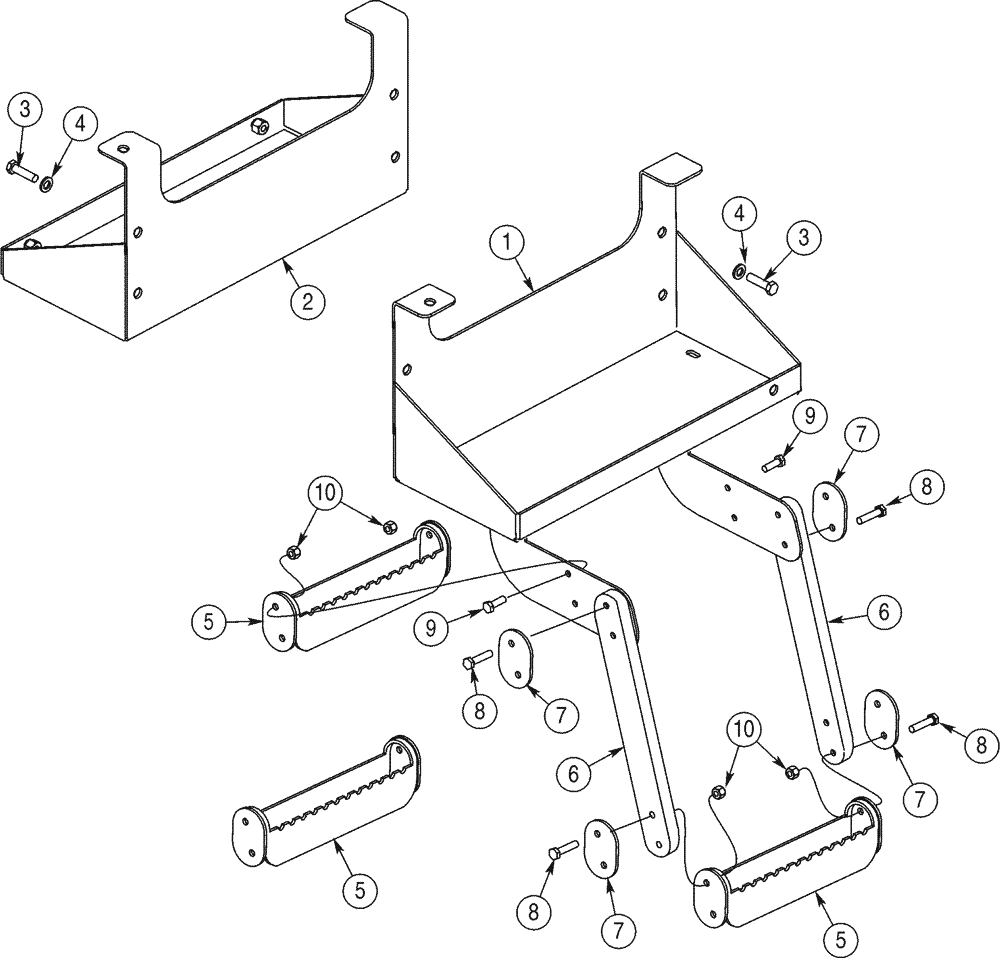

Схема запчастей Case 921C - (09-29) - STEPS, REAR CHASSIS - TRAY, BATTERY (09) - CHASSIS
6
10
7
7
5
9
8
2
1
6
3
8
4
10
5
8
7
9
5
7
4
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

All Models JEE0126216-

1шт.

1

431864A1

TRAY ASSY.

Battery

1шт.

2

431925A1

TRAY ASSY.

Battery, Left Hand

1шт.

3

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

8шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

5

311075A2

STEP

3шт.

6

108751A1

SUPPORT

2шт.

7

311069A1

LARGE PLATE

PLATE, LARGE

4шт.

8

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

11шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.
