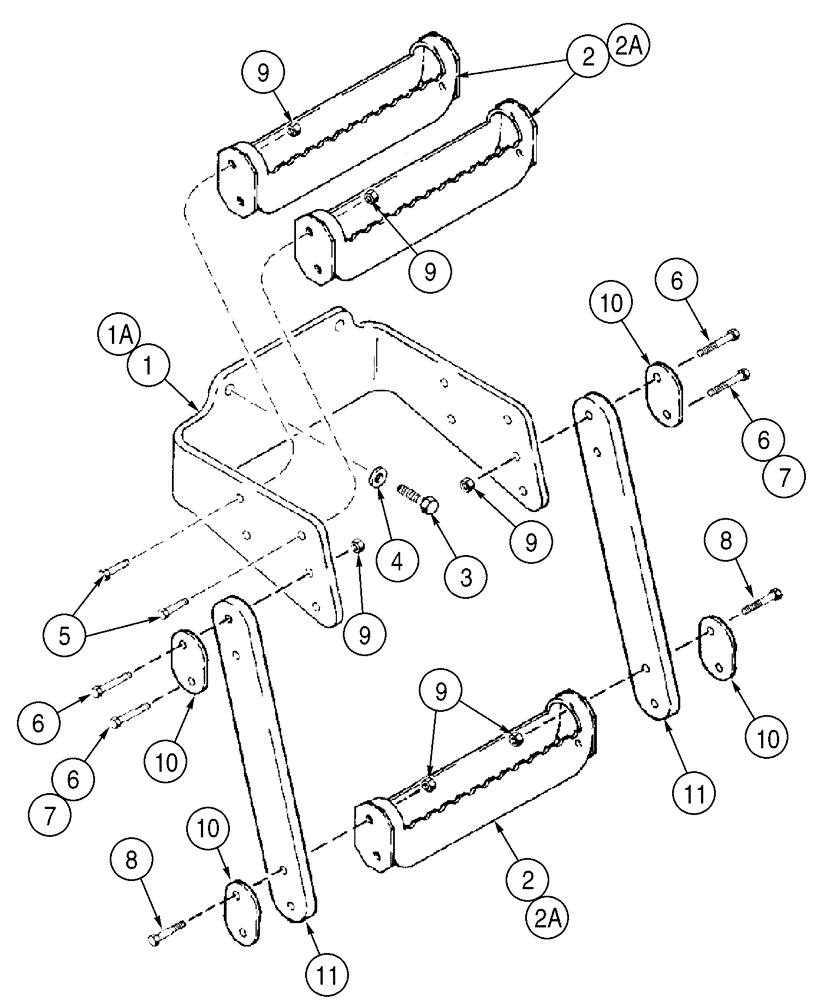

Запчасти Case 921C (09-28) - STEPS, REAR CHASSIS (09) - CHASSIS

All Models -JEE0126215

1шт.

1

L130051

SUPPORT

No Longer Used, Order 355601A2

1шт.

1a

355601A2

SUPPORT

Replaces L130051, 355601A1

1шт.

2

135822A1

STEP

No Longer Used, Order 311075A2

3шт.

2a

311075A2

STEP

Replaces 135822A1, 311075A1

3шт.

3

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

6шт.

6

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

2-4шт.

7

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

If used

2шт.

8

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

4шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

16шт.

10

311069A1

LARGE PLATE

PLATE, LARGE Replaces 108753A1

4шт.

11

108751A1

SUPPORT

2шт.
