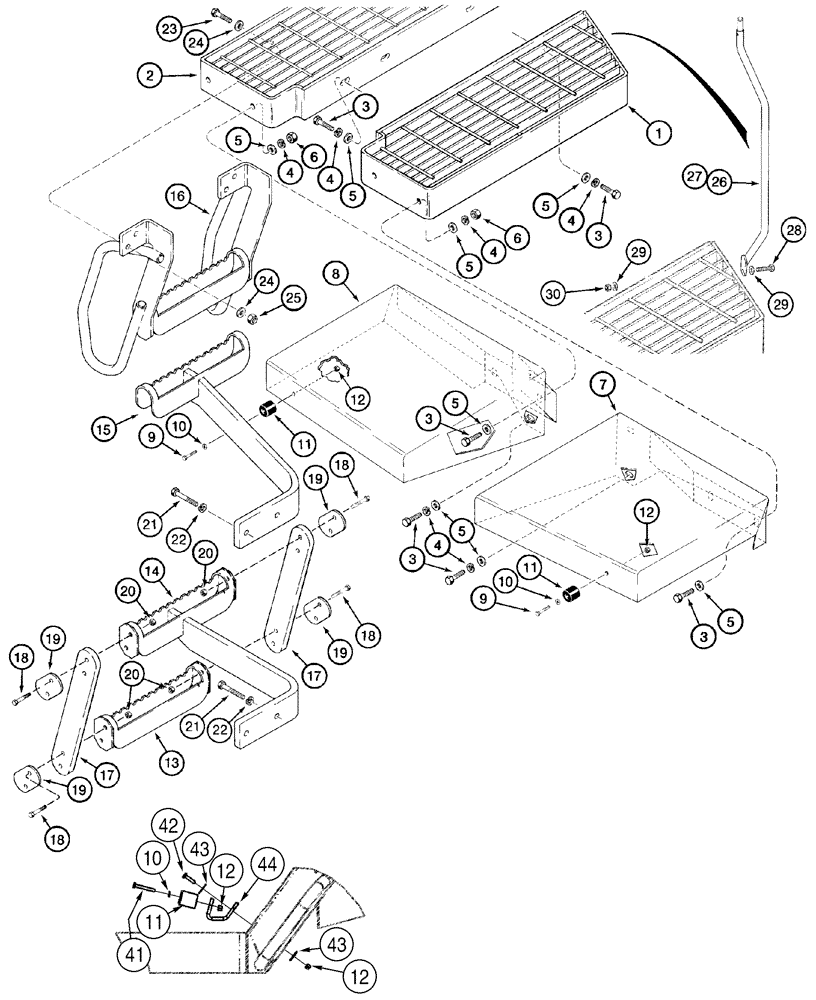

Запчасти Case 921C (09-27) - FENDERS, REAR - STEPS (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
Standard Fenders
1шт.
North America and Europe
1шт.
1
326819A3
STEP
Operator's Compartment, Right Hand, Replaces 326819A2
1шт.
2
326818A3
STEP
Operator's Compartment, Left Hand, Replaces 326818A2
1шт.
3
827-12050
BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9
14шт.
4
892-11012
LOCK WASHER,M12
14шт.
5
896-15012
WASHER,13.5mm ID x 28mm OD x 4mm Thk
13,5 x 28 x 4 mm
18шт.
6
829-1412
NUT,M12, Cl 10.9
4шт.
7
326821A2
FENDER
Rear, Right Hand, Replaces 326821A1
1шт.
8
326820A2
FENDER
Rear, Left Hand, Replaces 326820A1
1шт.
9
827-6040
BOLT,Hex, M6 x 40mm, Cl 10.9
2шт.
10
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
3шт.
11
L126483
BUMPER
Door
3шт.
13
311075A2
STEP
Rear Frame, Bottom, Replaces 311075A1
1шт.
14
311074A2
STEP
Rear Frame, Lower, Replaces 311074A1
1шт.
15
311076A2
STEP
Rear Frame, Center, Replaces 311076A1
1шт.
16
311073A2
STEP
Rear Frame, Top, Replaces 311073A1
1шт.
17
108751A1
SUPPORT
Hanger
2шт.
18
828-10045
BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9
8шт.
19
311069A1
LARGE PLATE
PLATE, LARGE Support
4шт.
20
832-10410
NUT,M10 x 1.5, Cl 8
8шт.
21
827-12050
BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9
Replaces 827-12060
4шт.
22
896-15012
WASHER,13.5mm ID x 28mm OD x 4mm Thk
13,5 x 28 x 4 mm
4шт.
23
827-12050
BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9
Replaces 827-12045
4шт.
24
896-15012
WASHER,13.5mm ID x 28mm OD x 4mm Thk
13,5 x 28 x 4 mm
8шт.
25
832-10412
NUT,M12 x 1.75, Cl 8
4шт.
26
275721A2
HANDLE
Assist, Right Hand, Replaces 275721A1
1шт.
27
259968A2
HANDLE
Assist, Left Hand, Replaces 259968A1
1шт.
28
627-12040
BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd
2шт.
29
896-15012
WASHER,13.5mm ID x 28mm OD x 4mm Thk
13,5 x 28 x 4 mm
4шт.
30
832-10412
NUT,M12 x 1.75, Cl 8
2шт.
41
827-6045
BOLT,Hex, M6 x 45mm, Cl 10.9
1шт.
42
627-6025
BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd
1шт.
43
895-15006
WASHER,6.6mm ID x 25mm OD x 1.6mm Thk
2шт.
44
357241A2
SUPPORT
Replaces 357241A1
1шт.
Выбрано товаров: 36
