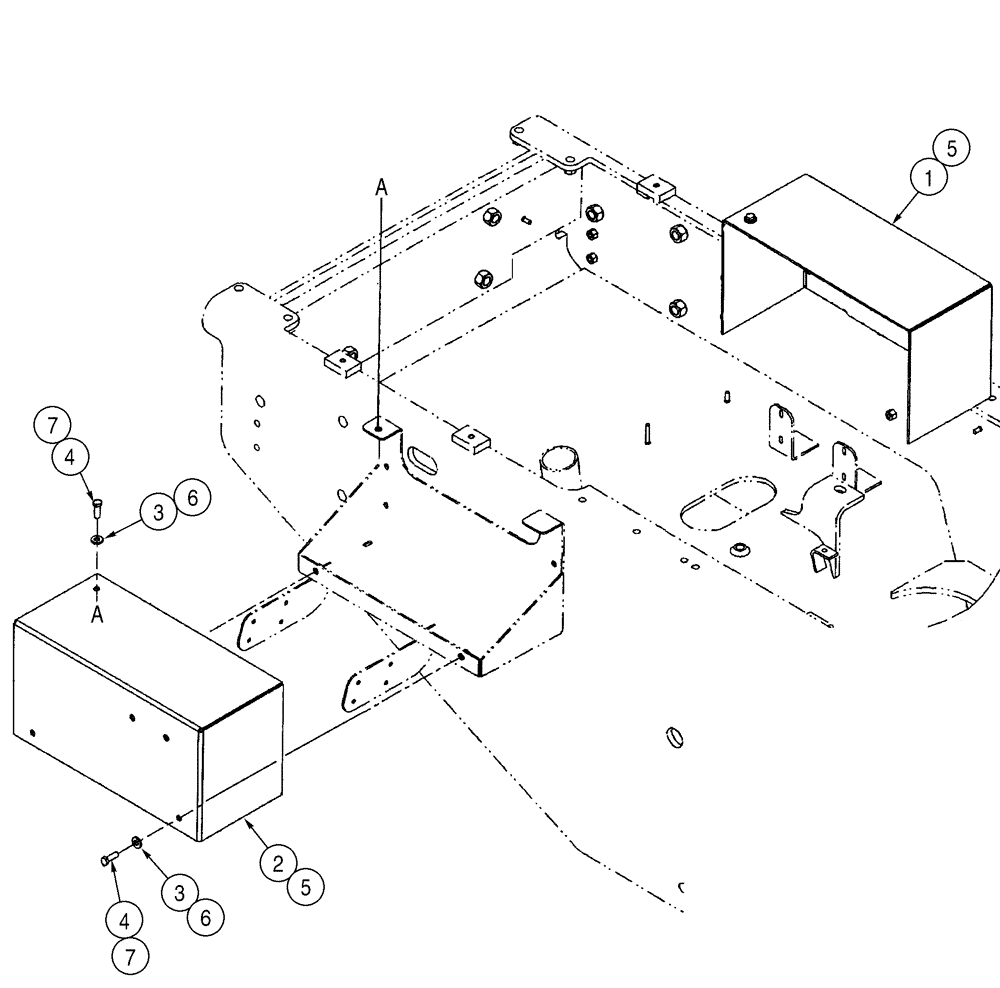

Запчасти Case 921C (09-26) - COVERS - BATTERY BOX (09) - CHASSIS

European Models JEE0126216-

1шт.

1

431924A2

COVER ASSY

Battery, Left Hand, Wide Fenders

1шт.

2

431863A2

COVER ASSY

Battery, Right Hand, Wide Fenders

1шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

6шт.

4

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

6шт.

North American Models JEE0126216-

1шт.

5

432834A2

COVER ASSY

Battery, Standard

2шт.

6

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

6шт.

7

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

6шт.
