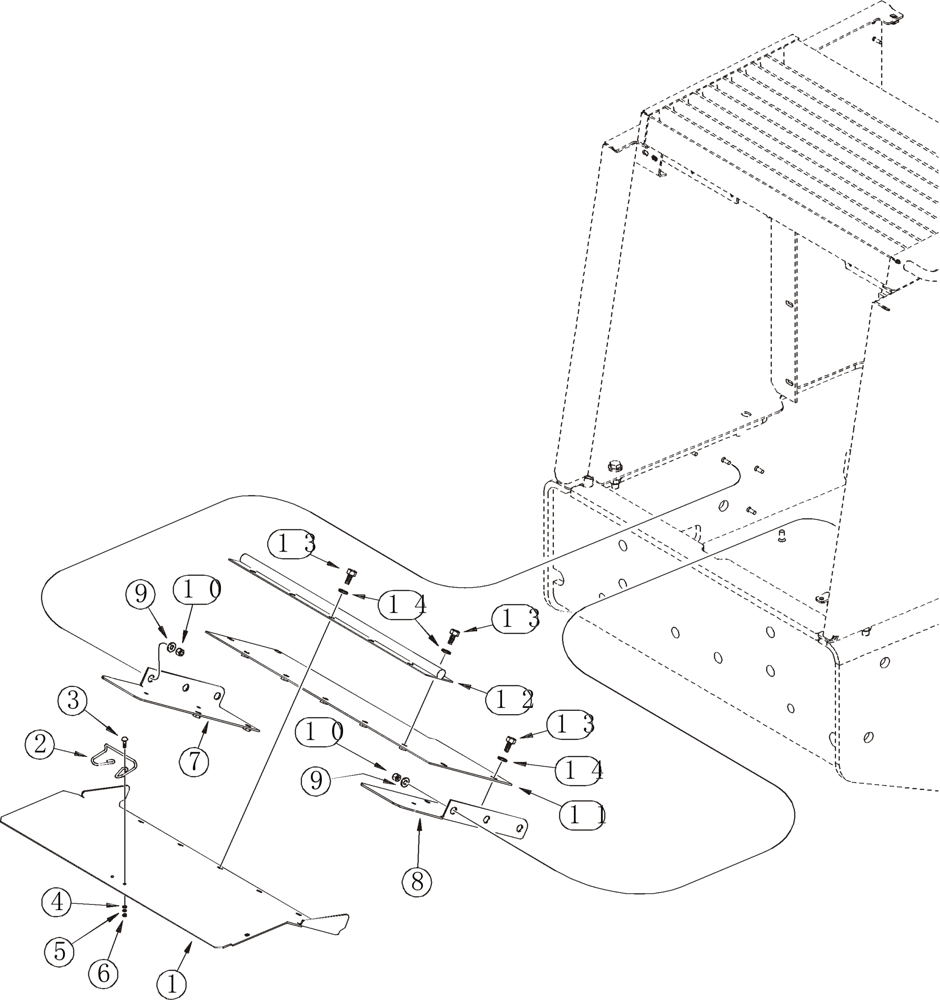

Запчасти Case 921C (09-25) - COVERS - BATTERY BOX (09) - CHASSIS

North American Models -JEE0126215

1шт.

1

232394A1

SHEET

Battery

1шт.

2

L125636

HANDLE

1шт.

3

711-5016

CARRIAGE BOLT,Sq Nk, M5 x 0.8 x 16mm, Cl 8.8

2шт.

4

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

5

892-11005

LOCK WASHER,M5

2шт.

6

824-1405

NUT,M5, Cl 5

2шт.

7

232259A1

SHEET

Left Hand

1шт.

8

232260A1

SHEET

Right Hand

1шт.

9

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

4шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

11

232261A1

SHEET

1шт.

12

L128887

HINGE

1шт.

13

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

14шт.

14

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

14шт.
