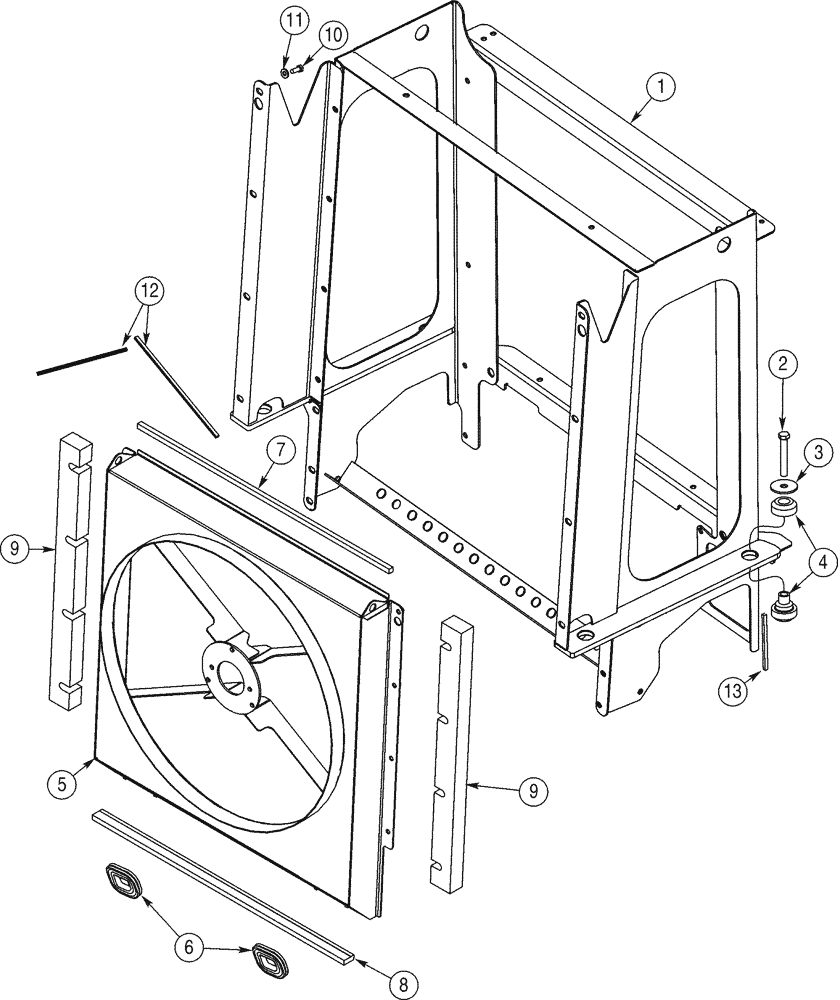

Запчасти Case 921C (09-24) - RADIATOR WRAPPER - FAN SHROUD (09) - CHASSIS

All Models JEE0126216-

1шт.

1

411741A1

FRAME ASSY

Radiator, Oil Cooler

1шт.

2

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

4шт.

3

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

33/64 x 2 x 1/8

4шт.

4

413153A1

RUBBER MOUNTING

4шт.

5

412634A1

FRAME ASSY

Fan

1шт.

6

430319A1

SEAL

290 mm (11-716 in), Cut From 90-2894T1

2шт.

7

444522A1

INSULATOR

970 mm (38-3/16 in), Fan Shroud, Top

1шт.

8

444523A1

INSULATOR

970 mm (38-3/16 in), Fan Shroud, Bottom

1шт.

9

444524A1

INSULATOR,75mm W x 896mm L x 50mm Thk

896 mm (35-1/4 in), Fan Shroud

2шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

8шт.

11

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

8шт.

12

433157A1

SEAL

345 mm (13-9/16 in), Cut From F64277X

2шт.

13

70-5848T1

SEAL

140 mm (5-1/2 in)

1шт.
