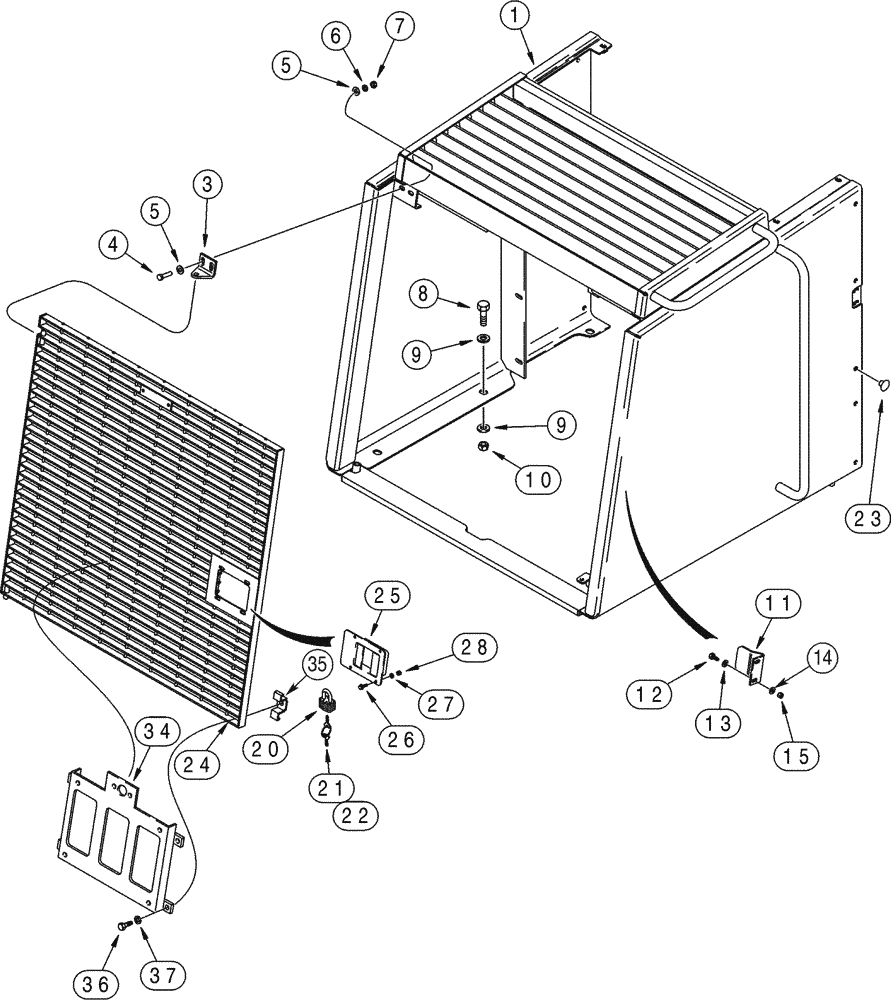

Запчасти Case 921C (09-22) - GUARD, RADIATOR - GRILLE (09) - CHASSIS

European Models -JEE0126215

1шт.

1

324525A2

CASING

Radiator, Replaces 324525A1

1шт.

3

L128614

SUPPORT

Grille Support

1шт.

4

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

6

892-11010

LOCK WASHER,M10

2шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

8

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

6шт.

9

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

12шт.

10

829-1416

NUT,M16, Cl 10

6шт.

11

L129755

FASTENER

Grille

1шт.

12

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

14

892-11008

LOCK WASHER,8mm ID

2шт.

15

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

Replaces 832-10408

2шт.

23

L126856

RIVET

8шт.

24

230990A1

GRILLE ASSY

1шт.

25

R56221

LATCH

1шт.

26

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

4шт.

27

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4шт.

28

832-10406

NUT,M6 x 1, Cl 8

4шт.

34

193446A1

PLATE

License Plate

1шт.

35

131987A1

CLIP

4шт.

36

426-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

4шт.

37

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

13

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.
