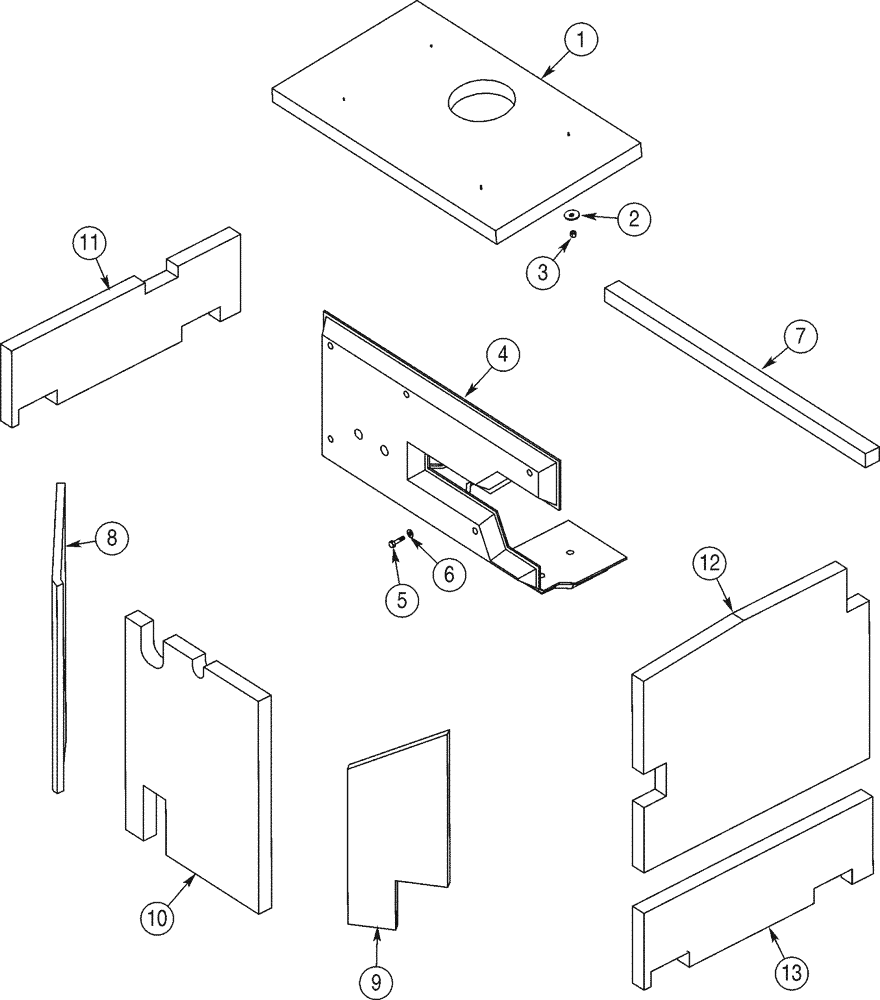

Запчасти Case 921C (09-18) - INSULATION - HOOD (09) - CHASSIS

European Models JEE0126216-

1шт.

1

440843A1

INSULATOR

Hood

1шт.

2

495-81145

WASHER,13/32" x 1 3/4" x .120"

4шт.

3

234-10431

CROWN NUT,Crown, 5/16"-18

4шт.

4

324447A1

SHIELD

Hydraulic Tank

1шт.

5

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

8шт.

6

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

8шт.

7

339650A1

FOAM INSULATION

Hydraulic Tank

1шт.

8

440846A1

INSULATOR

Left Hand Wall

1шт.

9

440845A1

INSULATOR

Right Hand Wall

1шт.

10

440844A1

INSULATOR

Center

1шт.

11

440841A1

INSULATOR

Left Hand Door, Bottom

1шт.

12

440840A1

INSULATOR

Right Hand Door, Top

1шт.

13

440839A1

INSULATOR

Right Hand Door, Bottom

1шт.
