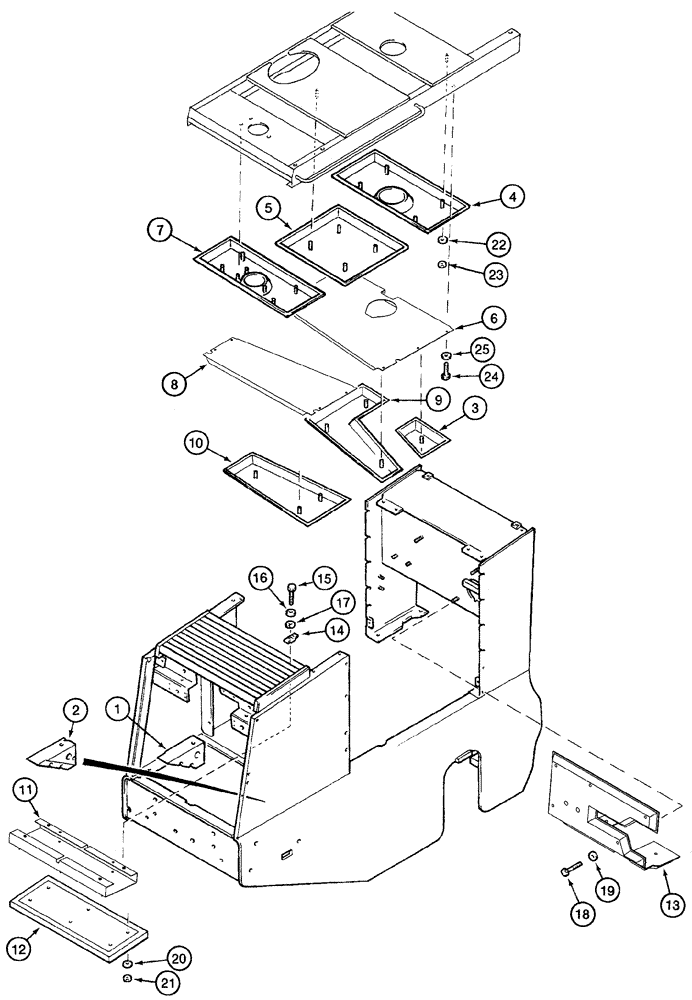

Запчасти Case 921C (09-17) - INSULATION - HOOD (09) - CHASSIS

European Models -JEE0126215

1шт.

1

232098A1

NOISE PROTECTION

Insulation, Left Hand

1шт.

2

232097A1

NOISE PROTECTION

Insulation, Right Hand

1шт.

3

234632A1

PANEL

Hood

1шт.

4

220267A1

PANEL

Hood

1шт.

5

220268A1

PANEL

Hood

1шт.

6

329445A1

PLATE

Hood

1шт.

7

220269A1

PANEL

Hood

1шт.

8

329448A1

PLATE

Hood

1шт.

9

225934A1

PANEL

Hood

1шт.

10

225935A1

PANEL

Hood

1шт.

11

230412A1

SUPPORT

Rear, No Longer Available, Order 347830A1

1шт.

11

347830A1

SUPPORT

Rear, Replaces 230412A1

1шт.

12

226620A1

NOISE PROTECTION

Top Rear

1шт.

13

324447A1

SHIELD

1шт.

14

R15257

CLAMP

4шт.

15

426-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

4шт.

16

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

4шт.

17

492-11038

LOCK WASHER,3/8"

4шт.

18

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

8шт.

19

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

8шт.

20

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

6шт.

21

231-1445

NUT,5/16"-18, GB

6шт.

22

496-41041

WASHER,13/32" x 1 1/8" x .134"

19шт.

23

234-10431

CROWN NUT,Crown, 5/16"-18

19шт.

24

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

10шт.

25

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

10шт.
