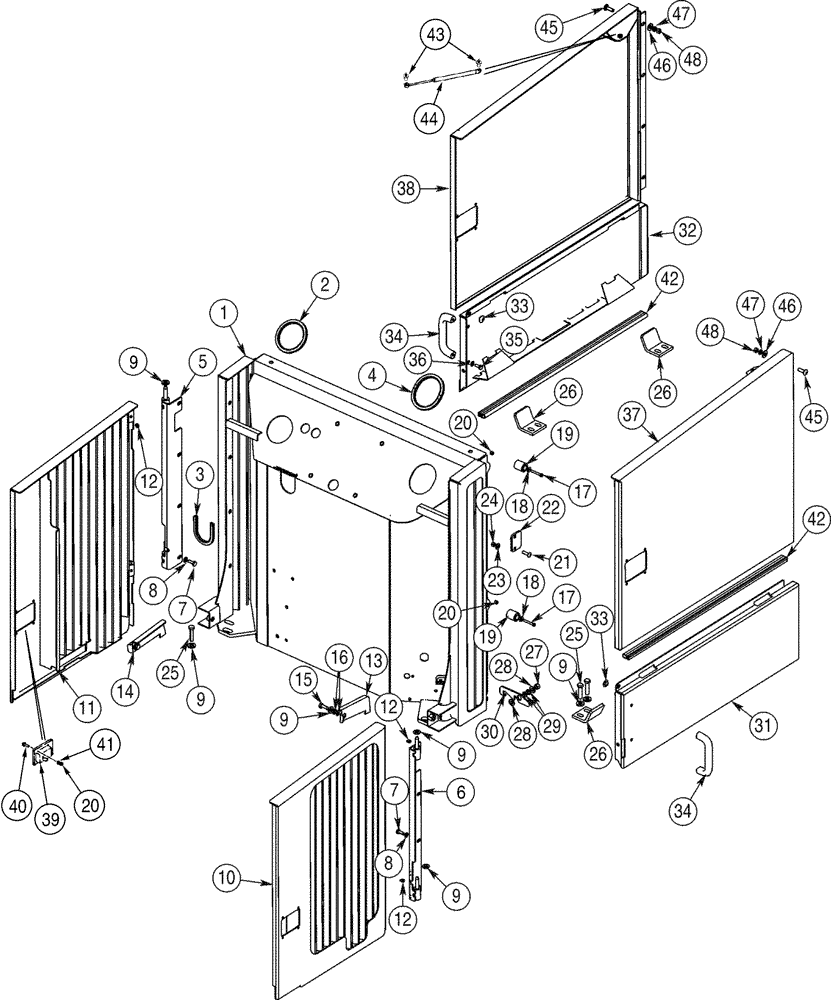

Запчасти Case 921C (09-16) - DOORS - ENGINE COMPARTMENT (09) - CHASSIS

All Models JEE0126216-

1шт.

1

413019A1

WALL

Firewall, Engine

1шт.

2

433156A1

SEAL

326 mm (12-13/16 in), Cut From 26-258

1шт.

3

L127454

LINING

220 mm (8-3/4 in), Cut From F64277

1шт.

4

433157A1

SEAL

345 mm (13-9/16 in), Cut From 26-258

1шт.

5

419762A1

CHANNEL

Left Side

1шт.

6

419761A1

CHANNEL

Right Side

1шт.

7

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

8шт.

9

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

18шт.

10

418844A1

DOOR ASSY.

Right Rear

1шт.

11

418846A1

DOOR ASSY.

Left Rear

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

13

426124A1

BRACKET

Right Hand Door

1шт.

14

431525A1

BRACKET

Left Hand Door

1шт.

15

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

16

892-11012

LOCK WASHER,M12

4шт.

17

864-6045

HEX SOC SCREW,M6 x 45mm, Cl 8.8

4шт.

18

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

19

L126483

BUMPER

4шт.

20

832-10406

NUT,M6 x 1, Cl 8

20шт.

21

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

4шт.

22

429986A1

PLATE

2шт.

24

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

25

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

12шт.

26

430369A1

PLATE

4шт.

27

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

29

892-11010

LOCK WASHER,M10

4шт.

30

430459A1

PLATE

2шт.

31

430326A1

DOOR ASSY.

Bottom, Right

1шт.

32

430328A1

DOOR ASSY.

Bottom, Left

1шт.

33

L126856

RIVET

2шт.

34

A23725

HANDLE

2шт.

35

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

4шт.

36

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

37

430121A1

DOOR ASSY.

Right Side

1шт.

38

430124A1

DOOR ASSY.

Left Side

1шт.

39

R56221

LATCH

4шт.

40

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

16шт.

41

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

16шт.

42

434652A1

SEAL

880 mm (34-5/8 in), Cut From 90-2894T1

2шт.

43

1304648C1

STUD

4шт.

44

L129243

GAS STRUT,498mm Extended, 321mm Compressed

2шт.

45

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

8шт.

46

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

8шт.

47

492-11038

LOCK WASHER,3/8"

8шт.

48

425-106

NUT,3/8"-16, Cl 5

8шт.

49

86983863

INSULATOR

Engine Door, Left Hand, Not Illustrated

1шт.

28

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

23

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.
