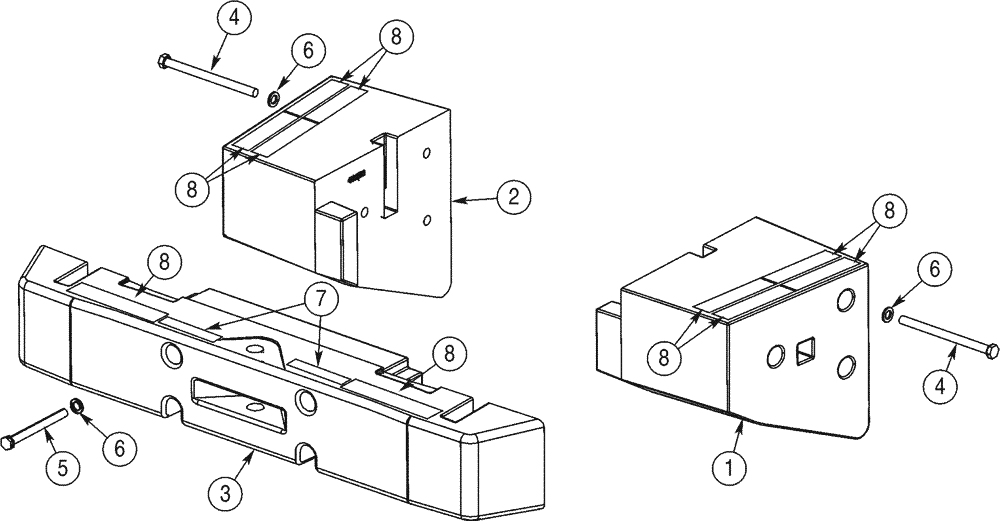

Запчасти Case 921C (09-12) - COUNTERWEIGHTS (09) - CHASSIS

All Models JEE0126216-

1шт.

Pound Total Weight 5400

1шт.

1

429023A1

BALANCER

748 kg (1650 lb), Rear, Right Hand

1шт.

2

429017A1

BALANCER

748 kg (1650 lb), Rear, Left Hand

1шт.

3

442769A1

BALANCER

952.5 kg (2100 lb), Rear, Center

1шт.

4

827-24330

BOLT,Hex, M24 x 3 x 330mm, Cl 10.9

M24 x 330; 10.9

6шт.

5

827-24250

BOLT,Hex, M24 x 3 x 250mm, Cl 10.9

4шт.

6

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

(26 ID x 44 x 5 mm)

10шт.

7

D55216

PAD,2" x 9"

2 x 9 in

2шт.

8

S243101

WEAR PAD

4 x 11 in

10шт.

9

101311A2

HITCH PIN

Drawbar; Not Illustrated

1шт.

10

D33805

PIN

Not Illustrated

1шт.
