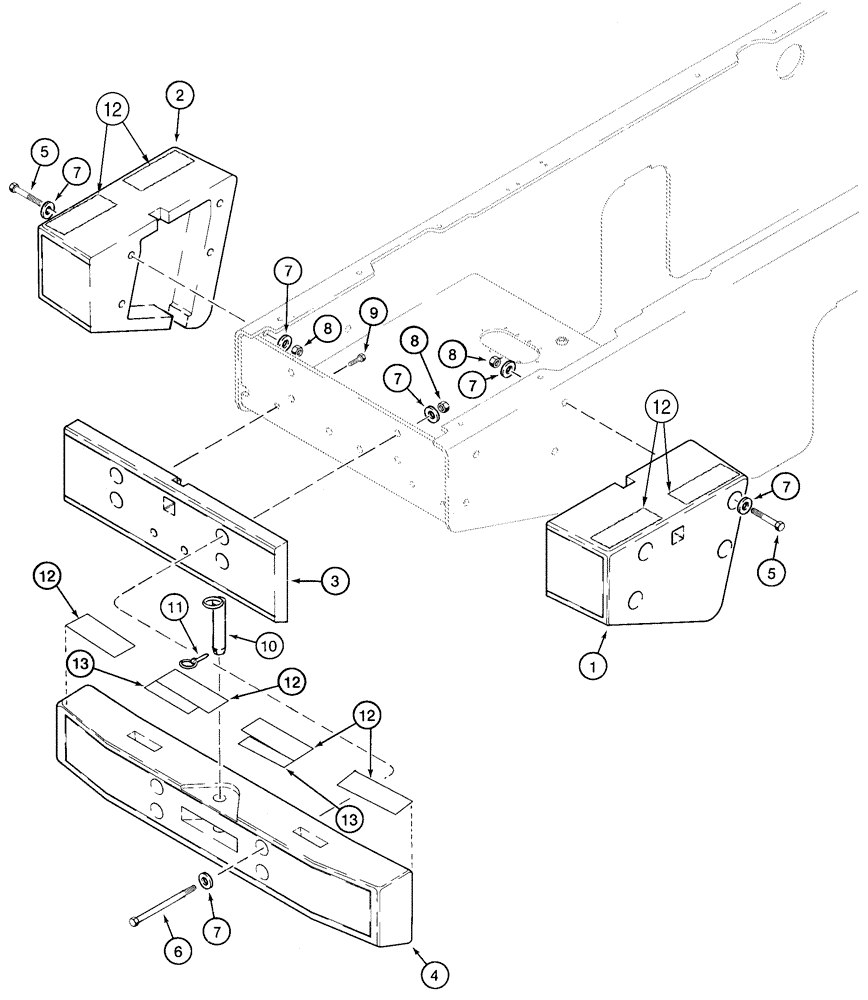

Запчасти Case 921C (09-11) - COUNTERWEIGHTS (09) - CHASSIS

All Models -JEE0126215

1шт.

Pound Total Weight 4785

1шт.

1

L129802

BALANCER

610.1 kg (1345 lb), Rear, Right Hand

1шт.

2

L129803

BALANCER

610.1 kg (1345 lb), Rear, Left Hand

1шт.

3

L129801

BALANCER

247.2 kg (545 lb), Rear, Center

1шт.

4

L129804

BALANCER

703.1 kg (1550 lb), Rear, Center, Outer

1шт.

5

326-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 8

8шт.

6

326-16192

BOLT,Hex, 1" - 8 x 12", Gr 8

4шт.

7

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

24шт.

8

429-1016

NUT,1"-8, G8

12шт.

9

426-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

3/4 x 1-3/4; 8

2шт.

10

101311A2

HITCH PIN

Drawbar

1шт.

11

D33805

PIN

1шт.

12

S243101

WEAR PAD

4 x 11 in, Anti Skid, Wide

8шт.

13

D55216

PAD,2" x 9"

2 x 9 in, Narrow

2шт.
