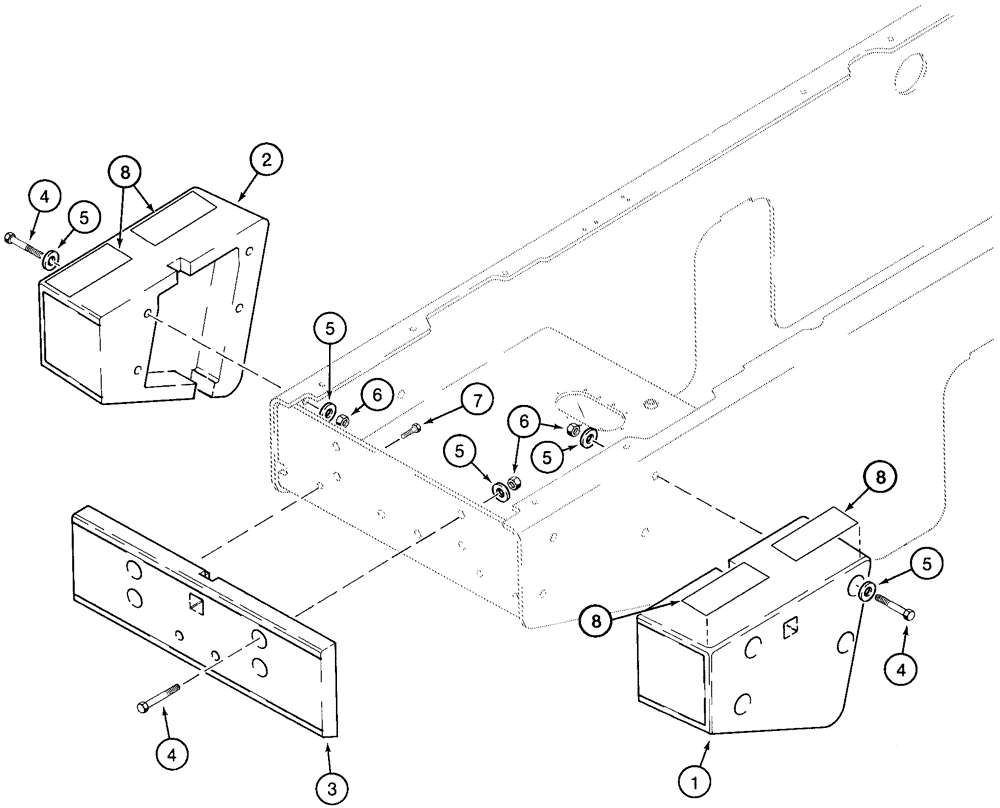

Запчасти Case 921C (09-10) - COUNTERWEIGHTS (09) - CHASSIS

All Models -JEE0126215

1шт.

Pound Total Weight 3235

1шт.

1

L129802

BALANCER

610.1 kg (1345 lb), Rear, Right Hand

1шт.

2

L129803

BALANCER

610.1 kg (1345 lb), Rear, Left Hand

1шт.

3

L129801

BALANCER

247.2 kg (545 lb), Rear, Center

1шт.

4

326-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 8

12шт.

5

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

20шт.

6

429-1016

NUT,1"-8, G8

12шт.

7

426-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

3/4 x 1-3/4; 8

2шт.

8

S243101

WEAR PAD

4 x 11 in, Anti Skid, Wide

4шт.
