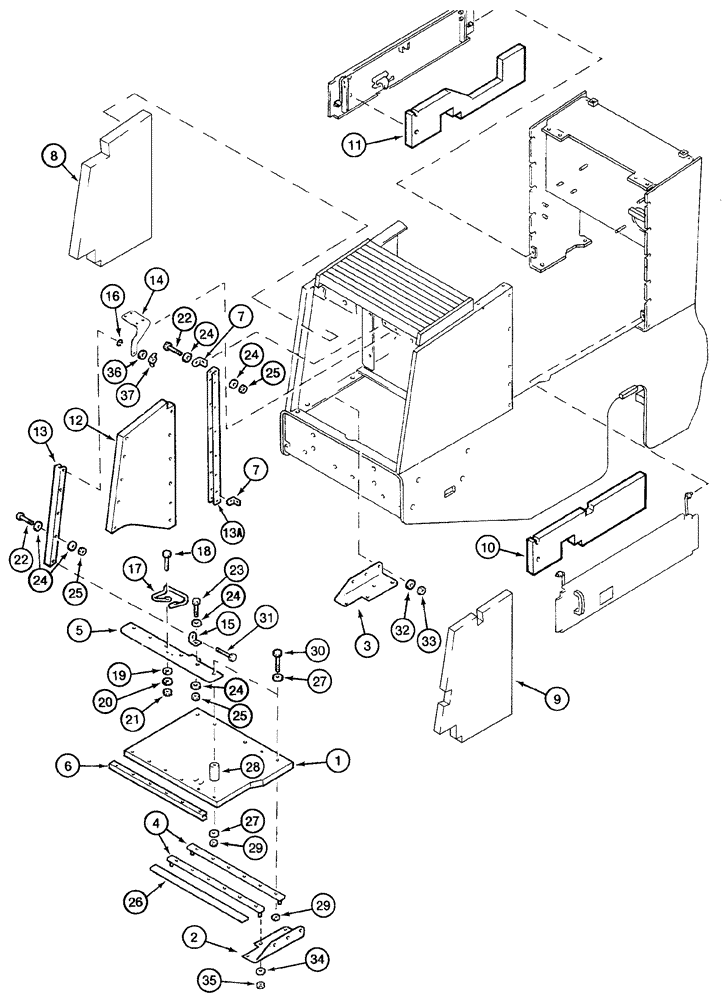

Запчасти Case 921C (09-09) - INSULATION - REAR CHASSIS (09) - CHASSIS

European Models -JEE0126215

1шт.

1

229257A2

NOISE PROTECTION

Sound Insulation

1шт.

2

232502A1

SUPPORT

Cover Support, Right Hand

1шт.

3

229210A1

SUPPORT

Cover Support, Left Hand

1шт.

4

234373A1

SUPPORT

2шт.

5

229209A1

SHEET

Front

1шт.

6

234804A2

SHEET

Front

1шт.

7

234631A1

SUPPORT

2шт.

8

324524A1

FOAM INSULATION

Left Hand Guard

1шт.

9

324523A1

FOAM INSULATION

Right Hand Guard

1шт.

10

184319A1

NOISE PROTECTION

Door, Lower Right Hand

1шт.

11

184318A1

NOISE PROTECTION

Door, Lower Left Hand

1шт.

12

226298A1

NOISE PROTECTION

Radiator

1шт.

13

237734A1

SHEET

Rear

1шт.

13a

226379A1

SUPPORT

Front

1шт.

14

310536A1

SUPPORT

Panel, Top Rear

1шт.

15

229258A1

SUPPORT

Panel, Bottom, Rear

1шт.

16

238-5109

O-RING,0.103" Thk x 0.312" ID, -109, Cl 5, 75 Duro

2шт.

17

L125636

HANDLE

Hold Down

1шт.

18

711-5016

CARRIAGE BOLT,Sq Nk, M5 x 0.8 x 16mm, Cl 8.8

2шт.

19

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

20

892-11005

LOCK WASHER,M5

2шт.

21

824-1405

NUT,M5, Cl 5

2шт.

22

827-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

2шт.

25

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

26

239321A1

SHEET

1шт.

27

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

33шт.

28

D136111

SPACER

6шт.

29

832-10406

NUT,M6 x 1, Cl 8

24шт.

30

827-6030

BOLT,Hex, M6 x 30mm, Cl 10.9

3шт.

31

827-6060

BOLT,Hex, M6 x 60mm, Cl 10.9

6шт.

32

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

4шт.

33

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

34

496-41041

WASHER,13/32" x 1 1/8" x .134"

6шт.

35

231-1446

NUT,3/8" - 16, Gr 5

6шт.

36

492-11038

LOCK WASHER,3/8"

2шт.

37

L128214

THUMB SCREW

2шт.

23

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

24

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.
