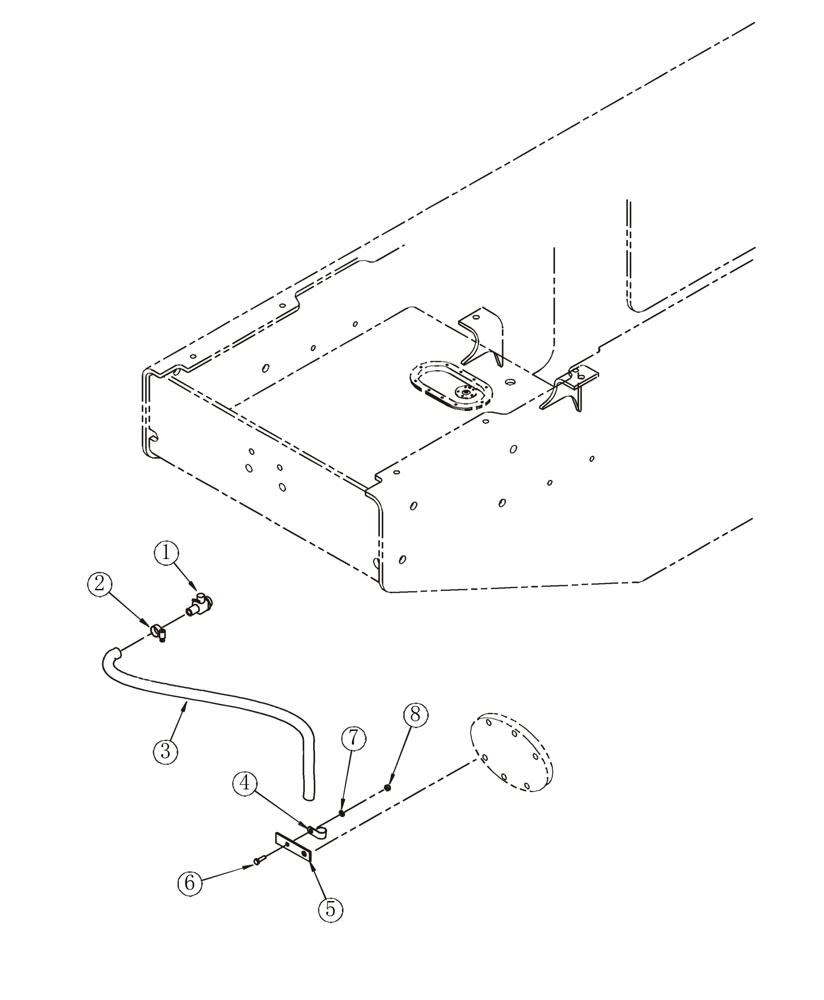

Запчасти Case 921C (02-15) - OIL DRAIN (02) - ENGINE

All Models -JEE0126215

1шт.

1

242227A1

DRAIN VALVE

Gasket needs to be Ordered from Cummins

1шт.

2

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

1шт.

3

245754A1

HOSE,19.1mm ID x 725mm L, SAE 100R6

1шт.

4

R21385

CLAMP

1шт.

5

114512A1

SUPPORT

1шт.

6

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

1шт.

7

492-11031

LOCK WASHER,5/16"

1шт.

8

425-105

NUT,5/16"-18, G5

1шт.

1

242227A1

DRAIN VALVE

1шт.

2

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

1шт.

3

245754A1

HOSE,19.1mm ID x 725mm L, SAE 100R6

1шт.

4

515-22270

CLAMP,1-1/16", Insul, 5/16" Bolt

1-1/16 ID

1шт.

5

114512A1

SUPPORT

1шт.

7

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

1шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.
