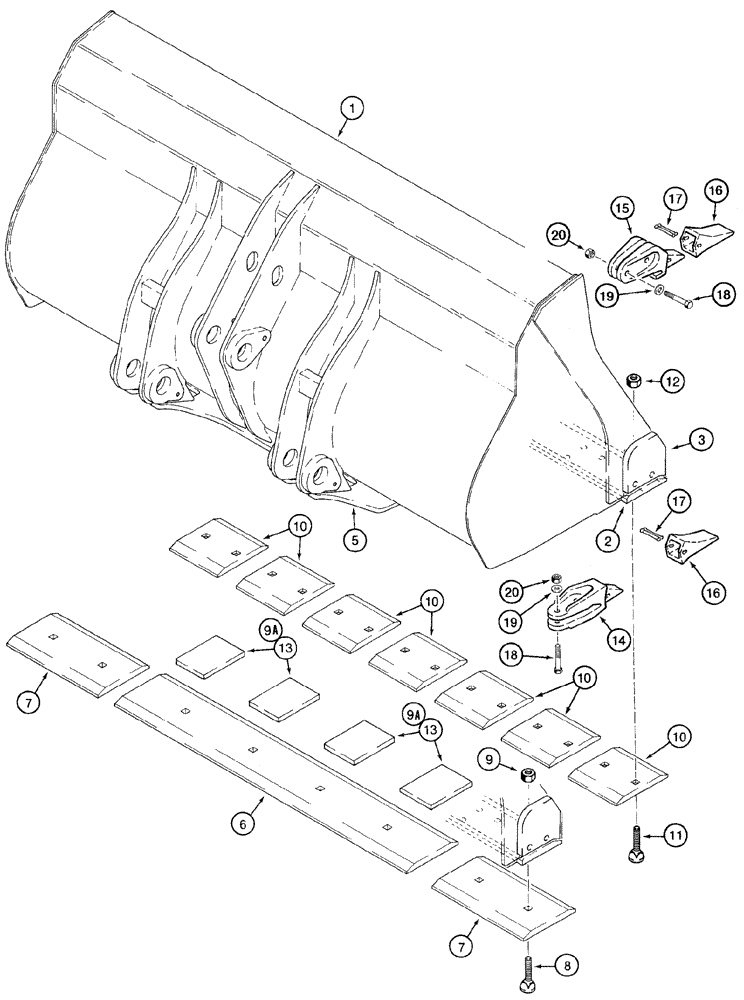

Запчасти Case 921C (09-04) - BUCKETS - LOADER (09) - CHASSIS

North America Only

1шт.

Bucket 3,63 cu m (4.75 cu yd)

1шт.

236062A1

Bucket, Loader, Order From Machinery Price List, Incl. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket

1шт.

2

L129096

EDGE, CUTTING

Front, Welded On

1шт.

3

L130041

EDGE, CUTTING

Corner, Welded On

2шт.

4

L130042

EDGE

Side, Welded On

2шт.

5

236063A1

PLATE

Bucket Ear

1шт.

Bolt-On Three-Piece Cutting Edge

1шт.

6

L128861

EDGE, CUTTING

Center

1шт.

7

L128862

EDGE, CUTTING

585mm/23.03"

2шт.

8

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

1 x 3-1/2; 8

8шт.

9

329-1016

NUT,1"-8, G8

8шт.

9a

L129601

LARGE PLATE

PLATE, LARGE Welded On

4шт.

Bolt-On Seven-Piece Cutting Edge

1шт.

10

L129097

EDGE, CUTTING

Bolt On

7шт.

11

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

1 x 3-1/2; 8

14шт.

12

429-1016

NUT,1"-8, G8

14шт.

13

L129601

LARGE PLATE

PLATE, LARGE Welded On

4шт.

Bucket Teeth

1шт.

254608A1

TEETH

Center, Incl. 14, 16, 17

6шт.

254612A1

TEETH

Corner, Incl. 15, 16, 17

2шт.

14

NSS

NOT SOLD SEPARAT

Shank, Center

1шт.

15

NSS

NOT SOLD SEPARAT

Shank, Corner

1шт.

16

254807A1

TOOTH

Standard

1шт.

16

254810A1

TOOTH

Abrasion, Not Shown

1шт.

16

254809A1

TOOTH

Penetration, Not Shown

1шт.

16

254811A1

TOOTH

Abrasion/Penetration, Not Shown

1шт.

17

254808A1

PIN

Point Retaining

1шт.

18

326-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

16шт.

19

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

Hardened

16шт.

20

429-1016

NUT,1"-8, G8

16шт.
