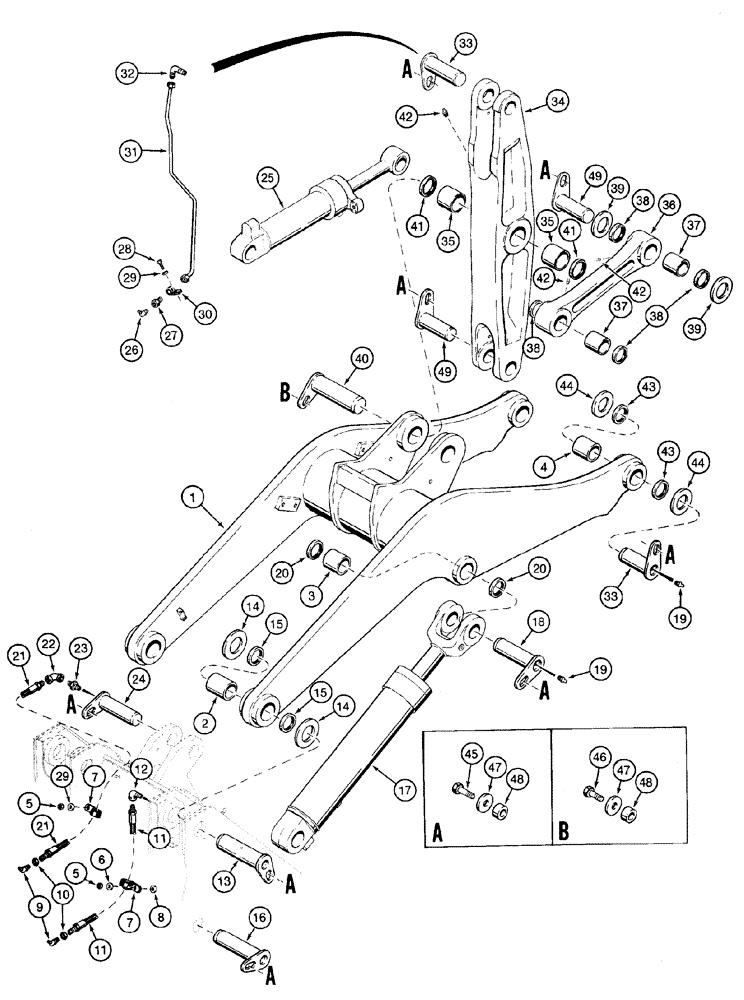

Запчасти Case 921C (09-03) - FRAME - LOADER LIFT (09) - CHASSIS

L127609

ARM, LIFT

Incl. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Frame, Loader Lift

1шт.

2

L127806

BUSHING

At Chassis

2шт.

3

L127972

BUSHING

At Lift Cylinder

2шт.

4

L129966

BUSHING

At Bucket

2шт.

5

231-1446

NUT,3/8" - 16, Gr 5

3шт.

6

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

4шт.

7

49832

CLAMP

5/16 ID

5шт.

8

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

3шт.

9

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

3шт.

10

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

3шт.

11

L114211

HOSE,4.83mm ID x 549mm L

2шт.

12

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

2шт.

13

L127848

HANDLED SHAFT

2шт.

14

L128823

WASHER

4шт.

15

L128528

RING,108.03mm ID x 119.46mm OD x 8.3mm Thk

4шт.

16

L127849

HANDLED SHAFT

2шт.

17

1986603C1

CYLINDER ASSY.

178 ID x 867 strk, Loader Lift, See Figure 08-23

2шт.

18

L128356

HANDLED SHAFT

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

7шт.

20

L128529

SEAL,95.2mm ID x 107.9mm OD x 8.3mm Thk

4шт.

21

L54694

HOSE,4.8mm ID x 1041mm L

1041 mm (41 in)

1шт.

22

217-1050

90 ELBOW,1/8" - 27 NPTF Female

1шт.

23

221-103

FITTING

1/8 PT x 1

1шт.

24

L127847

HEADED PIN,88.9mm OD x 287.7mm L

1шт.

25

1346171C3

CYLINDER ASSY.

203 ID x 745 strk, Bucket Tilt, See Figure 08-24

1шт.

26

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

27

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

1шт.

28

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

29

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

30

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

31

L129909

TUBE,0.625" OD

Lubrication Line

1шт.

32

218-1066

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF, LG

1шт.

33

L127847

HEADED PIN,88.9mm OD x 287.7mm L

2-3шт.

L129924

ROCKER ARM

Loader Bucket, Incl. 34, 35

1шт.

34

NSS

NOT SOLD SEPARAT

Bellcrank

1шт.

35

L128185

BUSHING

2шт.

L129925

ROCKER ARM

Bucket Dump, Incl. 36, 37

1шт.

36

NSS

NOT SOLD SEPARAT

Link

1шт.

37

87613422

BUSHING,95.5mm ID x 107.82mm OD x 114.5mm L

BUSHING, LARGE; Replaces L129906

2шт.

38

L128529

SEAL,95.2mm ID x 107.9mm OD x 8.3mm Thk

4шт.

39

105917A1

WASHER,98mm ID x 176mm OD x 3.5mm Thk

If Used

2шт.

40

L128354

HANDLED SHAFT

1шт.

41

L128527

RING,111.43mm ID x 127.13mm OD x 7.95mm Thk

2шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

3шт.

43

1346341C1

WIPER SEAL,86.49mm ID x 101.73mm OD x 7.95mm Thk

4шт.

44

87642053

WASHER,91mm ID x 170mm OD x 3.5mm Thk

3.5 mm Thk, 91 mm ID; Replaces L128721 90 mm ID Washer Used on Some Models; If Used

4шт.

45

426-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

3/4 x 1-1/2; 8

1шт.

46

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

9-12шт.

47

NLS

NO LONGER SERVICED

10-13шт.

48

L127846

SPACER,22.2mm ID x 44.45mm OD x 14.3mm L

10-13шт.

49

L129897

PIN,95.25mm OD x 275mm L

1-2шт.
