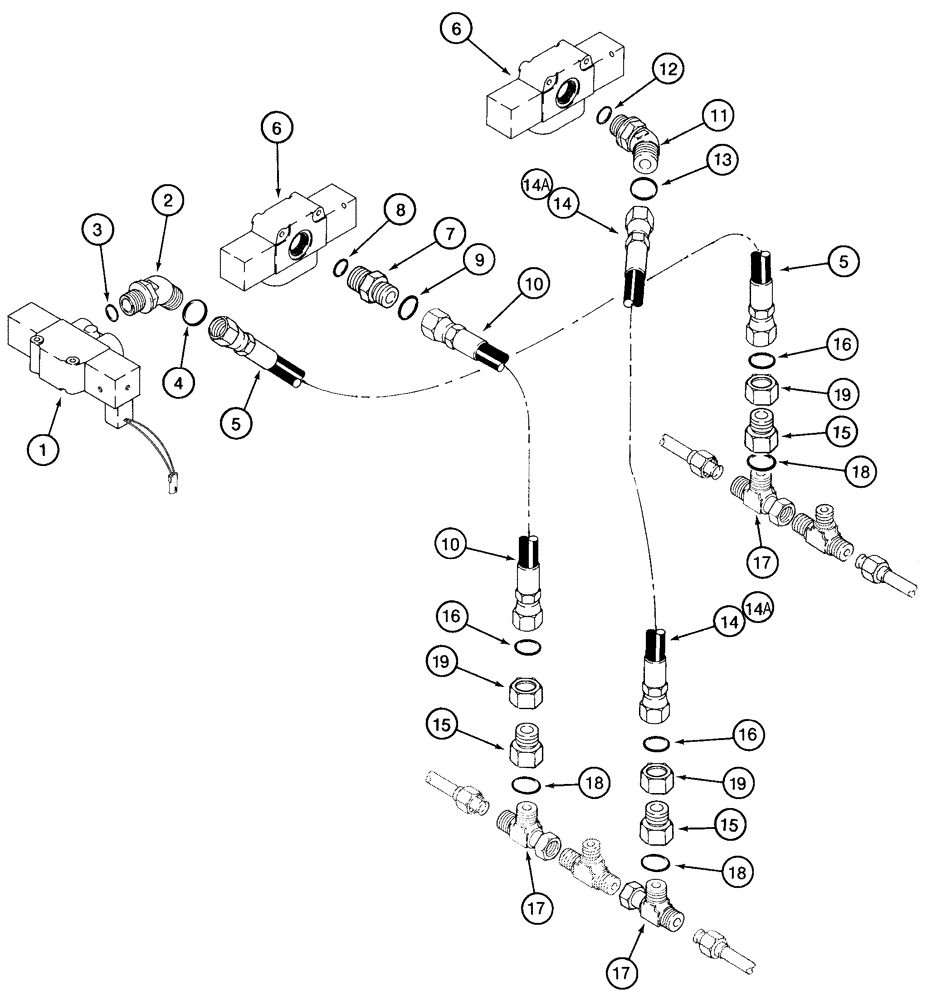

Запчасти Case 921C (08-56) - HYDRAULICS - RIDE CONTROL (08) - HYDRAULICS

Master and Directional Valves to Lift Tubes

1шт.

1

107866A1

VALVE

Master Directional, See Figure 08-57

1шт.

2

201-351

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

1-7/16 fc x 1-1/16, Incl. 3, 4

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

5

131329A1

HOSE ASSY.

648 mm (25-5/8 in), Cylinder Rod End, Left Hand

1шт.

6

106488A1

VALVE

Directional Control, See Figure 08-58

2шт.

7

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Incl 8, 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

10

131329A1

HOSE ASSY.

648 mm (25-5/8 in), Cylinder Closed End, Right Hand

1шт.

11

201-351

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

1-7/16 fc x 1-1/16, Incl. 12, 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

14

131326A1

HOSE ASSY.

692 mm (27-1/4 in), Cylinder Closed End, Left Hand, If Used

1шт.

14a

131329A1

HOSE ASSY.

648 mm (25-5/8 in), Cylinder Closed End, Left Hand, If Used

1шт.

15

201-150

REDUCER,1 11/16"-12 Male x 2"-12 Fem, ORFS

2 sw x 1-11/16 fc, Incl. 16

3шт.

16

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

17

201-437

TEE,2"-12 ORFS x 2"-12 Sw Run

2 fc sl x fc sl x sw fc, Incl. 18

3шт.

18

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

2шт.

19

203-907

TUBE NUT,2"-12 ORFS

3шт.

3

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

8

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

12

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.
