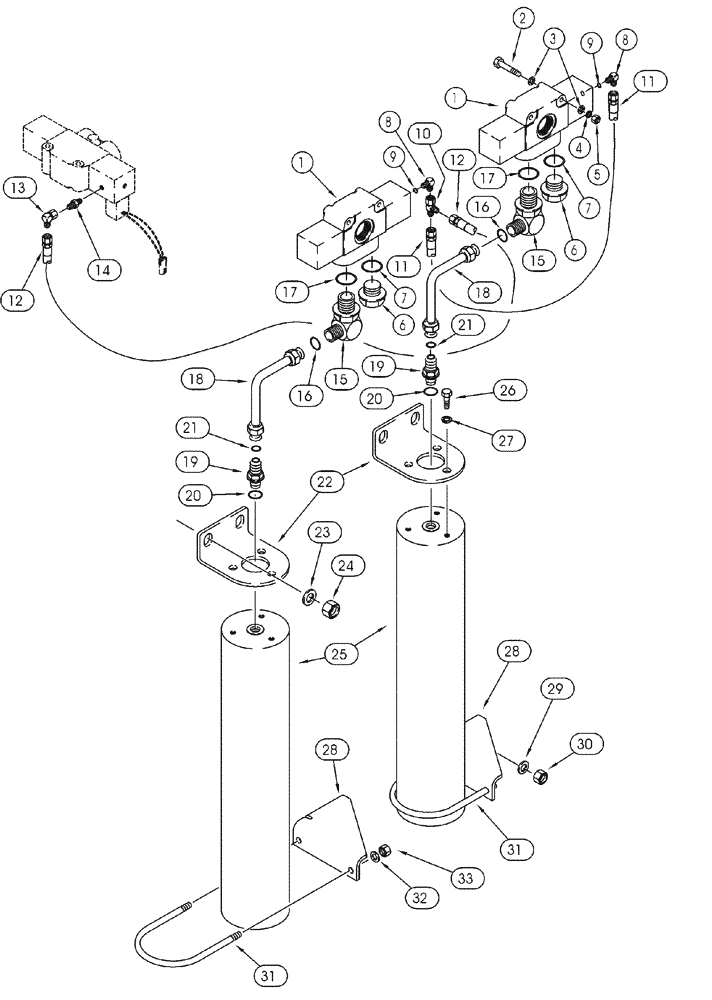

Запчасти Case 921C (08-55) - HYDRAULICS - RIDE CONTROL (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
Directional Valve to Master Valve and Accumulator
1шт.
1
106488A1
VALVE
Directional Control, See Figure 08-58
2шт.
2
426-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8
4шт.
3
496-21041
WASHER,13/32" x 13/16" x .089", HDN
8шт.
4
492-11038
LOCK WASHER,3/8"
4шт.
5
425-106
NUT,3/8"-16, Cl 5
4шт.
6
218-5158
PLUG,Hex Hd, 1 1/16"-12 ORB
Incl. 7
2шт.
7
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
8
50-3561T1
FITTING
9/16 fl x 7/16 Or, Incl. 9
2шт.
9
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
10
218-5222
TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run
1шт.
11
107821A1
HOSE ASSY.
600 mm (23-5/8 in)
1шт.
12
131423A1
HOSE ASSY.
914 mm (36 in)
1шт.
13
218-980
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw
1шт.
14
218-453
HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF
1шт.
15
201-307
ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB
1-3/16 fc x 1-1/16 Or, Incl. 16, 17
2шт.
16
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal End
1шт.
17
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Boss End
1шт.
18
131906A1
TUBE,19.04 mm OD, 159, 134 mm Length
2шт.
19
201-141
HYD CONNECTOR,1 3/16"-12 ORFS x 3/4"-16 ORB
Incl. 20, 21
2шт.
20
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal End
1шт.
21
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
Boss end
1шт.
22
130133A1
SUPPORT
2шт.
23
496-21053
WASHER,17/32" x 1 1/16" x .134"
4шт.
24
231-1448
NUT,1/2"-13, GB
4шт.
25
130354A1
ACCUMULATOR
4 in dia, See Page(s) 8-171
2шт.
26
414-814
BOLT,Hex, 1/2" - 20 x 7/8", Gr 5
6шт.
27
80679
LOCK WASHER,1/20.507 CST ZND
6шт.
28
130134A1
SUPPORT
2шт.
29
496-21053
WASHER,17/32" x 1 1/16" x .134"
4шт.
30
231-1448
NUT,1/2"-13, GB
4шт.
31
L128472
U-BOLT
2шт.
32
496-21041
WASHER,13/32" x 13/16" x .089", HDN
4шт.
33
231-1446
NUT,3/8" - 16, Gr 5
4шт.
Выбрано товаров: 34
