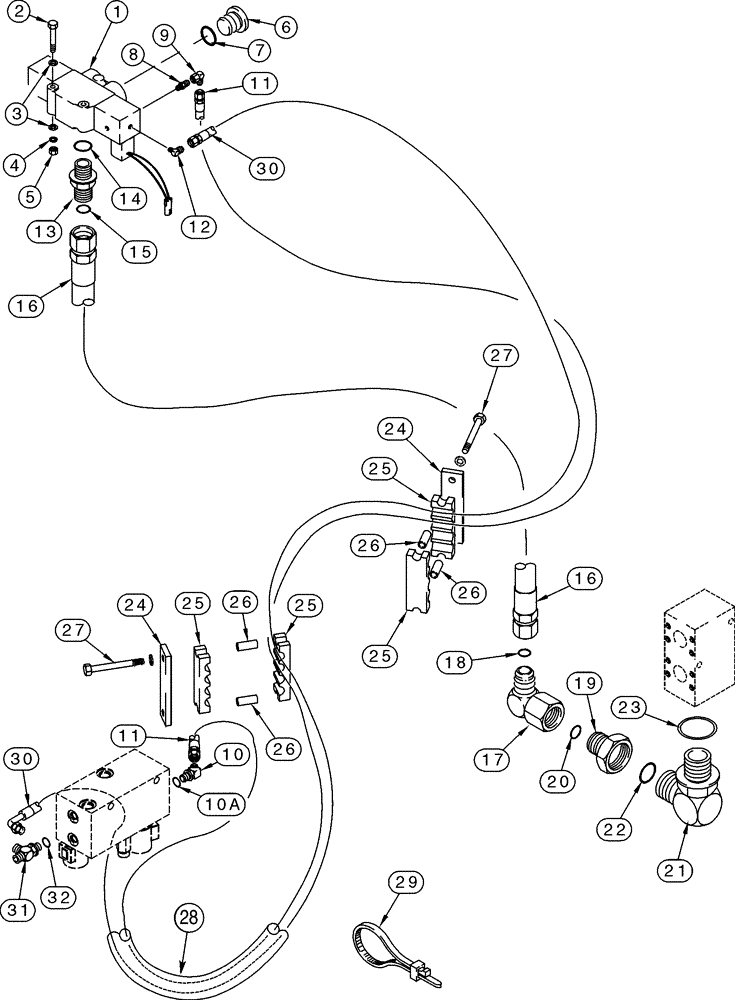

Запчасти Case 921C (08-54) - HYDRAULICS - RIDE CONTROL (08) - HYDRAULICS

Master Valve to Return Manifold and Combination Valve

1шт.

1

107866A1

VALVE

Master Directional, See Figure 08-57

1шт.

2

426-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

2шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

425-106

NUT,3/8"-16, Cl 5

2шт.

6

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

1шт.

9

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

10

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl.10A

1шт.

11

284663A1

HOSE,9.52 mm ID x 2120.00 mm, SAE 100R3 Class 5

1шт.

12

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

1шт.

13

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Incl 14, 15

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

16

131422A1

HOSE ASSY.

457 mm (18 in), Master Valve to Return Manifold

1шт.

17

201-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

1-7/16 fc x sw, Incl. 18

1шт.

19

201-118

REDUCER,1-7/16" - 12 Male ORFS x 1-11/16" - 12 Male ORFS

1-11/16 sw x 1-7/16 fc, Incl. 20

1шт.

21

201-369

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-7/8" - 12 Male ORB

Incl.22, 23

1шт.

22

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal End

1шт.

23

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

Boss End

1шт.

24

L124270

LARGE PLATE

PLATE, LARGE

2шт.

25

L124271

FIXING BRACKET

4шт.

26

L126936

SPACER

4шт.

27

426-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

3/8 x 4-1/2; 8, Two Spool Control Valve

4шт.

27

413-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

3/8 x 6-1/2, Four Spool Control Valve

4шт.

28

S120426

TUBE

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

30

284664A1

HOSE ASSY.

2172 mm (85-9/16 in)

1шт.

31

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Incl. 32

1шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

18

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

20

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

10a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

32

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
