(08-49) - VALVE ASSY - REMOTE CONTROL, AUXILIARY

Запчасти Case 921C (08-49) - VALVE ASSY - REMOTE CONTROL, AUXILIARY (08) - HYDRAULICS

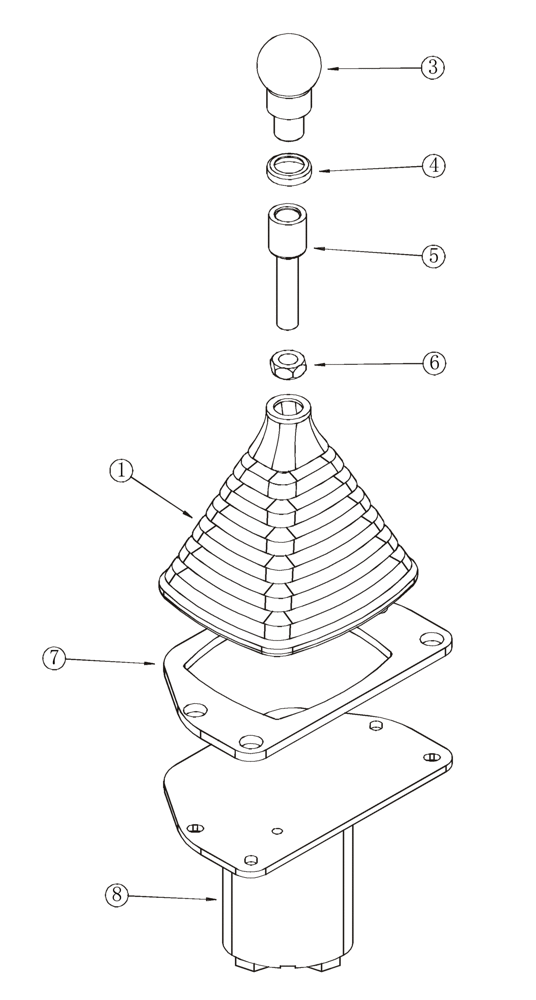

Схема запчастей Case 921C - (08-49) - VALVE ASSY - REMOTE CONTROL, AUXILIARY (08) - HYDRAULICS
7
8
1
6
3
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Single Lever With Two Spool Valve

1шт.

299238A1

VALVE

Single Lever Remote, Auxiliary, Incl. 1 - 8

1шт.

1

275860A1

BOOT

1шт.

3

291477A1

BALL KNOB

1шт.

4

291474A1

WASHER

1шт.

5

299184A1

PLUNGER

1шт.

6

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

7

316777A1

GASKET

1шт.

8

240921A1

VALVE

Two Spool, See Figure 08-50

1шт.

Also used with 292085A1 or 419639A1 single lever two spool valve. When combined, they form a dual lever four spool valve combination

1шт.
