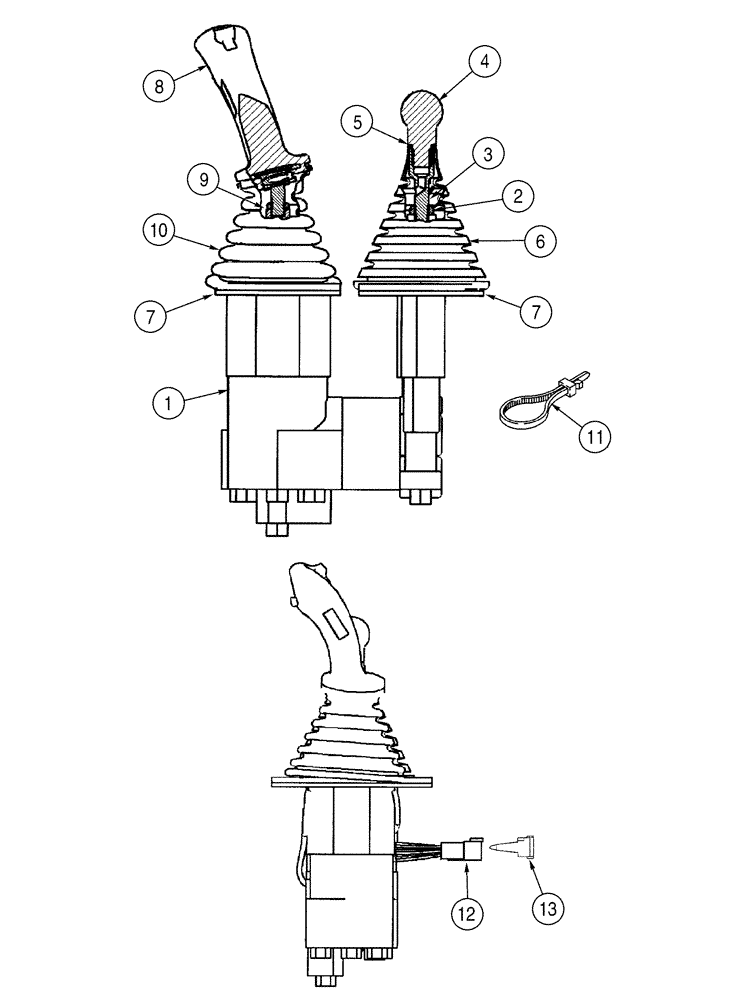

Запчасти Case 921C (08-45) - VALVE ASSY - REMOTE CONTROL, DUAL LEVER (08) - HYDRAULICS

Dual Lever With Three Spool Valve

1шт.

If Used

1шт.

429059A1

VALVE

Dual Lever Remote, Incl. 1 - 13, If Used

1шт.

1

428374A1

VALVE

Remote Control, Three Spool, See Figure 08-46

1шт.

2

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

3

299184A1

PLUNGER

1шт.

4

291477A1

BALL KNOB

1шт.

5

291474A1

WASHER

1шт.

6

275860A1

BOOT

1шт.

7

316777A1

GASKET

2шт.

8

428265A1

HANDLE

1шт.

87588665R

REMAN-JOYSTICK

921C CASE WHEEL LOADER (S/N JEE0155000 & BEFORE) (1/99-), Reman for New P/N 428265A1

1шт.

87588665C

CORE-JOYSTICK

Return Number

1шт.

9

829-4412

NUT,Thin, M12 x 1.75, Cl 5

1шт.

10

414321A1

BOOT

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

12

323777A1

CONNECTOR, ELEC

CONNECTOR

1шт.

13

323776A1

WEDGE

1шт.
