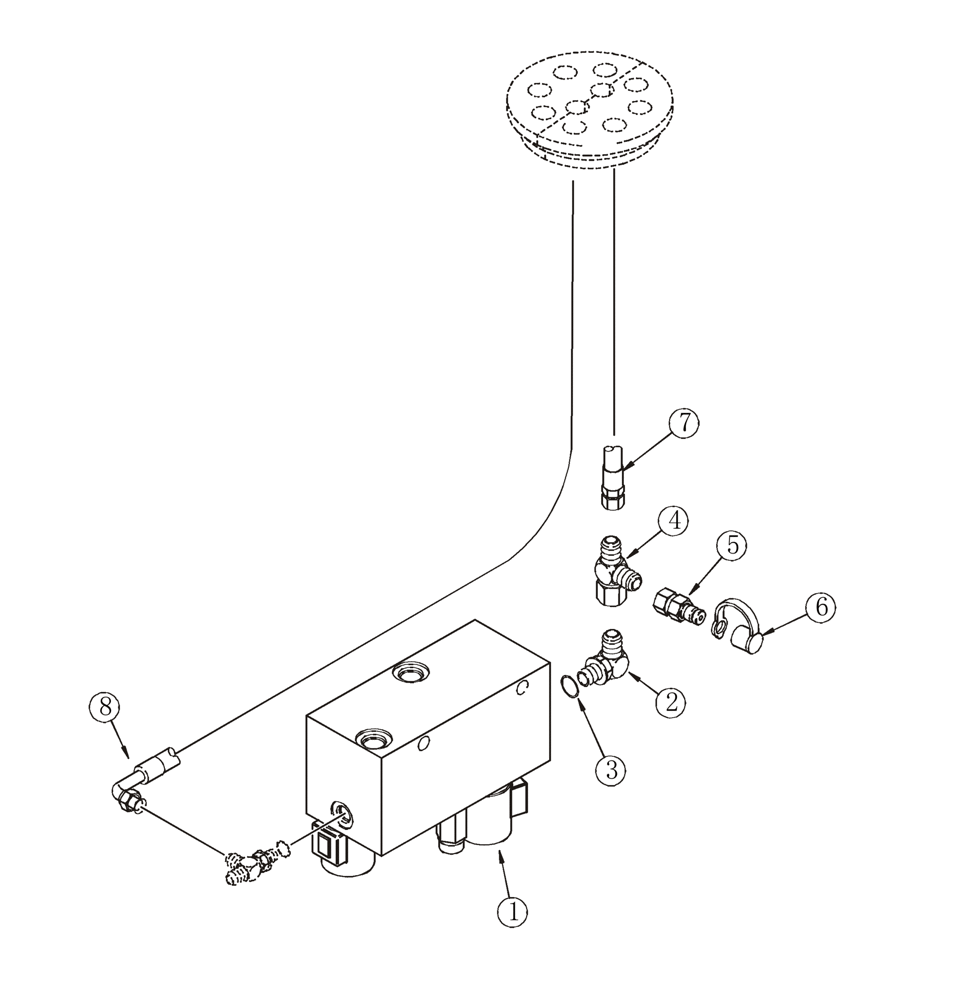

Запчасти Case 921C (08-38) - HYDRAULICS - LOADER CONTROL, REMOTE (08) - HYDRAULICS

Supply and Return to Hydraulic Reservoir

1шт.

1

REF

INSTRUCTION

Valve, Pressure, Combination Valve, See Figure 07-08, 08-51, 08-52

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Incl. 3

1шт.

4

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

5

101792A1

COUPLING

Diagnostic

1шт.

6

H434163

DUST CAP

1шт.

7

232862A1

HOSE ASSY.

1189 mm (46-13/16 in), Pressure

1шт.

8

232861A1

HOSE ASSY.

1314 mm (51-3/4 in), Return, Attaches to 218-5243 Tee at Combination Valve, Figure 07-09, If Used

1шт.

8

293988A1

HOSE ASSY.

1400 mm (55-1/8 in), Return, Attaches to 218-5243 Tee at Combination Valve, See Figure 07-08, If Used

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
