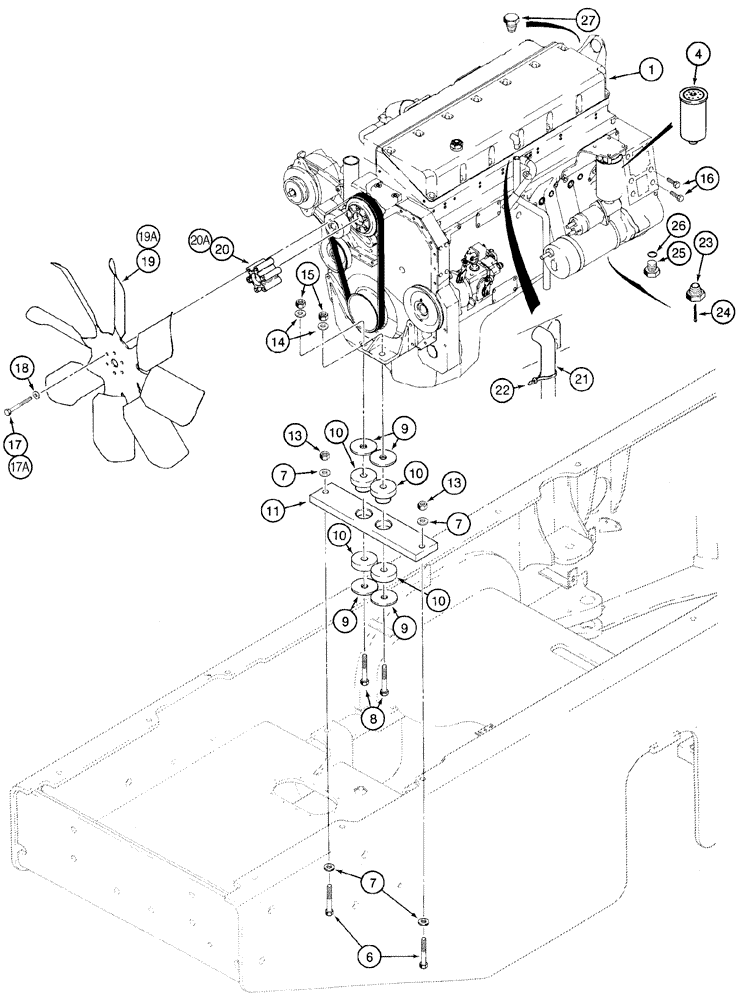

Запчасти Case 921C (02-12) - MOUNT, ENGINE - FAN (02) - ENGINE

All Models -JEE0126215

1шт.

1

186424A3

M11-C270 Cummins, Emissions Certified Engine, Replaces 186424A1, 186424A2

1шт.

4

90-3941T1

SEPARATOR

Fuel, See Figure 03-03

1шт.

6

827-20085

BOLT,Hex, M20 x 2.5 x 85mm, Cl 10.9

M20 x 80; 10.9

2шт.

7

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.

8

827-20140

BOLT,Hex, M20 x 2.5 x 140mm, Cl 10.9

2шт.

9

L129148

WASHER

4шт.

10

114360A1

HITCH DAMPER

Set Of Two

2шт.

11

L129153

LARGE PLATE

PLATE, LARGE

1шт.

13

832-41320

NUT,M20 x 2.5, Cl 10

M20; 10.9

2шт.

14

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm

2шт.

15

832-41320

NUT,M20 x 2.5, Cl 10

M20; 10.9

2шт.

16

627-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd

4шт.

17

426-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

3/8 x 4-1/2; 8, North America Only

6шт.

17b

426-680

BOLT,Hex, 3/8" - 16 x 5", Gr 8

3/8 x 5; 8, Europe Only

6шт.

18

496-21041

WASHER,13/32" x 13/16" x .089", HDN

6шт.

19

L129967

FAN

North America Only

1шт.

19a

334738A1

FAN

31 in, Europe Only, Replaces 223448A1

1шт.

20

221673A1

SPACER

North America Only

1шт.

20a

234168A1

SPACER

Europe Only

1шт.

21

L128677

HOSE,15.9mm ID x 1230mm L

Breather

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

23

L113178

PLUG

1шт.

24

432-1416

COTTER PIN,7/32" x 1"

7/32 x 1

1шт.

25

214389

PLUG,3/4" - 16 ORB

Includes Ref. 26

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

217-407

PLUG,Hex Hd, 3/8" - 18 NPT

1шт.

Note: See your authorized Cummins engine dealer for servicable parts and engine replacement

1шт.

Nota : Consulter le concessionnaire de moteur Cummins pour les pièces détachées et le remplacement du moteur.

1шт.

Nota: Consultar con el concesionario autorizado de motores Cummins para el repuesto de piezas y motores

1шт.
