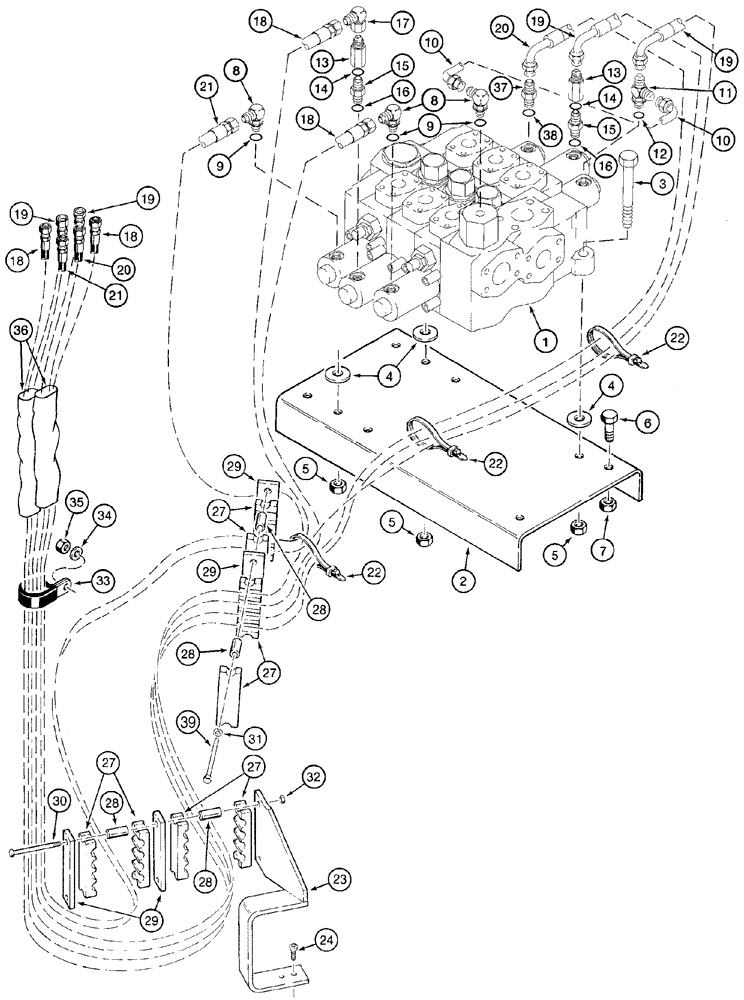

Запчасти Case 921C (08-34) - HYDRAULICS - LOADER CONTROL, REMOTE (08) - HYDRAULICS

Hose Grommet to Three Spool Valve

1шт.

1

301084A1

VALVE

See Figure 08-16

1шт.

2

307425A1

SUPPORT

1шт.

3

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

3шт.

4

895-15016

WASHER,M16 x 34 x 3

3шт.

5

832-10416

NUT,M16 x 2, Cl 8

3шт.

6

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

7

832-10416

NUT,M16 x 2, Cl 8

4шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Incl. 9

3шт.

10

314771A1

TUBE

Regeneration Line, Port 1A

1шт.

11

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 12

1шт.

L110143

VALVE

Loader Lift, Ports 2A and 2B, Incl. 13 - 16

2шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 16

1шт.

17

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

18

232863A1

HOSE ASSY.

3287mm (129-7/16 in), Pilot Control, Ports 1B and 2B

2шт.

19

232866A1

HOSE ASSY.

3957 mm (155-13/16 in), Pilot Control, Ports 1A and 2A

2шт.

20

232865A1

HOSE ASSY.

4200 mm (165-3/8 in), Port 3A

1шт.

21

232864A1

HOSE ASSY.

3613 mm (142-1/4 in), Port 3B

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.

23

107426A1

SUPPORT

1шт.

24

906034R1

HEX SOC SCREW,Flat Hd, CSK, M12 x 25mm, Cl 10.9

2шт.

27

L124271

FIXING BRACKET

8шт.

28

L126936

SPACER

8шт.

29

L124270

LARGE PLATE

PLATE, LARGE

4шт.

30

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

2шт.

31

892-11010

LOCK WASHER,M10

2шт.

32

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

33

515-25444

CLAMP,1 3/4", Insul, 7/16" Bolt

1шт.

35

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

36

S120426

TUBE

2шт.

37

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 38

1шт.

39

426-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

3/8 x 4-1/2; 8

2шт.

34

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

38

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
