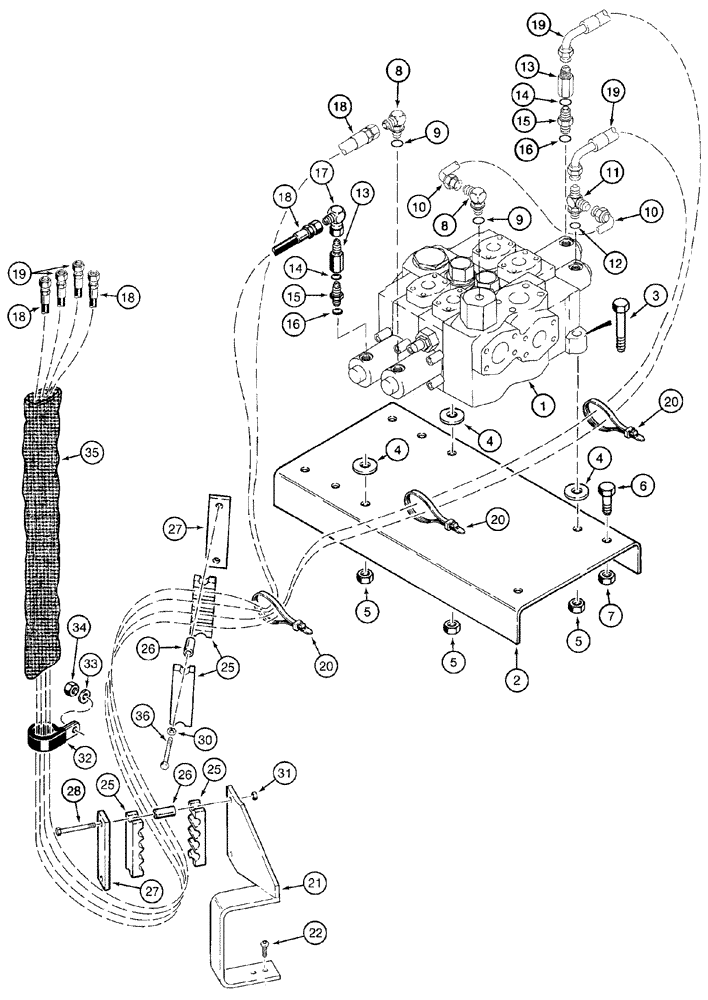

Запчасти Case 921C (08-29) - HYDRAULICS - LOADER CONTROL, REMOTE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
Hose Grommet to Two Spool Valve
1шт.
1
304604A1
VALVE
See Figure 08-15
1шт.
2
307425A1
SUPPORT
1шт.
3
828-16070
BOLT,Hex, M16 x 2 x 70mm, Cl 10.9
3шт.
4
895-15016
WASHER,M16 x 34 x 3
3шт.
6
627-16035
BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd
4шт.
8
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
9/16 fl x adj Or, Incl. 9
2шт.
10
314771A1
TUBE
Regeneration Line, Port 1A
1шт.
11
218-5243
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
Incl. 12
1шт.
L110143
VALVE
Loader Lift, Ports 2A and 2B, Incl. 13 - 16
2шт.
13
NSS
NOT SOLD SEPARAT
Housing
1шт.
15
218-5057
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
Incl. 16
1шт.
17
218-980
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw
1шт.
18
232863A1
HOSE ASSY.
3287mm (129-7/16 in), Pilot Control, Ports 1B and 2B
2шт.
19
232866A1
HOSE ASSY.
3957 mm (155-13/16 in), Pilot Control, Ports 1A and 2A
2шт.
20
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP 15 in
3шт.
21
107426A1
SUPPORT
1шт.
22
906034R1
HEX SOC SCREW,Flat Hd, CSK, M12 x 25mm, Cl 10.9
2шт.
25
L124271
FIXING BRACKET
4шт.
26
L126936
SPACER
4шт.
27
L124270
LARGE PLATE
PLATE, LARGE
2шт.
28
827-10070
BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9
2шт.
30
892-11010
LOCK WASHER,M10
2шт.
31
832-10410
NUT,M10 x 1.5, Cl 8
2шт.
32
515-25444
CLAMP,1 3/4", Insul, 7/16" Bolt
1шт.
34
832-10410
NUT,M10 x 1.5, Cl 8
1шт.
35
S120426
TUBE
1шт.
36
426-672
BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8
3/8 x 4-1/2; 8
2шт.
33
895-15010
WASHER,11mm ID x 24mm OD x 2mm Thk
1шт.
9
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
12
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
14
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
16
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 35
