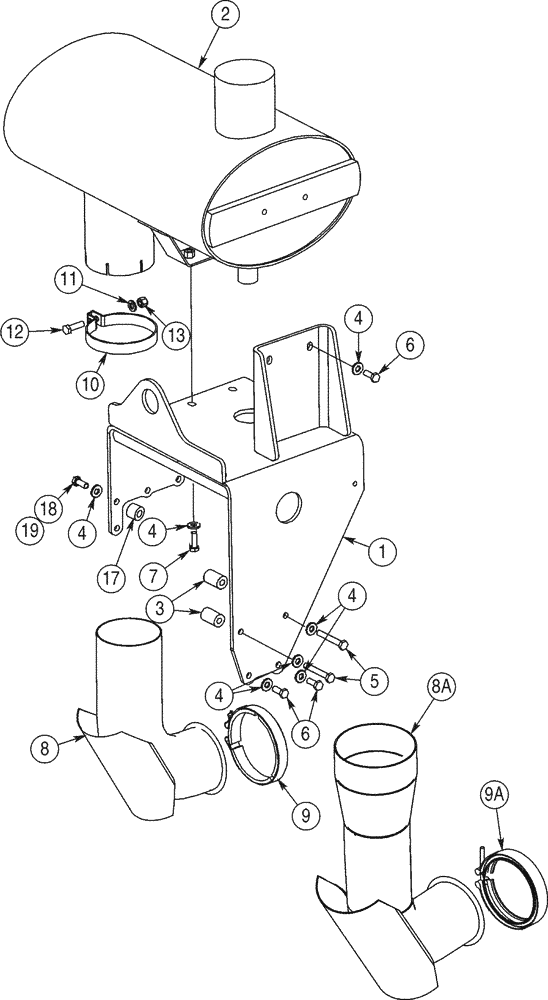

Запчасти Case 921C (02-11) - MUFFLER - EXHAUST SYSTEM (02) - ENGINE

All Models JEE0126216-

1шт.

1

417307A2

PLATE ASSY.

1шт.

2

417306A1

MUFFLER

1шт.

3

90-7181T1

SPACER

2шт.

4

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

12шт.

5

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

7

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

8

426594A2

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST Europe Only

1шт.

8a

436300A2

ELBOW

North America Only

1шт.

9

31-1316

MOUNTING CLIP

Europe Only

1шт.

9a

90-3606T1

CLAMP,120.65mm

North America Only

1шт.

10

650988C1

CLAMP,130mm

1шт.

11

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

12

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

14

429183A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

15

829-1412

NUT,M12, Cl 10.9

4шт.

16

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

17

107391A1

SPACER

North America Only

4шт.

18

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

North America Only

4шт.

19

627-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9, Full Thd

Europe Only

4шт.
