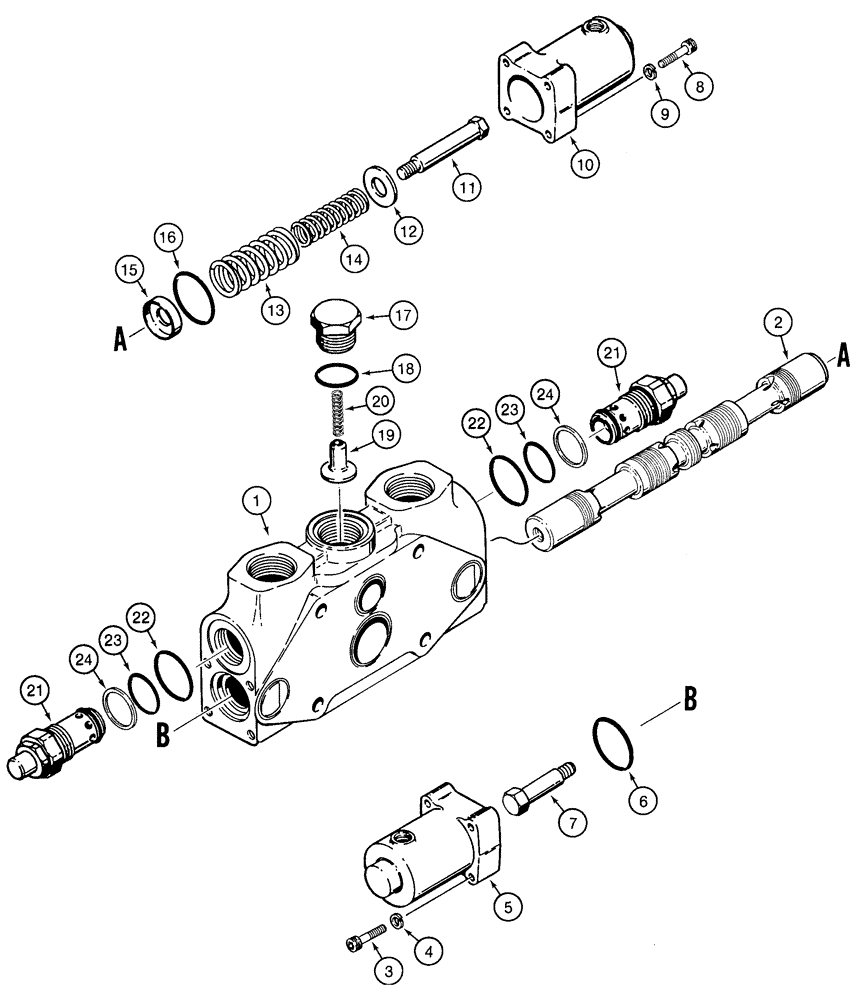

Запчасти Case 921C (08-21) - VALVE SECTION - LOADER AUXILIARY (08) - HYDRAULICS

336996A1

VALVE

Auxiliary, Incl. 1 - 24

1-2шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

461-32524

HEX SOC SCREW,1/4"-20 x 1 1/2"

4шт.

4

492-11025

LOCK WASHER,1/4"

4шт.

5

N9447

COVER

1шт.

6

238-5132

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1-3/4 ID x 3/32

1шт.

7

N9480

BOLT

1шт.

8

461-32524

HEX SOC SCREW,1/4"-20 x 1 1/2"

4шт.

9

492-11025

LOCK WASHER,1/4"

4шт.

10

N9447

COVER

1шт.

11

N9480

BOLT

1шт.

12

N9451

SPACER

1шт.

13

N9481

SPRING

Spool Positioner, Large

1шт.

14

N9482

SPRING

Spool Positioner, Small

1шт.

15

N9483

SPACER

1шт.

16

238-5132

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1-3/4 ID x 3/32

1шт.

17

N9455

PLUG

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

N9456

PIN

1шт.

20

D28840

SPRING

1шт.

21

337067A1

VALVE

Circuit Relief and Anticavitation, Incl. 22 - 24

2шт.

22

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

23

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

24

N9459

BACK-UP RING

1шт.
