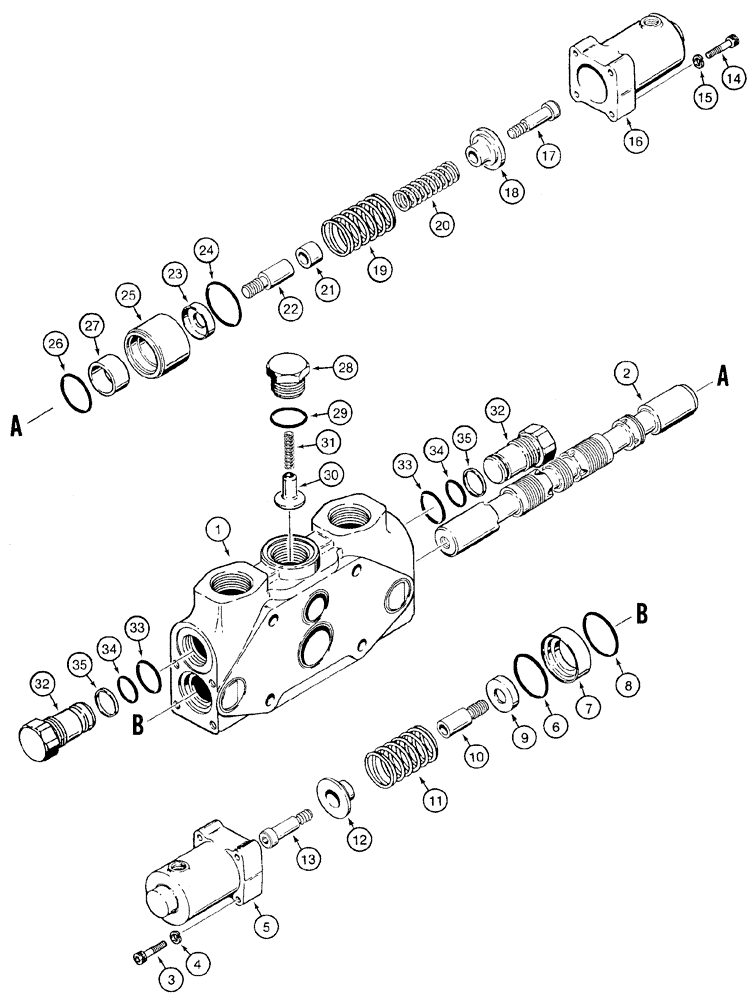

Запчасти Case 921C (08-20) - VALVE SECTION - LOADER LIFT (08) - HYDRAULICS

336995A1

VALVE SECTION

Loader Lift, Incl. 1 - 35

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

61-32536

HEX SOC SCREW,1/4"-20 x 2 1/4"

1/4 x 2-1/4

4шт.

4

492-11025

LOCK WASHER,1/4"

4шт.

5

N9447

COVER

1шт.

6

238-5132

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1-3/4 ID x 3/32

1шт.

7

104826A1

SPACER

1шт.

8

238-5128

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

9

N9443

SPACER

1шт.

10

S300266

EXTENSION

1шт.

11

S300270

SPRING

1шт.

12

S300268

SEAT

1шт.

13

S300267

SCREW

1шт.

14

61-32548

HEX SOC SCREW,1/4"-20 x 3"

1/4 x 3

4шт.

15

492-11025

LOCK WASHER,1/4"

4шт.

16

N9447

COVER

1шт.

17

S300267

SCREW

1шт.

18

S300268

SEAT

1шт.

19

S300270

SPRING

1шт.

20

S300269

SPRING

1шт.

21

S300272

SPACER

1шт.

22

S300266

EXTENSION

1шт.

23

N9443

SPACER

1шт.

24

238-5132

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1-3/4 ID x 3/32

1шт.

25

104825A1

SPACER

1шт.

26

238-5128

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

27

N9449

SLEEVE

1шт.

28

N9455

PLUG

1шт.

29

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

30

N9456

PIN

1шт.

31

D28840

SPRING

1шт.

N9478

PLUG

Incl. 32 - 35

2шт.

32

NSS

NOT SOLD SEPARAT

Plug

1шт.

33

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

34

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

35

N9459

BACK-UP RING

1шт.
