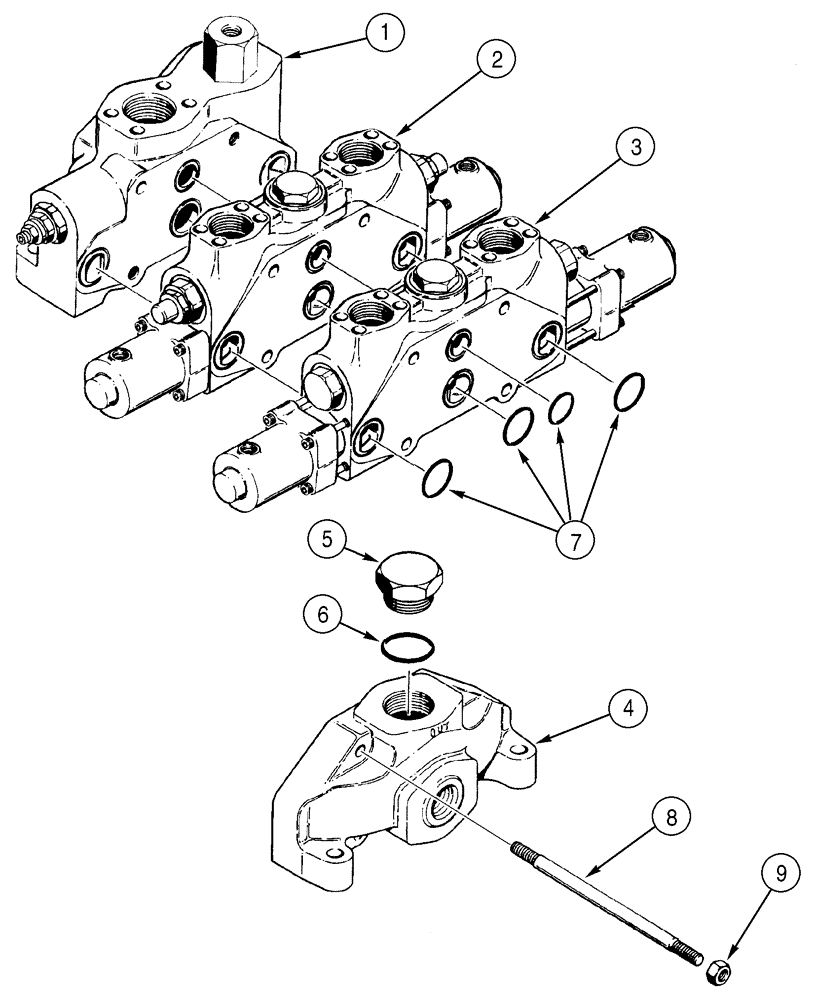

Запчасти Case 921C (08-15) - VALVE ASSY - LOADER CONTROL, TWO SPOOL (08) - HYDRAULICS

304604A1

VALVE

Loader Control, Two Spool, Incl. 1 - 9

1шт.

1

336993A1

COVER ASSY

Inlet And Outlet, See Figure 08-18

1шт.

2

336994A1

VALVE, CONTROL

Bucket, See Figure 08-19

1шт.

3

336995A1

VALVE SECTION

Lift, See Figure 08-20

1шт.

4

336997A1

COVER ASSY

End Cover, Incl. 5, 6

1шт.

5

218-5162

PLUG,Hex Hd, 1 7/8"-12 ORB

1-7/8 Or, Incl. 6

2шт.

6

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

7

337007A1

SEAL KIT

3шт.

8

N9486

BOLT

4шт.

9

425-108

NUT,1/2" - 13, Gr 5

4шт.
